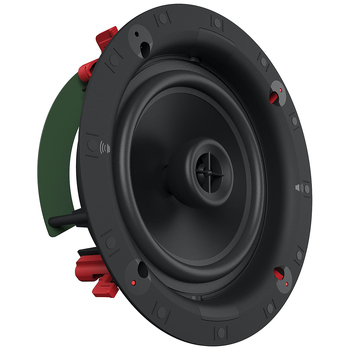

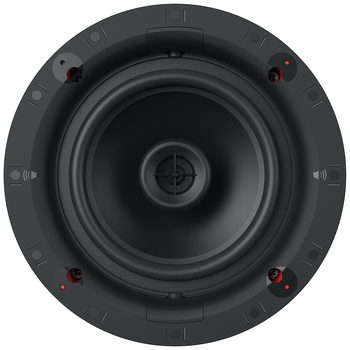

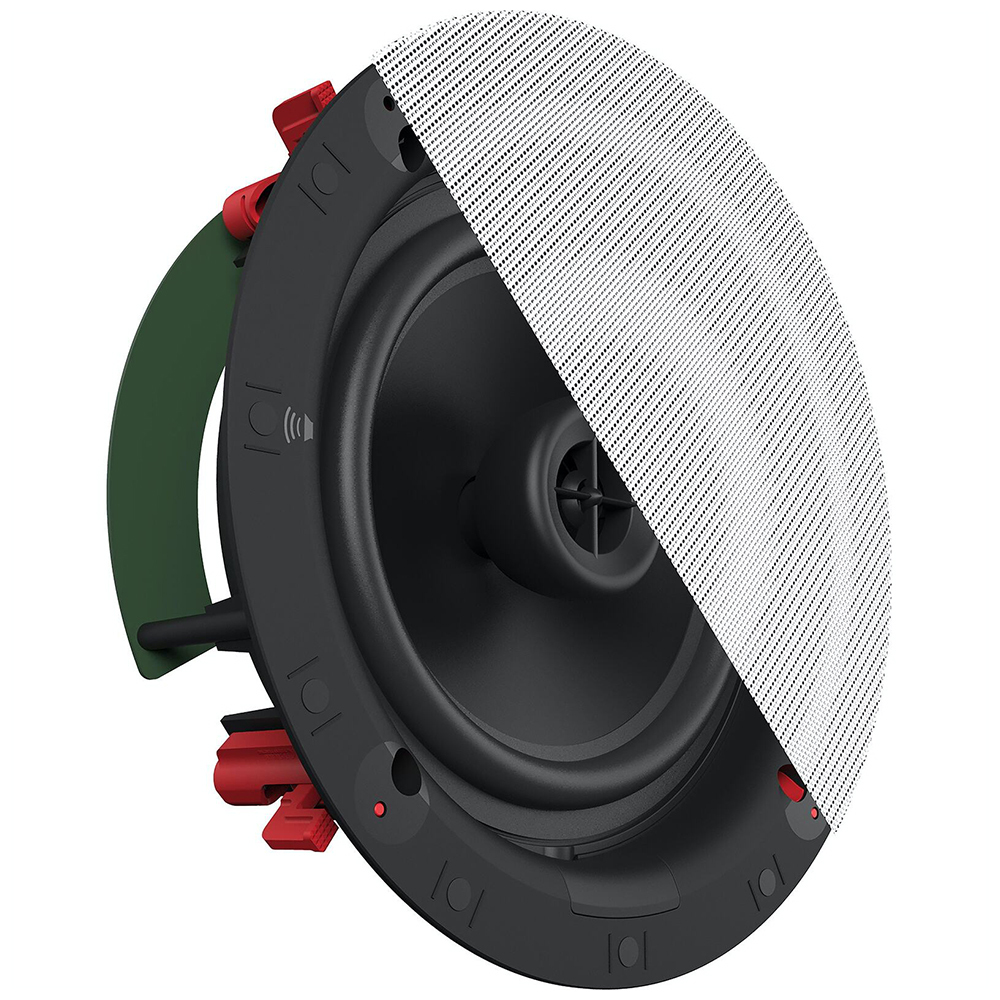

Klipsch DS-180CDT 8" In-Ceiling Speaker w/ Pivoting Woofer & Tweeter White

HORN-LOADED PERFORMANCE
Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series provides true Klipsch power and performance. With an 8” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-180CDT brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.

PATENT-PENDING SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up to 15°, helping to ensure on-axis frequency response at almost any listening position.

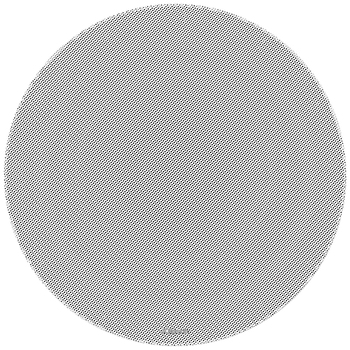

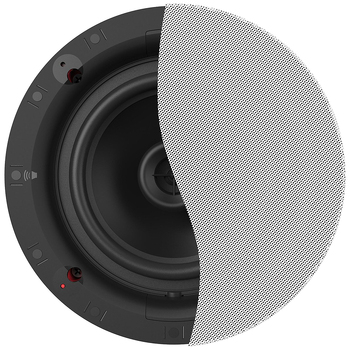

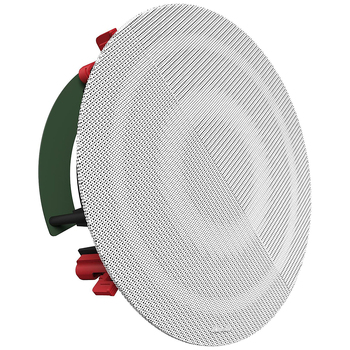

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

FREQUENCY RANGE: 73Hz - 20kHz +/- 3dB
HIGH FREQUENCY DRIVER: 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
LOW FREQUENCY DRIVER: 8" (20.32cm) Polypropylene Woofer
SENSITIVITY: 94 dB @ 2.83V / 1m
COVERAGE ANGLE: 100°
POWER HANDLING: 50W RMS / 200W RMS
IMPEDANCE: 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE: ABS/Infinite Baffle
FINISH: Black Baffle/Frame, White Paintable Grille
PRODUCT WEIGHT: 7.4 lbs (3.36kg)
INCLUDED IN BOX: Flat Paintable Magnetic Grille

Speaker Diameter: 10.88" (27.64cm)
Cut Out Diameter: 9.57" (24.31cm)
Mounting Depth: 4.66" (11.84cm)

Includes:

• 1x Klipsch DS-180CDT 8" In-Ceiling Speaker w/ Pivoting Woofer & Tweeter
