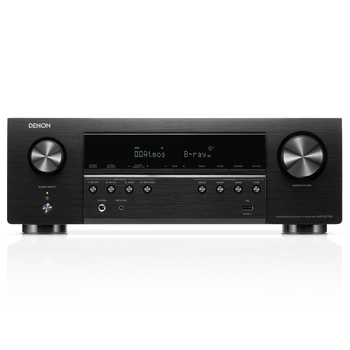

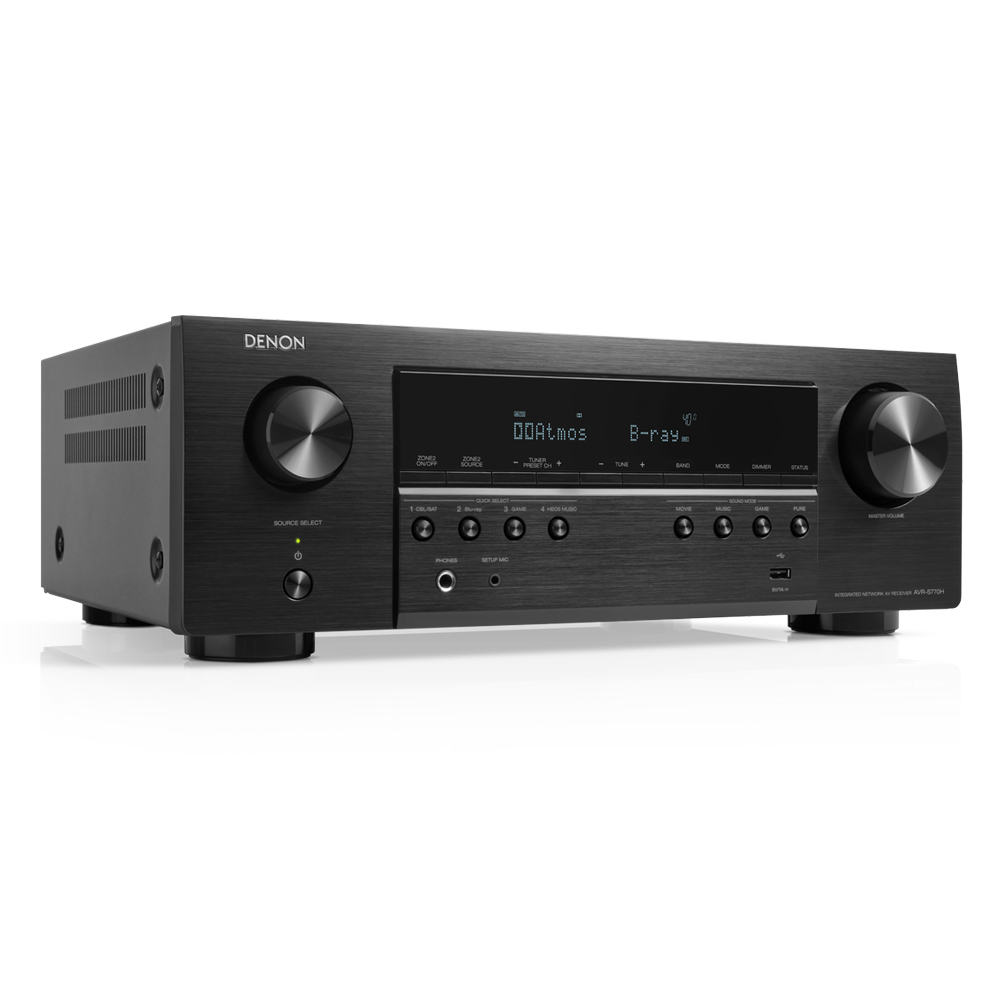

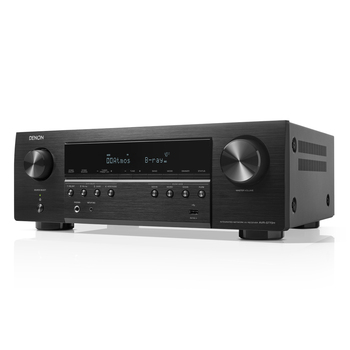

Denon AV Receiver AVR-S 770H 7.2 Channel 8K AV Home Theatre Receiver Black

Denon AV Receiver AVR-S 770H 7.2 Channel 8K AV Home Theatre Receiver Black

Enjoy incredible 8K video and 3D audio from the AVR-S770H. Fill small to mid-size rooms with sound from a 7.2 or 5.2.2 surround sound set up with Dolby Atmos and DTS:X. And with HEOS Built-in, you can stream and share music to any HEOS-enabled speaker throughout your home.
- 7.2 channels
- 3D audio from Dolby Atmos and DTS:X
- 8K HDMI
- HEOS Built-in
- Wi-Fi and Bluetooth
- Audyssey room correction

Technical Specifications:
Multichannel Surround:
DTS HD Master / DTS:X / DTS:X Pro - Yes / Yes / No
DTS Neo:6 / DTS Neural:X - No / Yes
DTS Virtual:X - Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music - Yes / Yes / Yes / Yes
Dolby ProLogic Il / Dolby Surround - No / Yes
Multichannel Stereo - Yes
Dialog Enhancer - Yes
Max. number of processing (preamp) channels - 7.1

Sound Enhancements:
Discrete Power Amplifier - 7
Audyssey - MultEQ
Audyssey Dynamic EQ / Dynamic Volume - Yes / Yes
Compressed Audio Restorer - Yes

Network:
Media Server - Yes
HEOS Wireless Multi-Room Technology - Yes
Bluetooth Re-Transmit for Bluetooth Headphones - Yes (with volume control)
Alexa / Google Voice Assistant / Apple HomePod - Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC - Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV - Yes / Yes / Yes
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 - Yes / Yes / Yes
DSD Audio Streaming - Yes (2.8/5.6MHz)
FLAC HD 192/24 - Yes
WAV 192/24 - Yes
ALAC 192/24 - Yes
Gapless playback - Yes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio Streaming - Yes (AirPlay2)
Internet Radio - Yes (TuneIn)
Spotify - Yes (connect)
Pandora - Yes
SiriusXM - Yes
Other Streaming Services - Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested - Yes
HEOS App Control - Yes
Compatible with Remote APP for Smart Phones - Denon AVR Remote
Compatible with Remote APP for Tablets - Android / iOS / Amazon Kindle
Ethernet Ports - Yes
Wi-Fi - Yes
Bluetooth - Yes

HDMI:
HDMI Inputs: Back/Front - 6 (3x 8K) / Yes
HDMI Outputs: Main/Zone - 1 / No
HDMI max Resolution (8k / 4k) - 8k/60 - 4k/120
HDMI to HDMI Scaling - up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC - Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR /HLG - Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR - Yes / No / Yes / Yes
HDMI Pass-Though in Standby Mode - Yes

Multiroom / CI:
HEOS Multiroom integrated - Yes
TV Sound grouping - Yes
Multiroom zones - 2
Main room multichannel audio - Zone stereo downmix - Yes
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog - Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out - Yes / No
Webbrowser Setup - Yes
IP Control / RS232 Control / Web Control / App Control - Yes / No / Yes / Yes

Others:
Voice Control - Works with Amazon Alexa - Yes
Voice Control - Google Assistant / Apple Siri - Yes
Auto speaker setup by microphone - Audyssey MultEQ
Front Display - 1 line FLD
Graphic User Interface - GUI - High Definition 1080p
GUI languages - 3
Setup Assistant - Yes
Quick Select Plus / Quick Select - Yes / No
Firmware Update by Network / USB - Yes / Yes
Variable Crossover - Yes
Optimized Bass Redirection - Yes
HDMI Diagnostic Mode - Yes
ECO Mode - Yes
Auto Power off - Yes
Sleep Timer - Yes

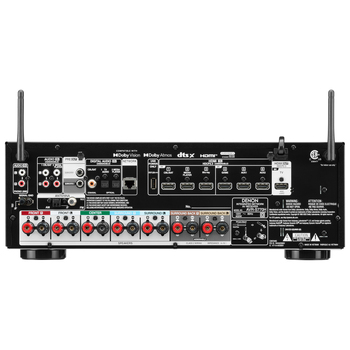

Inputs/Outputs:
HDMI In/Out - 6 / 1
Analog In/Out - 2 / No
Phono (MM) In - Yes
Digital in: Optical/Coaxial - 2 / 1
Multichannel Pre-Out - Yes (0.2)
Subwoofer Out - 2
Speaker Terminal: Gold-Plated Screw / Regular Screw - No / Yes
Number of Speaker Terminals - 7
Multi-Room Speaker Terminal - assignable
USB Audio Input Front - Yes
USB Power 5V/1.5A Rear - Yes

Specifications:
Number of Power Amps - 7
Power Output (8 ohm, 20 Hz–20 kHz, 0.08% 2ch Drive) - 75 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) - 110 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) - 165 W
General:
Available colors: Black / Premium Silver - Yes / No
System Remote Control - RC-1257
Power Consumption in W - 400
Power Consumption No-Sound (ECO on / off) in W - 29 W / 39 W
Standby Consumption in W - 0.1
CEC Standby Consumption in W - 0.5
Network Standby Consumption in W - Less than 2.0
Maximum Dimensions - 43 x 34 x 16 cm

ERAC Power Supply Certification No:  SAA-212856-EA AU/NZ Style Plug

Dimensions Approx:
43 x 34 x 16 cm

Includes:
1 x Dennon AVR-S 770H AV Receiver
