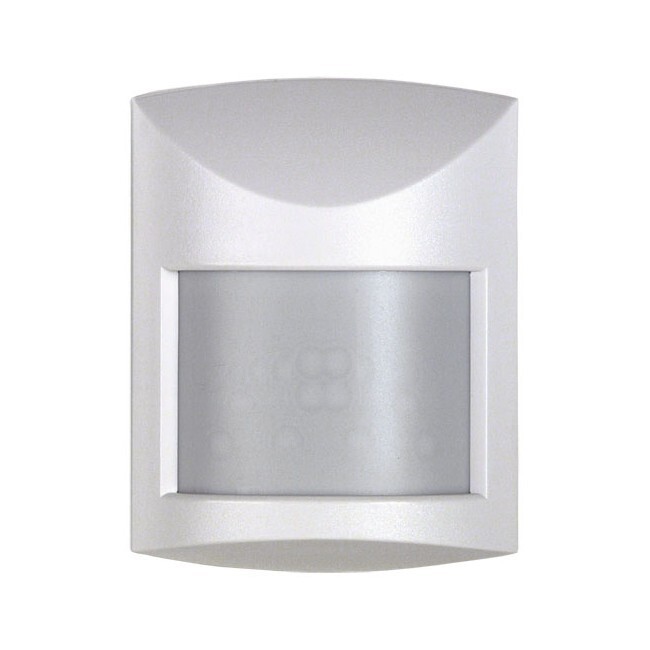

QUANTUM-Q QUAD ELEMENT PIR NESS

The Ness Quantum -Q is the most popular PIR ever produced by Ness Corporation. Now boasting a QUAD Element Pyro Sensor it has a better detection rate and higher noise immunity for lower false alarms.
Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15-metre wide-angle coverage, selectable Pulse Count and Sensitivity adjustments providing the flexibility to use the Quantum-Q in most environments.

Installed in rooms or in hallways, Ness Quantum-Q protects you by detecting intruders body temperature using infra-red technology. It offers quality, performance and reliability at the right price.

Very discrete in size, designed for all types of interiors with a detection range of 15m.

• Quad element pyro sensor

• 15m x 15m wide-angle coverage

• Standard and Pet Aware models (Pet aware model refer Ness Part No. 106-259)

• Adjustable Pulse Count

• Adjustable Range

• High R.F. and E.S.D. immunity

• High white light immunity

• High quality patented Fresnel lens

• Front cover tamper protection

• Totally silent solid state relay with high immunity to magnetic fields

• Optional mounting bracket available Ness Part No. 100-243

• 9~15VDC Operation
