GIGA POE++ INJECTOR 60W 802.3BT

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

GIGA POE++ INJECTOR 60W 802.3BT

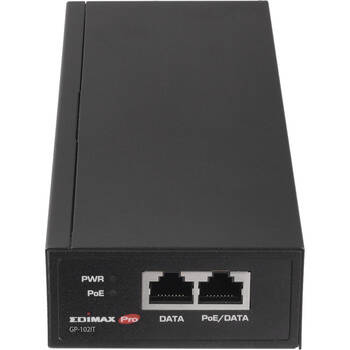

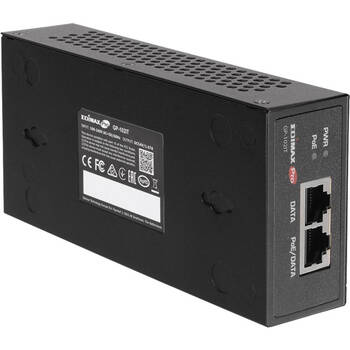

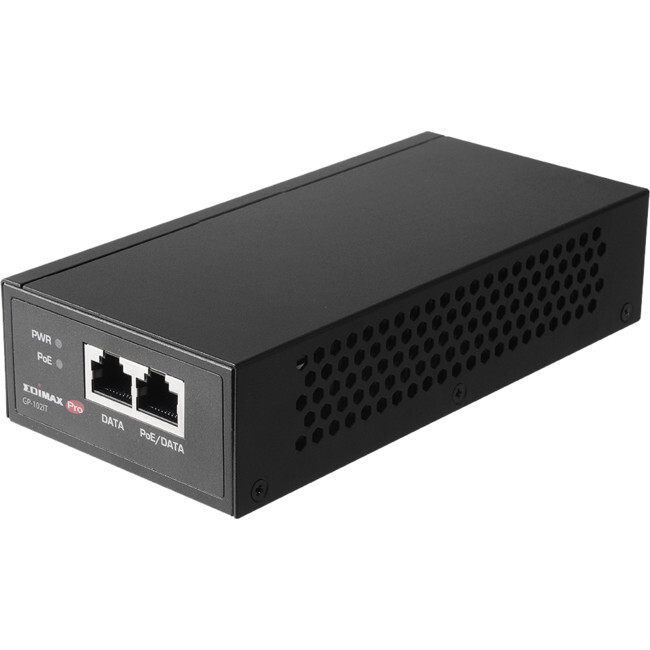

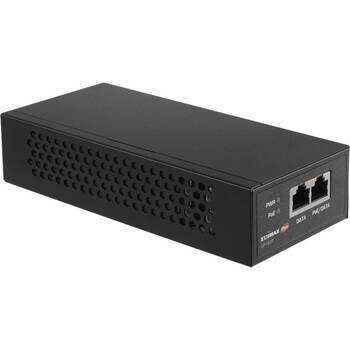

IEEE 802.3bt Gigabit 60W PoE++ Injector
Cost Efficiency with PoE++ Supported up to 60W Adding the capability of IEEE 802.3af/at/bt Power over Ethernet to a non-PoE Ethernet switch or router to supply the transmission both power up to 60W and data at the same time to the PoE-enabled devices where power outlet is unavailable.

Easy Plug & Play, Flexible Wall-Mount Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration required.

Reliable Power Supply Featuring PoE short circuit protection and over circuit protection to safeguard network devices and protect against damage.

PoE Application Scenario With the PoE++ Injector, the data and power are transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling.

IP Surveillance IP surveillance camera is now ubiquitous PoE supported with only one LAN cable which enables fast deployment and easy repositioning for home, office
Wi-Fi Coverage Access points, installed on a wall or ceiling where AC outlets are unreachable, are commonly PoE compatible to allow flexible deployment for best Wi-Fi coverage.
VoIP Conference For the VoIP phones, there's no need to support desktop phones with additional power supply as power is transmitted along with data through PoE technology.
Other PoE Devices Other PoE-enabled devices such as RFID readers, access controls, thin clients, alarms or sensors, benefits with easy and cost saving installation even when it is away from AC outlets.
Power Your PoE Devices Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 60W.

POE comparison

POE 80233af, up to 15.4W. 802.11n access point, Biometric access point, IP phone, Thin client
POE 802.3at, upt o 30W. 802.11n Hi power Access point,Alarm System, PTZ/speed dome cam, Video IP phone, RFID reader
POE 802.3bt, up to 60W. 802.11ac/ax access point, Access control, information kiosk, Laptop computer, Nurse call, Point of sales reader PTZ/Speed dome cameras
APPLICATION DIAGRAM The Edimax AI-2004W is embedded with the hardware security chip, not only does it provide high-security protection on data transmissions but also solve security risk from malware attacks from viruses or malicious software over the IoT connection.

(GP102IT)

This item comes with a 12 months warranty

No additional cables, software setup or configuration required.
Model # GP102IT
Barcode # 4717964703682
Brand EDIMAX
Shipping Weight 0.3000kg
Shipping Width 0.070m
Shipping Height 0.040m
Shipping Length 0.150m
Shipping Cubic 0.000405000m3
Type PoE Injector
