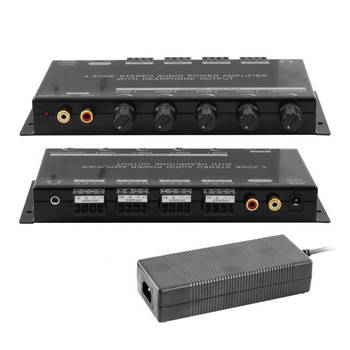

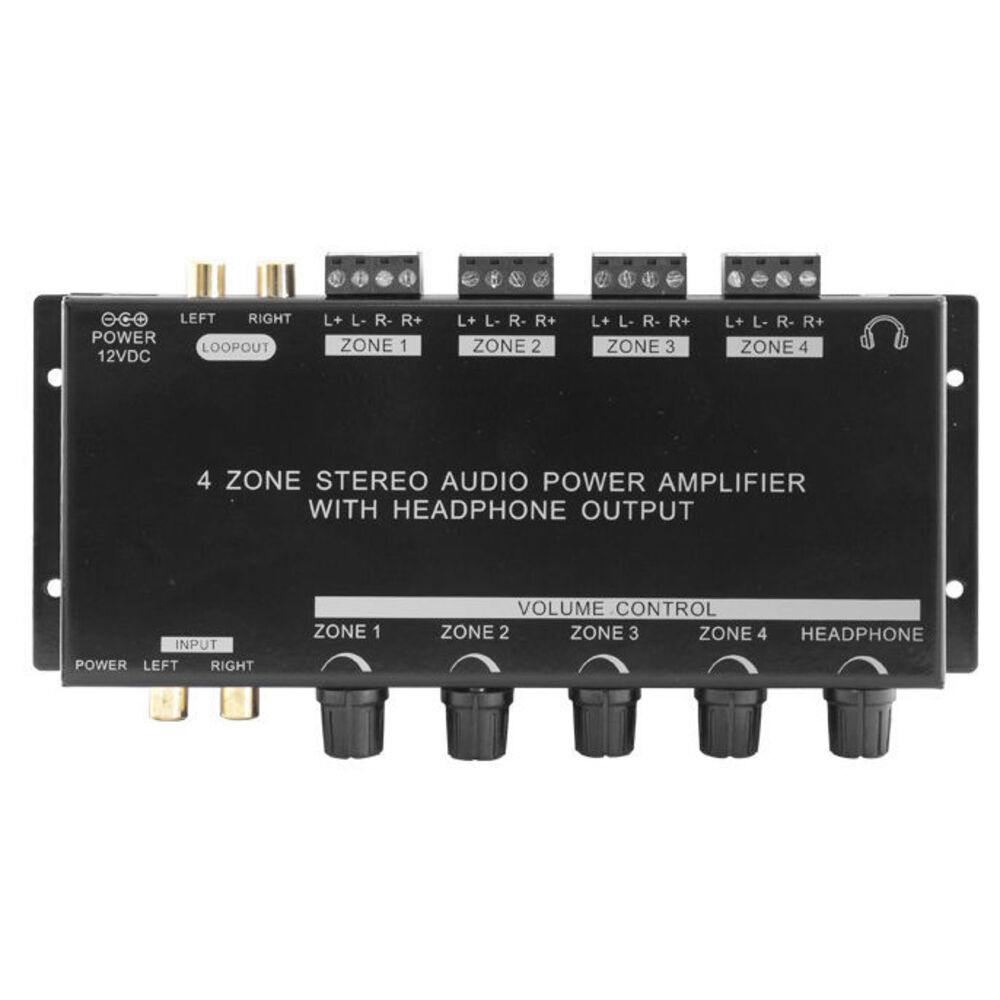

Pro2 Pro1300 4 Zone Stereo Audio Power Amplifier With Headphone Output

Speaker Audio Power Amplifier (x4)

• Amplifier Type:Stereo D-Class
• Output power:15W(RMS) per channel
• THD+N :0.06 % (@ RL=8 ohm, f = 1 kHz)
• Minimum Load Resistance :4 ohm
• Includes Speaker Protection circuit.
• Earphone Audio Power Amplifier
• Output power:105mW(RMS) per channel
• THD+N :0.05 % (@ RL=16 ohm, f = 1 kHz)
• Minimum Load Resistance :16 ohm
• Power & Dimensions
• Power Consumed: 9A Max
• Power Source: DC 12 Volts (POWER SUPPLY INCLUDED)
• Size (LxWxH): 205 mm x 108 mm x 26 mm
• Net Weight (Unit only): 0.48 Kg

• Courtesy of a whooping 108W external power supply and the efficacy of digital amplification, this tiny unit delivers extraordinary power. It will drive 4 pairs of speakers at the same time without breaking a sweat!

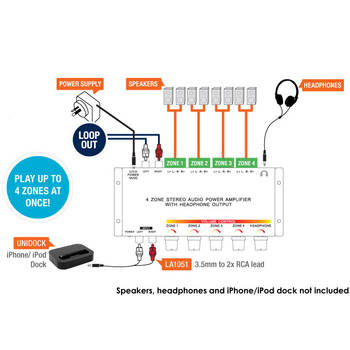

• Connect up to 4 speakers to up to 4 zones effortlessly
