4 Port HDMI Splitter - 4K 60Hz - HDR - HDMI 2.0

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

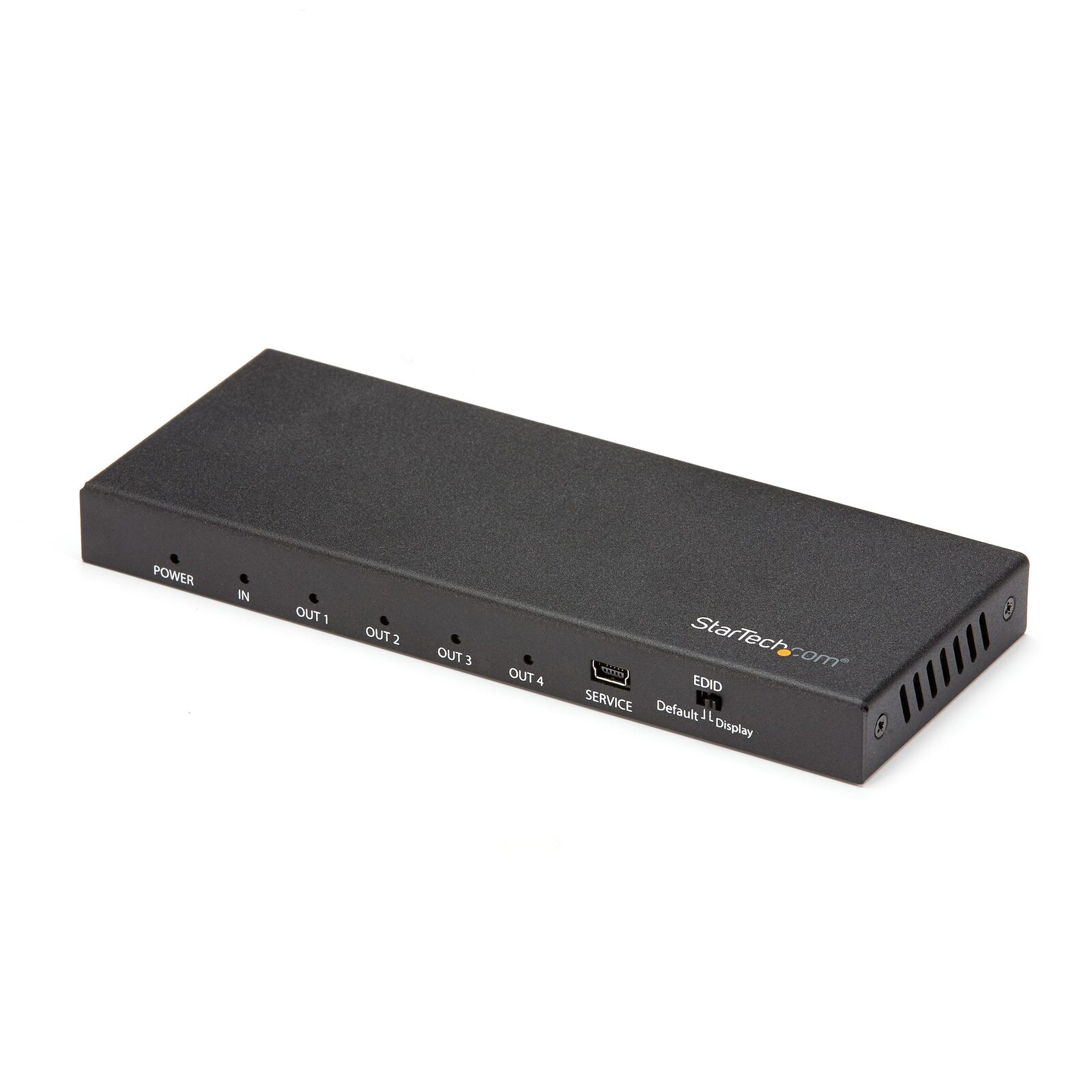

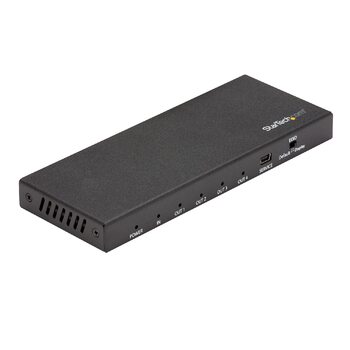

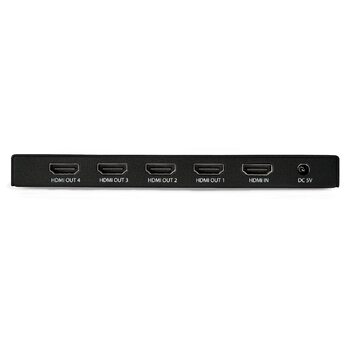

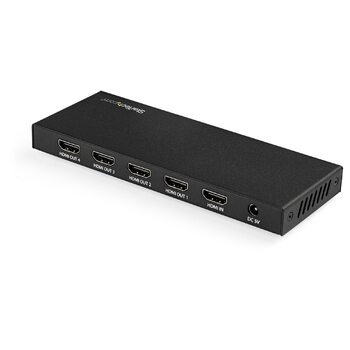

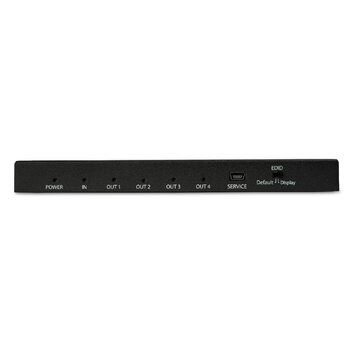

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

True 4K at 60Hz and HDR

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

Widely Compatible

The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

Easy Installation

For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

(ST124HD202)

Standard Consumer Warranty
True 4K at 60Hz and HDR

Packaging Information
Package Width: 14.8 cm [5.8 in]
Shipping (Package) Weight: 0.5 kg [1.1 lb]

Performance
Audio Specifications: 7.1 surround sound
Maximum Cable Length: 5 m [16.4 ft]
Maximum Data Transfer Rate: 18Gbps
Maximum Digital Resolutions: 4096x2160 @ 60Hz
3840x2160 (4K) @ 60Hz
2560x1600
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Video Revision: HDMI 2.0
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Steel
Product Height: 6.5 cm [2.6 in]
Product Length: 16.5 cm [6.5 in]
Product Width: 64 mm [2.5 in]
Weight of Product: 261 g [9.2 oz]

Power
Input Current: 0.2
Input Voltage: 100 - 240 AC
Output Current: 1 A
Output Voltage: 5 DC
Power Consumption (In Watts): 5

Prominence
Description CDW 75 - 1st Line: StarTech.com 4 Port HDMI Splitter - 4K 60Hz - 1x4 Way HDMI 2.0 Splitter

What's in the Box
Included in Package: HDMI splitter : quick-start guide : universal power adapter (NA, EU, UK, ANZ)

Packaging Information
Package Length: 21.2 cm [8.3 in]
Package Height: 55 mm [2.2 in]

Indicators
LED Indicators: Power LED : Output LEDs : Input LED

Hardware
Ports: 4
Industry Standards: HDMI 2.0
AV Output: HDMI
AV Input: HDMI
Audio: Yes

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 20~90 % RH (non-condensing)

Connector(s)
Connector B: HDMI (19 pin) Output Female
Connector A: HDMI (19 pin) Input Female

Model # ST124HD202
Barcode # 065030880398
Brand STAR TECH
Shipping Weight 0.5100kg
Shipping Width 0.210m
Shipping Height 0.060m
Shipping Length 0.150m
Shipping Cubic 0.001890000m3
Type Splitters
