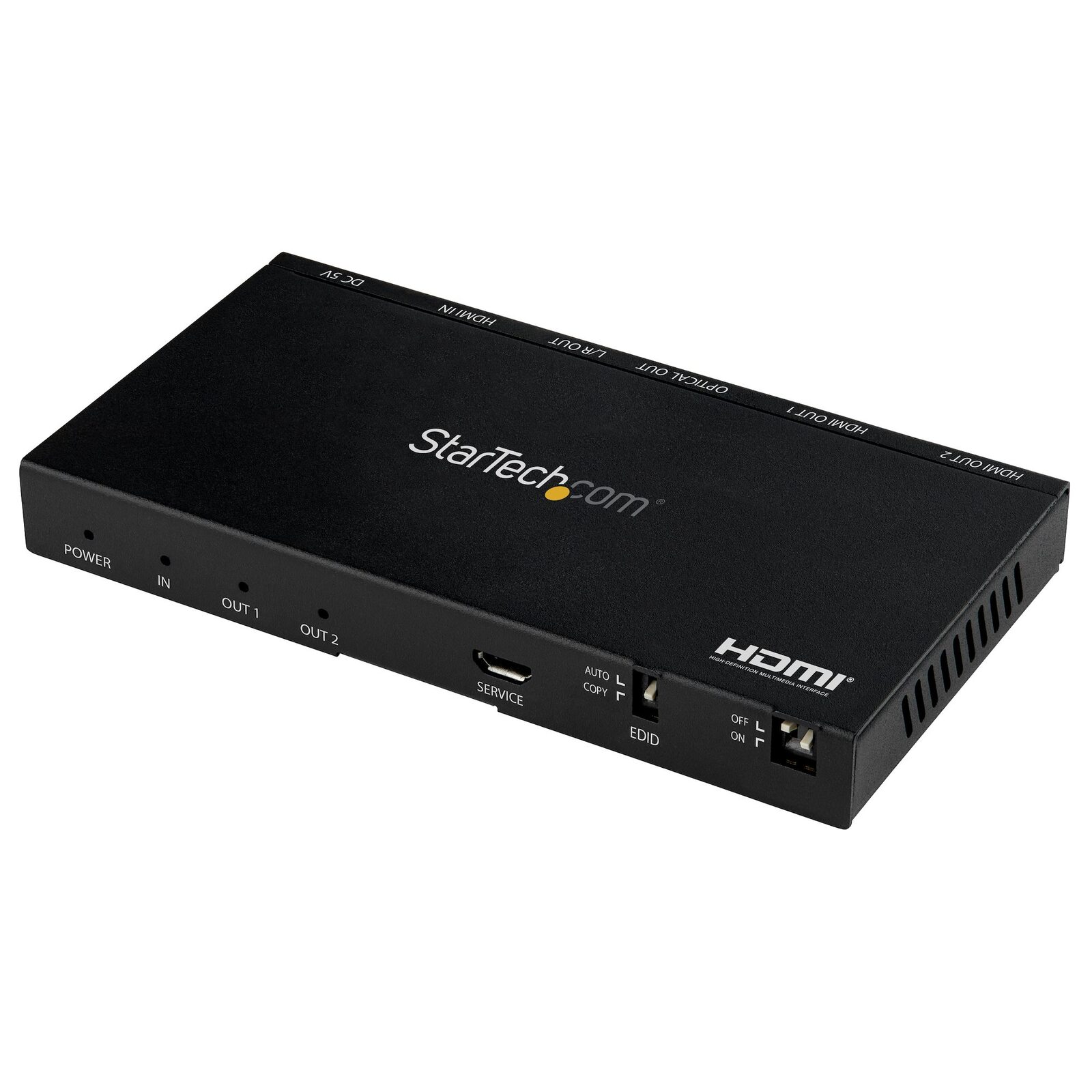

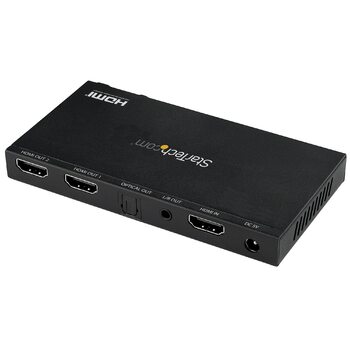

HDMI Splitter - 2-Port - 4K 60Hz with Built-In Scaler

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

This 2-port HDMI splitter lets you connect your HDMI video source to two HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports True 4K at 60Hz

This 2 way HDMI splitter offers full support for your HDMI 2.0b equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color.

Widely Compatible

The HDMI 2.0 splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz, 1080p and 720p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application. With the built-in scaling function, the HDMI 1 in 2 out splitter can output to two displays at different resolutions simultaneously.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

(ST122HD20S)

Standard Consumer Warranty
This 2 wayHDMIsplitteroffers full support for your HDMI 2.0b equipment, including true 4K resolution at 60Hz

Packaging Information
Package Height: 6.9 cm [2.7 in]
Package Length: 20.2 cm [8 in]
Package Width: 11.4 cm [4.5 in]
Shipping (Package) Weight: 392 g [13.8 oz]

Performance
Audio Specifications: 7.1 surround sound
Maximum Cable Length: 5 m [16.4 ft]
Maximum Data Transfer Rate: 18 Gbps
Maximum Digital Resolutions: 3840x2160 (4K) @ 60Hz
3840x2160 (4K) @ 30Hz
1920x1080 (1080p)
1280x720 (720p)
Video Revision: HDMI 2.0b
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Steel
Product Height: 1.1 cm [0.4 in]
Product Length: 12 cm [4.7 in]
Product Width: 6.3 cm [2.5 in]
Weight of Product: 170 g [6 oz]

Power
Input Voltage: 100 - 240 AC
Output Current: 1A
Output Voltage: 5V DC
Power Consumption (In Watts): 5W
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 2-Port HDMI Splitter (1x2) - 4K 60Hz Scaler / Audio Extractor

What's in the Box
Included in Package: HDMI video splitter : Instruction Manual : Universal Power Adapter (NA, EU, UK, ANZ)

Indicators

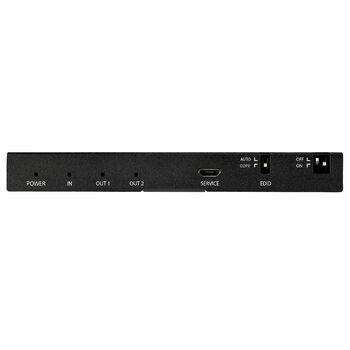

LED Indicators: Power LED : Output LEDs : Input LED

Hardware
Ports: 2
Industry Standards: HDMI 2.0b
AV Output: HDMI - 2.0
AV Input: HDMI - 2.0
Audio: Yes

Environmental
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Humidity: 20-90% RH

Connector(s)

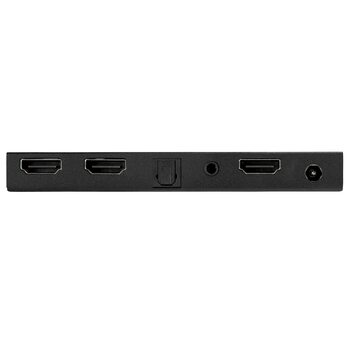

Connector B: Toslink (SPDIF, Optical) Output Female: HDMI (19 pin) Output Female: 3.5 mm Mini-Jack (3 Position) Output Female
Connector A: HDMI (19 pin) Input Female

Model # ST122HD20S
Barcode # 065030883573
Brand STAR TECH
Shipping Weight 0.3900kg
Shipping Width 0.200m
Shipping Height 0.070m
Shipping Length 0.110m
Shipping Cubic 0.001540000m3
Type Splitters
