HDMI Over IP Video Extender Kit - UHD 4K HDMI Extender

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

This 4K HDMI® over IP receiver works with the 4K HDMI over IP Extender Kit (sold separately) and lets you extend a 4K HDMI signal, as well as RS-232 peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI signal to multiple locations, each with 4K support, and combine your remote displays to create a video wall.

The IP receiver also features RS-232 extension which enables you to add a remote serial operated device at your video source or each remote display. This HDMI over IP extender is the perfect solution for combining a serial-operated touchscreen with your display or video wall, to create interactive digital signage presentations.

Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension
Astonishing picture quality over IP with support for 4K at 30Hz resolution
Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser)

(ST12MHDLAN4K)

Standard Consumer Warranty
The IP receiver also features RS-232 extension which enables you to add a remote serial operated device at your video source or each remote display

Hardware
Ports: 1
Rack-Mountable: No

Indicators
LED Indicators: Link OK / POWER - Receiver : Link OK / POWER - Transmitter : Reset - Receiver : Reset - Transmitter

Packaging Information
Package Height: 76 mm [3 in]
Package Length: 37 cm [14.6 in]
Package Width: 23.5 cm [9.3 in]
Shipping (Package) Weight: 2.3 kg [5.1 lb]

Performance
Audio Specifications: Stereo Sound
Max Distance: 100 m / 330 ft
Maximum Digital Resolutions: 4K @ 30Hz
Supported Resolutions: 3840x2160 (4K) @ 30Hz
2560x1600
1920x1200 @ 60Hz
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Aluminum
Product Height: 3 cm [1.2 in]
Product Length: 13 cm [5.1 in]
Product Width: 11.7 cm [4.6 in]
Weight of Product: 592 g [20.9 oz]

Power
Center Tip Polarity: Positive
Input Current: 0.6 A
Input Voltage: 100 - 240 AC
Output Current: 1.5 A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 18
Power Source: AC Adapter Included

Special Notes / Requirements
Note: Bandwidth requirement at 4k 30hz resolution is between 480Mbps and 850Mbps (per transmitter and receiver pair) : Latency at 4K 30hz resolution is 200ms between transmitter and receiver : The ST12MHDLAN4K will only work with ST12MHDLAN4R receivers

What's in the Box
Included in Package: CAT5e cables

Hardware
Daisy-Chain: Yes
Cabling: Cat 5e UTP or better
AV Input: HDMI
Audio: Yes

Environmental
Storage Temperature: -10°C to 60°C (14°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0% - 80 %

Connector(s)

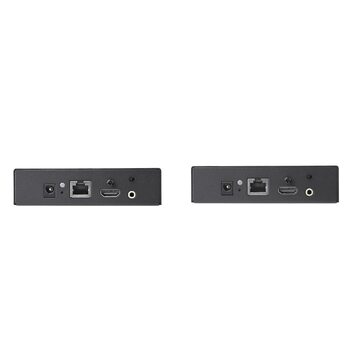

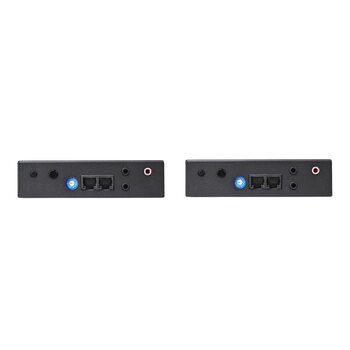

Connector B: RJ-45 Female : RJ-11 Female: HDMI (19 pin) Output Female : 3.5 mm Mini-Jack (3 Position) Female
Connector A: RJ-45 Female : RJ-11 Female : HDMI (19 pin) Input Female : 3.5 mm Mini-Jack (3 Position) Female

What's in the Box

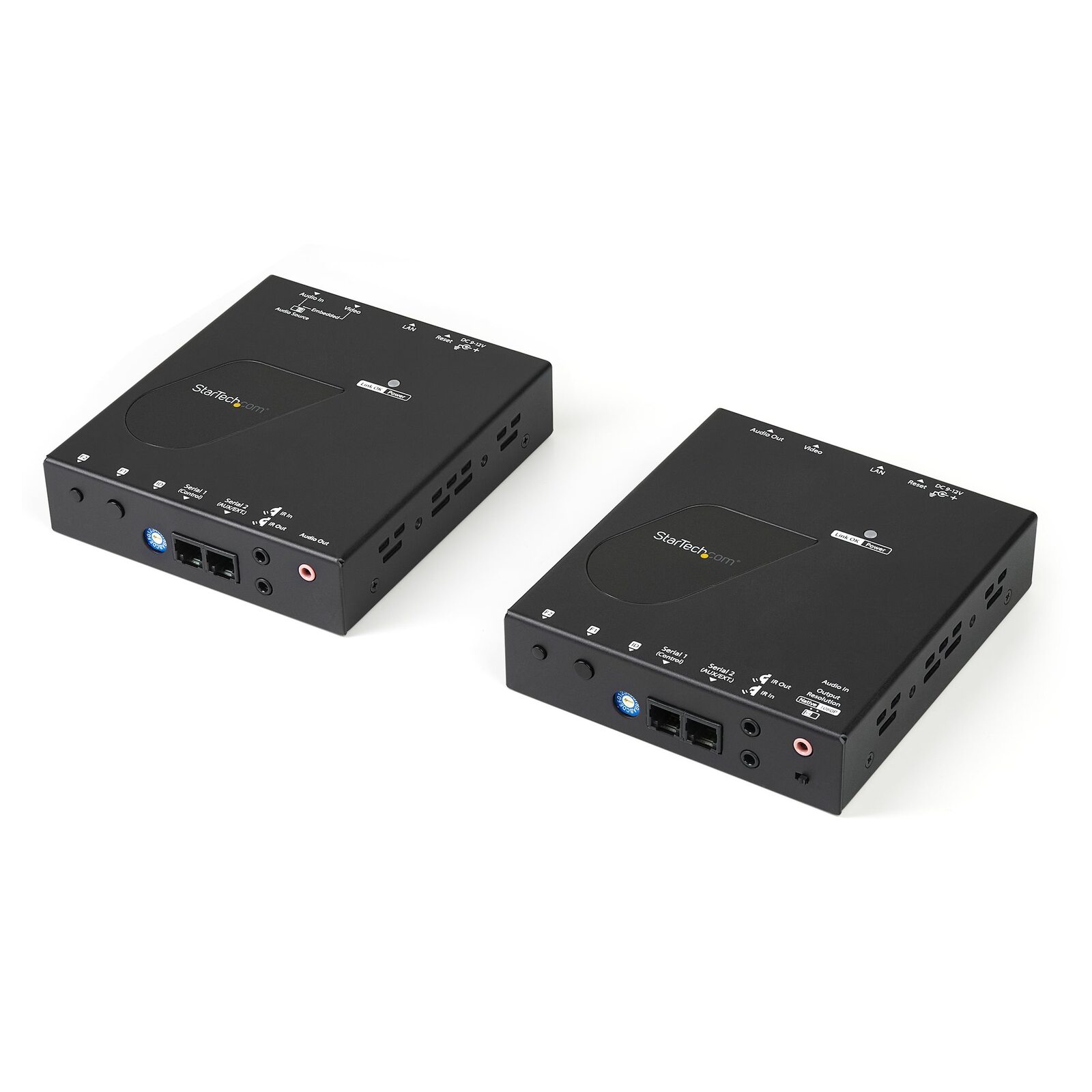

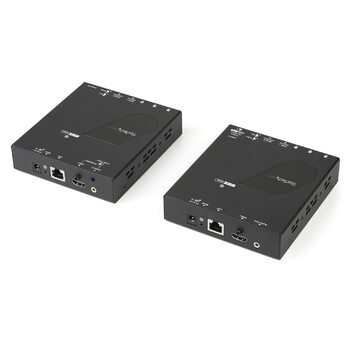

Included in Package: HDMI over IP receiver : HDMI over IP transmitter : mounting brackets : plastic screwdriver : quick-start guide : RJ11 cables : RJ11 to RS232 adapters : universal power adapters (NA, EU, UK, ANZ)

Model # ST12MHDLAN4K
Barcode # 065030868372
Brand STAR TECH
Shipping Weight 2.3200kg
Shipping Width 0.370m
Shipping Height 0.080m
Shipping Length 0.240m
Shipping Cubic 0.007104000m3
Type HDMI Extender
