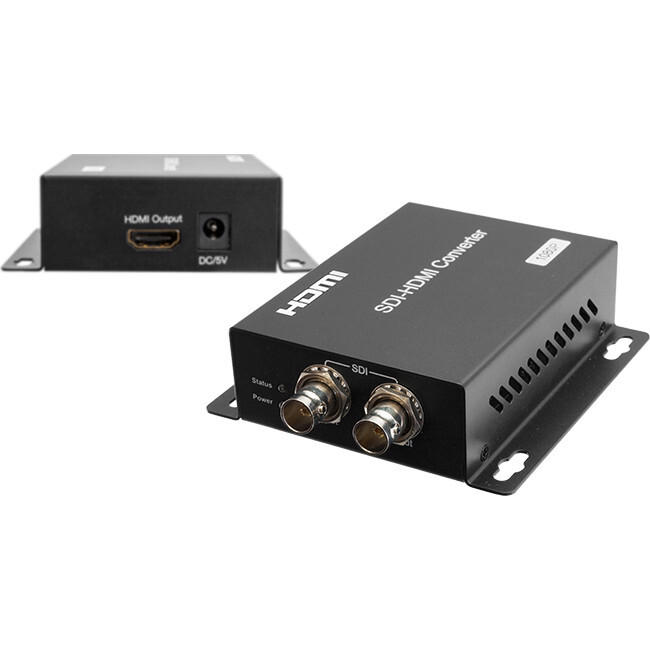

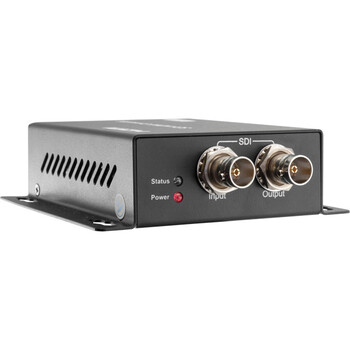

SDI TO HDMI CONVERTER

The SDI2HDMI performs a vital role in monitoring your digital CCTV system from your home entertainment system.

SDI loop-out means you can connect your camera to your home video distribution system and your Digital CCTV system simultaneously without lag.

Has a PIP (or Picture in Picture) mode where an alternate video input can be displayed on top of your current picture.

Features:

• SDI/ HD-SDI to HDMI
• Equalized Looping SDI/ HD-SDI output
• Supports 1080p@23.9/ 24/ 25 / 29.97/ 30/ 50/ 59.94/ 60Hz:
  • 1080i@50/59.94/60Hz
  • 720P@50/59.94/60Hz
  • 576i @50Hz
  • 480i@59.94/ 60Hz
• HDCP 1.4 Compliant
• Uses 5V power (power adaptor included)

Specifications:

• Operating Temperature Range: -5 to +35°C(+23 to +95°F)
• Operating Humidity Range: 5 to 90%RH (No Condensation)
• Input Formats:
• 1080i @ 50/59.94/60Hz
• 1080p @ 25Hz
• 1080p @ 29.97Hz
• 1080p @ 30Hz
• 1080p @ 60Hz
• Video Input: 3G-SDI / HD-SDI / SDI
• Outputs:
  • HDMI
  • SDI/HD-SDI Loop-out (75 ohm, unterminated)
• HDMI:
  • Standard Type A connector
  • Video:8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)
  • Audio: 24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
• HDCP: Compliant HDCP
• Power consumption: 2.5W (Maximum)
• Dimension (L×W×H): 95×95×29mm
• Net Weight: 245g
