Ir Infra-Red Remote Control Extender Repeater Kit Foxtel Iq2 Compatible

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

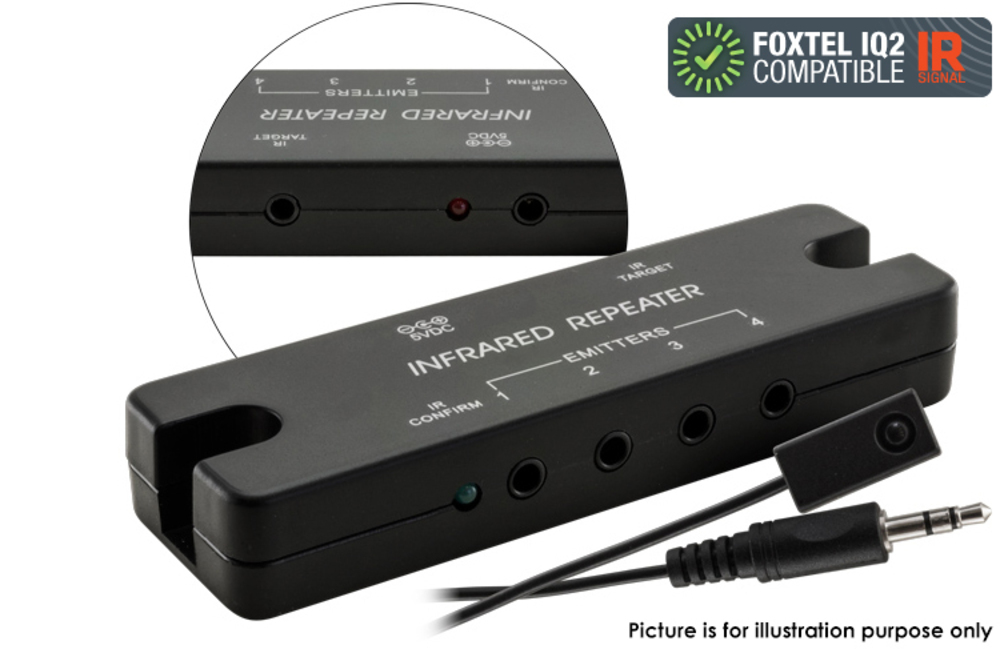

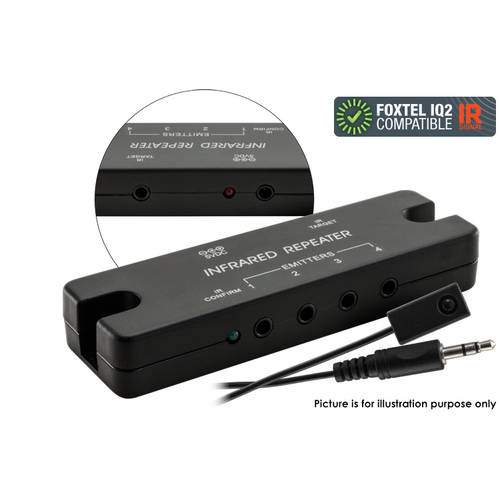

Hide your AV equipment in a cupboard or rack without losing the ability to control them with their Remote Controls. Installing the Compact IR Repeater kit is quick and simple, and expandable offering extra output ports for more emitters/equipment!


  • Four amplified emitter output connections
  • convenient IR confirmation LED
  • Power indication LED
  • Compact size for mounting near audio equipment
  • IR receiver and emitters supplied
  • Compatible with Foxtel IQ2

(PRO1326)

This item comes with 12 month Warranty

Four amplified emitter output connections

In The Box

  • 1x Compact IR Repeater Box
  • 1x IR Receiver (3.5mm Stereo plug)
  • 2x Dual IR Emitters (3.5mm Mono plug)
  • 1x Power Adapter (5VDC / 500mA)
  • 2x Mounting Screws

Repeater Box

Receive/Transmit Frequency    38kHz ~ 56kHz
Power    5VDC / 500mA
Dimensions    104x32x17mm
Weight    25g

IR Receiver

    Range    40ft @ 38kHz
25ft @ 56kHz
Connector    3.5mm stereo plug
     Tip: Signal
Ring: +V
Sleeve: Gnd
Cable Length    3metres
Dimensions    20x9.4x7mm (excl cable)
Weight    21g

IR Emitter

Emitters/LEDs    2x (Dual)
IR Wavelength    940nm
Cable Length    3metres
Connector    3.5mm mono plug / Tip: Signal / Sleeve: Gnd

Model # PRO1326
Barcode # 9328202015204
Brand PRO2
Shipping Weight 0.2400kg
Shipping Width 0.170m
Shipping Height 0.110m
Shipping Length 0.050m
Shipping Cubic 0.000935000m3
Type IR Reciever
