100M HDBASET EXTENDER KIT WITH HDCP2.2 EDID AND ARC

The HEX100ARC-KIT-V2 extender set is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100mover a single CAT cable. It also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.

Key Features:

• Advanced HDBaseT? technology offering uncompressed video and audio with zero latency
• Extends HDMI up to a distance of 100m over single CAT cable
• Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports CEC pass through
• Features 1x HDMI loop out for integrating local displays or cascading to further signal distribution devices
• Supports ARC (Audio Return Channel) from display via HDMI or Optical digital inputs (to 90m max distance**)
• Supports audio return to HDMI, Optical digital and analogue L/R audio outputs (DAC PCM only)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Integrated 3-port Ethernet switch (LAN Serving)
• Bi-directional RS-232 pass through
• Bi-directional IR from all input and output locations
• Supplied with Blustream IR receiver and emitter
• Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver end
• HDCP 2.2 support
• Foxtel iQ2and iQ3 compatible

Specifications:

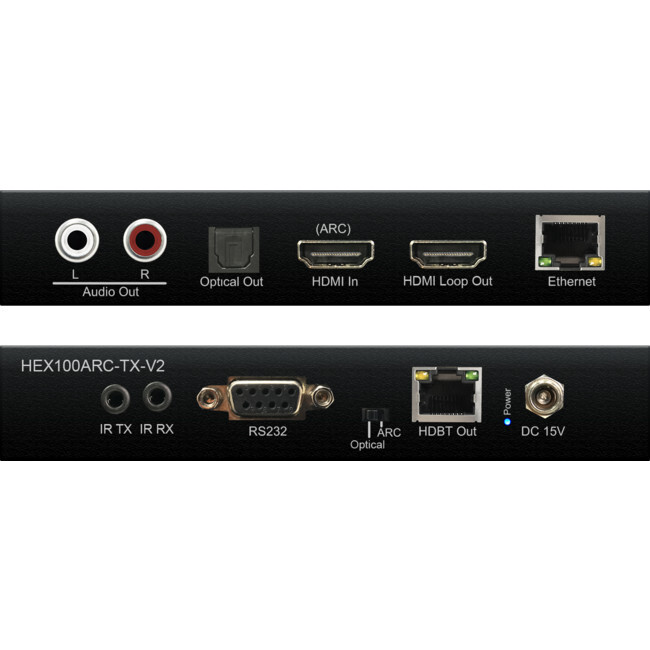

HEX100ARC-TX-V2

• Video Input Connectors: 1x HDMI Type A, female
• Video Output Connectors: 1x HDBaseT RJ45 connector, 1x HDMI Type A, female
• Audio Output Connectors: 2x RCA (L/R), 1x Optical (SPDIF)
• Ethernet port: 1x RJ45 connector
• RS-232 serial port: 1x DB-9 female
• IR Input ports: 1x 3.5mm stereo jack
• IR Output ports: 1x 3.5mm mono jack
• 2x mounting bracket

HEX100ARC-RX

• Video Input Connectors: 1x HDBaseT RJ45 connector,
• Video Output Connectors: 1x HDMI Type A, female
• Audio Input Connectors: 1x Optical (SPDIF)
• Ethernet port: 3x RJ-45 connector
• RS-232 serial port: 1x DB-9 female
• IR Input ports: 1x 3.5mm stereo jack
• IR Output ports: 1x 3.5mm mono jack

Supplied With:

• 1 x HEX100ARC-V2-Tx
• 1 x HEX100ARC-Rx1 x Usuer Manual
• 2 x Mounting brackets
• 1 x 15V/2A power supply
• 1 x IR emitter
• 1 x IRR receiver

Where ARC is required over longer distances, it is highly recommended that shielded CAT cable be used
