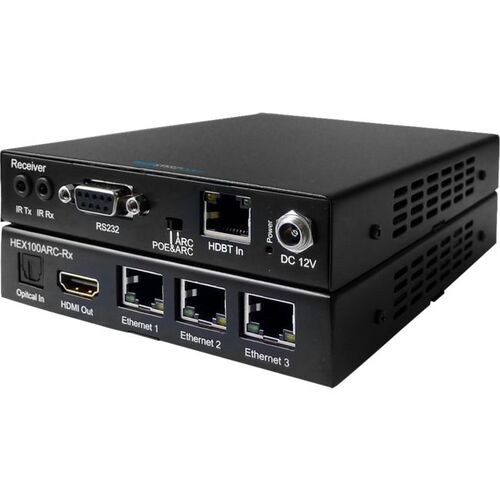

100M HDBASET Receiver with ARC


  • Audio Return Channel (ARC) supported via HDMI or backwards Toslink input
  • 3-way Ethernet switcher embedded
  • HDMI v1.4 and HDCP compliant, support 1080p@60Hz, 3D and 4Kx2K
  • Support 1080P@60Hz or VESA: 1920x1200@60Hz up to 100m
  • Transmission distance for 4Kx2K@30Hz up to 70m
  • Dolby TrueHD and DTS-HD master audio pass through
  • Bi-Directional IR, RS232 and Ethernet pass through
  • POC, no power supply needed for the receivers
  • With ESD Protection
  • Foxtel iQ2and iQ3 compatible


  • Video Input Connectors: 1x RJ-45
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female
  • Audio Input Connectors: 1x Toslink & ARC via HDMI
  • IR Input port: 3.5mm stereo jack
  • IR Output port: 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • Ethernet port: 3x RJ-45 at RX
  • Dimensions (W x H x D): 155mm x 115mm x 24mm , withoutfeet
  • Shipping Weight: 0.35 KG each
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°Cto 60°C)
  • Power Supply: 12V/2A

Supplied With:

  • 1 x HEX100ARC-Rx
  • 2 x mounting ears


This item comes with a 12 months warranty

Model # HEX100ARC-RX
Barcode # 9340242000965
Shipping Weight 0.4900kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
Type Receiver
