4X4 4-IN 4-OUT HDMI MATRIX 2X2 VIDEO WALL RS232 IP

HDMIMX4422 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:

• Any one of the 4 sources to any one of the 4 displays
• Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 1 second
• Support 2x2 video wall mode
• Any one of the four outputs can be turned off independently
• Support high definiton resolutions, including: 1080p@60Hz@36 b/pixels, 1080i, 720p and other standard video formats

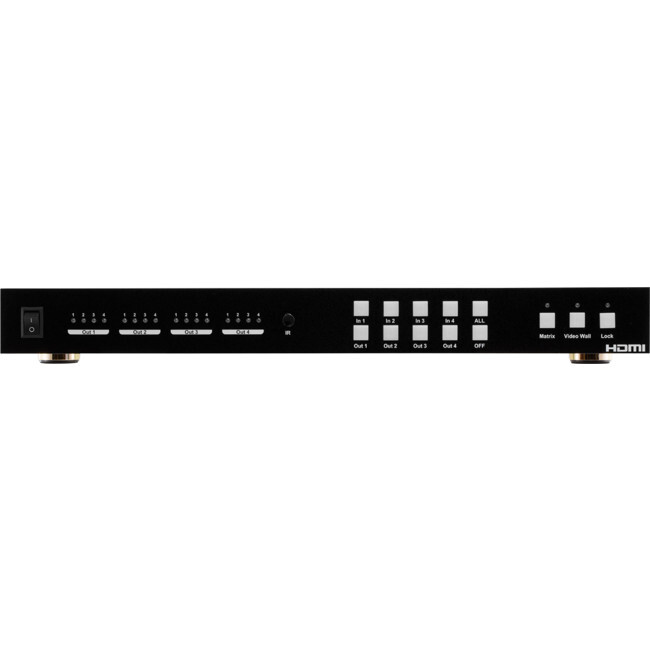

• With panel button, Remote Control, RS232 Control, IP Control to select the source

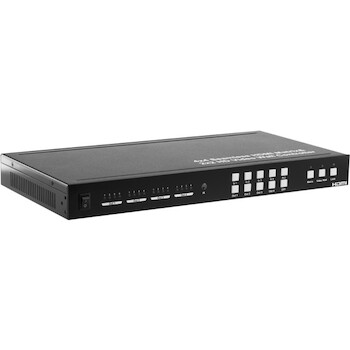

• 1U rack design ,easy installment

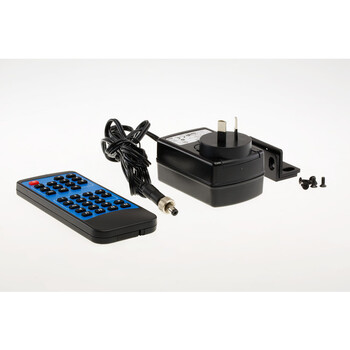

• DC 12V 3A power supply (Included)

Specifications:

• Operating Temperature Range: 0 to +35°C
• Operating Humidity Range: 5 to 90 % RH (no condensation)
• Input Video Signal: 0.5-1.0 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Video Format Supported: DTV/HDTV: 1080P/1080i/720P/ 576P/480P/576i/480i
• Audio Format Supported: LPCM

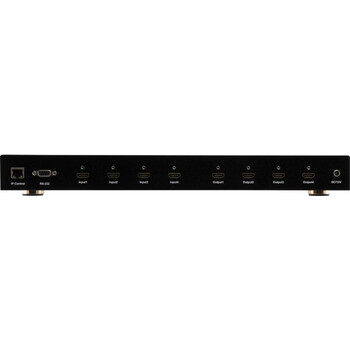

• Input ports: 4xHDMI(standard Type A connector)
• Output ports: 4xHDMI(standard Type A connector)
• Matrix mode: 4x4 Seamless switching
• Video wall mode: 2x2 video wall
• Power consumption: 24watts(Maximun)
• Dimension (mm): L438*W220*H44 mm
• Weight: 2800g
