4X4 4K HDMI/VGA MATRIX SWITCH WITH VIDEO WALL & MULTI VIEW

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

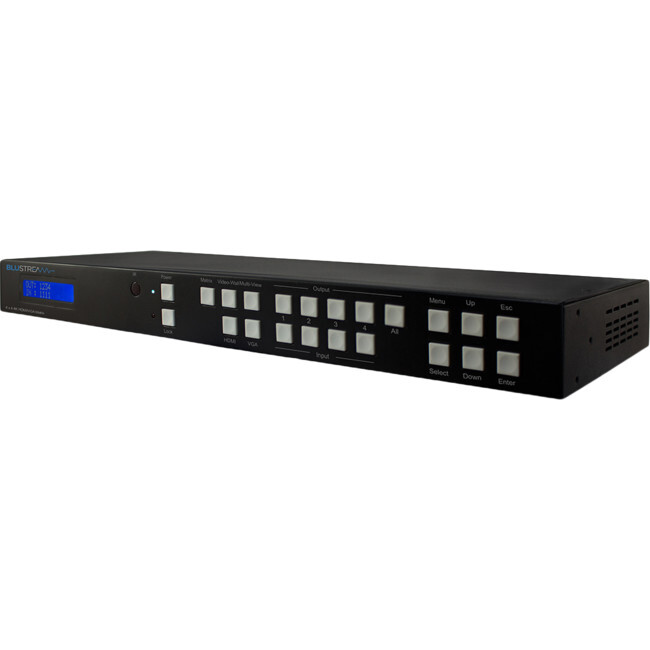

Blustreams MX44VW 4K HDMI/VGA matrix is a multi-purpose high-speed video processing system.

The MX44VW can be configured for 3 different output modes.

The MX44VW can perform as a 4x4 seamless matrix switcher,as a 2x2, 4x1 or 1x4 video wall solution, and as a quad multi-view presentation system.

Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App,IR remote control, RS-232 interface and TCP/IP.

FEATURES

  • Features 3 operational modes:

    • 4x4 Matrix (selected HDMI or VGA inputs)

    • Video wall (2x2, 4x1 or 1x4 configuration)

    • Multi-viewer mode with preset layouts

  • Features 4x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio

  • Seamless video switching

  • Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • HDMI output resolution fixed to 1080p 60Hz

  • Supports HDMI 2ch PCM audio only

  • Discreet IR routing

  • Supplied with Blustream IR receivers and emitters

  • Control via front panel, IR, RS-232 and TCP/IP and theBlustream Matrix App

  • 3rd Party control drivers available for all major homecontrol brands

  • Advanced EDID management

  • HDCP 1.4 compliant

(MX44VW)

This item comes with a 12 months warranty

Model # MX44VW
Barcode # 9340242001498
Brand BLUSTREAM
Shipping Weight 4.3500kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.005000000m3
Type Switch
