4x4 HDBASET CSC 70M MATRIX KIT 4K60Hz 4:4:4 UP TO 40M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDMI and Video Downscaling on HDBaseT™ output 1, Audio Breakout with Line Level Volume Control,RS-232 & TCP / IP Control, HDCP2.2 compliant, Web-GUI, includes 4 x HEX70CS-RX HDBaseT™ Receivers

Our Essential 4 x 4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.

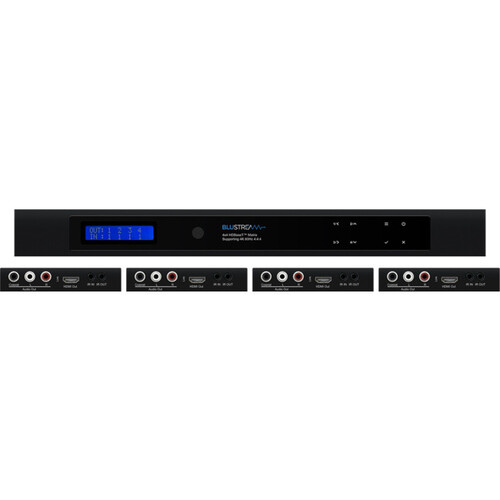

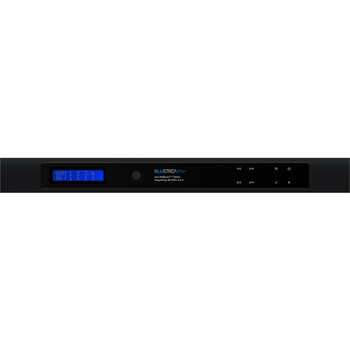

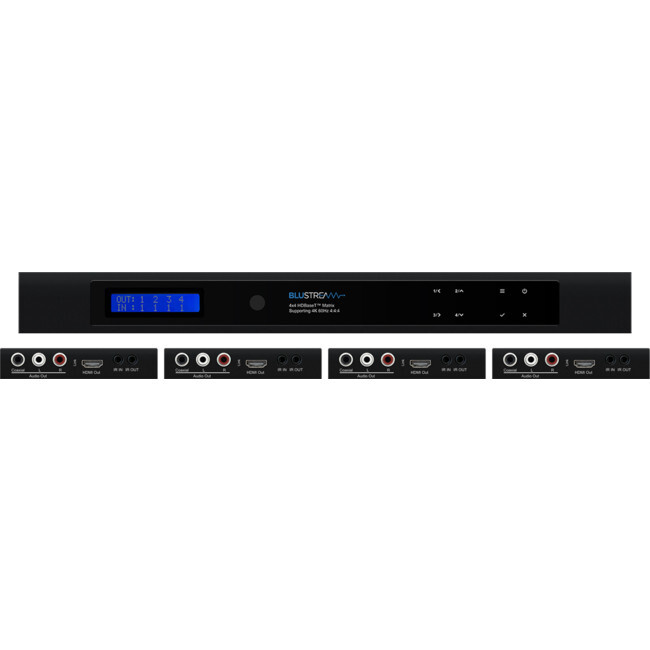

The HMXL44CS-KIT is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrixpackage utilising CSC technology to deliver HDMI, Bi-directional IR, RS-232 and PoH (PoE) up to lengths of 70mover a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video down conversion on HDBaseT™ output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix.

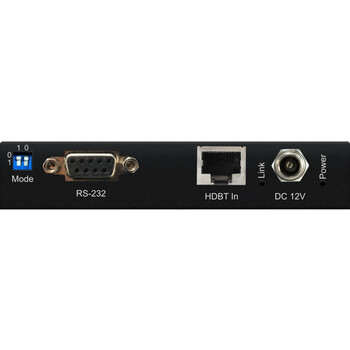

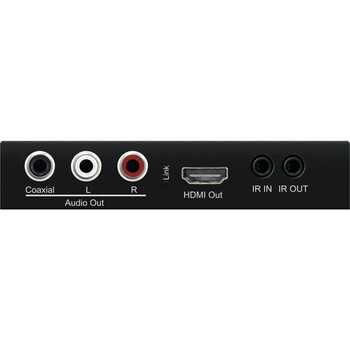

The HMXL44CS-KIT is supplied with 4 x HEX70CS-RX Receivers.

Key Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video down-conversion on HDBaseT™ output 1 allows for a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HEX70CS-RX HDBaseT™ Receivers to help solve HDMI HDCP, compatibility, and handshaking issues
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
  • Analogue (L/R) audio input can be embedded onto any combination of HDMI inputs concurrently
  • Web interface module for control and configuration ofthe Matrix
  • Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to power supplied HDBaseT™ receivers
  • 3rd Party drivers available for all major home control brands
  • 1U Design for 19" rack mount integration - mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant

Specifications:

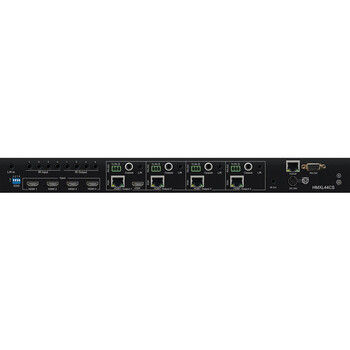

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
  • Audio Output Connectors: 4 x 3.5mm stereo jack, 4x RCA Coaxial Digital
  • Audio Input Connectors: 1 x 3.5mm stereo jack
  • RS-232 serial port: 1x DB-9, female, 4 x 3-pin Phoenix sockets for each zone (DB9 serial to Phoenix connector cables supplied)
  • TCP/IP Control: 1 x RJ45, female
  • IR Input ports: 5 x 3.5mm stereo jack
  • IR Output ports: 4 x 3.5mm mono jack
  • Rack-Mountable: 1U rack height, rack ears included
  • Unit Dimensions (W x D x H): 440mm x 235mm x 44mm (without feet & connections)
  • Unit Dimensions (W x D x H): 440mm x 245mm x 52mm (with feet & connections)
  • Unit Weight: 2.98kg
  • Box/Carton Dimensions (W x D x H): 505mm x 305mm x 155mm
  • Shipping Weight: 7.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1x 24V/3.5A DC

Box Contents:

  • 1 x HMXL44CS Matrix
  • 4 x HEX70CS-RX Receivers
  • 1 x Rack Mounting Kit for HMXL44CS
  • 4 x Mounting Kits for HEX70CS-RX
  • 1 x 24V/3.5A Power Supply
  • 1 x IR Remote Control
  • 4 x IRCAB IR Control Cables - 3.5mm-3.5mm Cable
  • 4 x IR Emitters
  • 5 x IRR Receivers

(HMXL44CSKIT)

This item comes with a 12 months warranty

Model # HMXL44CSKIT
Barcode # 9340242002334
Brand BLUSTREAM
Shipping Weight 6.9100kg
Shipping Width 0.350m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.007000000m3
Type Switch
