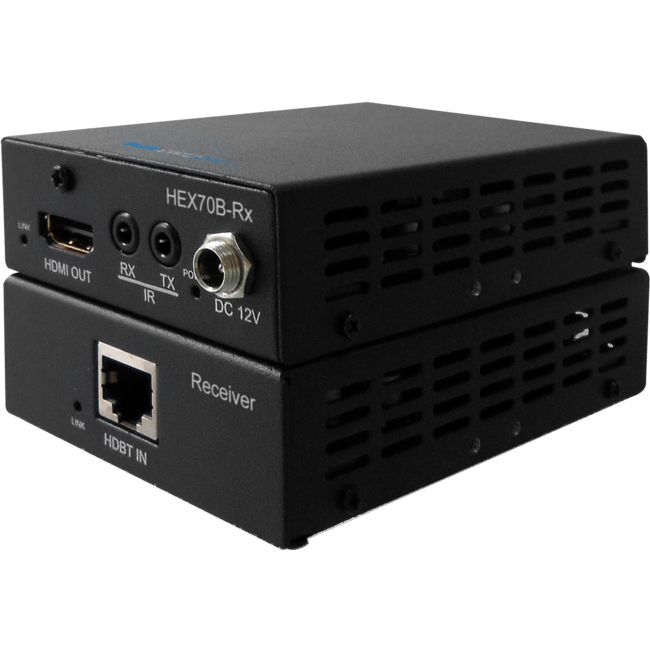

70M HDBASET Receiver - 70M (4K UP TO 40M), BI-Directional IR, POH (POE), Compatible with HMXL88 & HSP14AB
Features:
- Receives a HDBaseT™ signal from a compatible HDBaseT™ transmitter over distances of up to 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports bi-directional PoH (Power over HDBaseT™) to power extenders from either Blustream Matrix products, transmitters or receiver end
- Supports bi-directional IR from all input and output locations
- HDCP compliant
- Foxtel iQ2and iQ3 compatible
Specifications:
- Video input: 1x HDBaseT™ RJ45 connector
- Video output: 1x HDMI Type A, 19-pin, female
- IR input 1x 3.5mm stereo jack
- IR output 1x 3.5mm mono jack
- Power Supply 12V/2A DC, screw type connector
- Power Consumption 9.5W
- Dimensions (WxDxH): 105x73x27mm without feet
- Shipping Weight: 0.4kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting kit included
Box Contents:
- 1 x HEX70B-RX
- 1 x Mounting brackets
Optional:
- 1 x 12V/2A DC power supply
(HEX70B-RX)
This item comes with a 12 months warranty
Model # | HEX70B-RX |
Barcode # | 9340242001016 |
Brand | BLUSTREAM |
Shipping Weight | 0.3000kg |
Shipping Width | 0.200m |
Shipping Height | 0.100m |
Shipping Length | 0.200m |
Shipping Cubic | 0.004000000m3 |
Type | Receiver |
