COMPONENT VIDEO CAT5 EXTENDER 2PCS/SET BALUN DIGITAL AUDIO

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

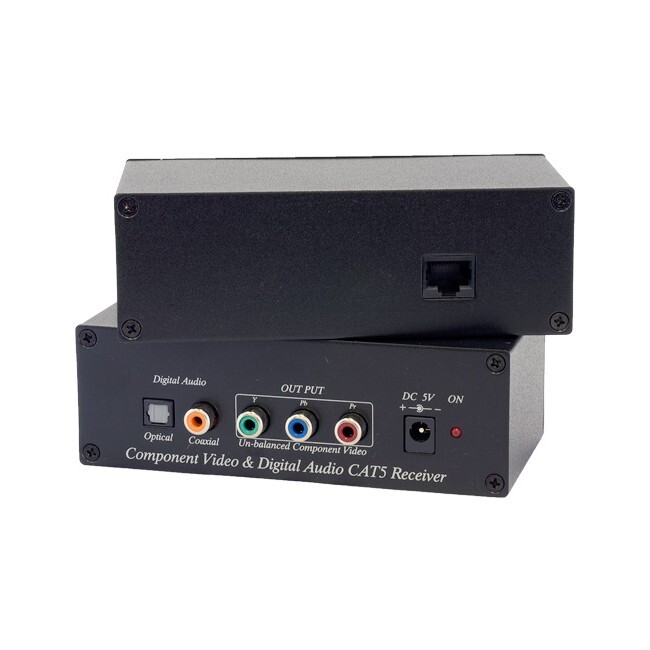

CV02A-4 IDEO Digital Adio CAT5 Extender 2PCS/SET

The Component Video & Digital BALUN is designed for component video signal (Y, Pb, Pr) and one digital audio be transmitted via cost effective one CAT5 UTP cable. Used in pairs, the Component Video/Digital Audio BALUN supports 408i/p, 720p and 1080i video formats for hi-definition (HDTV) video application. Application for control rooms, multimedia rooms, communications centers, convention facilities, classroom video corporate projection system.

Features:

Designed for component video and digital audio signal transmission over one CAT5 UTP cable.
Active type, with external power.
Digital Audio: coaxial or optical interface
Up to 300 meters for video and digital audio.
Support HDTV signal up to 300 meters (480i /480p/720p/1080i/1080p).
Offers a high quality component video signal for use on plasma and LCD displays.
Perfect for DVD, VCR, DVR, TV, Satellite receivers, monitors, home theatre and other equipments supporting component video with digital audio.

Specifications:

Item NO.: CV02A
Video Input (RCA Connector): Green color for Y,  Blue color for Pb,  Red color for Pr,
Audio Input: RCA or Optical
Support: 480Ii/480p/720p/1080i/1080p
Bandwidth: Video: 60Mz, 3dB roll off, Digital Audio: 25MHz, 1dB roll off
Maximum Input: 1.0Vp-p , 75 Ohms
Insert Loss  video: 1dB for 0.1Mhz. Gradually increasing to 3.0dB over the frequency range
Video Gain: Y, Pb, Pr
Return Loss  video: Greater than 15dB over the frequency range
Common Mode Rejectionvideo: - 55db max.
Power: 5V
Distance: 300 meters (Max.)
Cable for RJ-45: Twisted Pair CAT 5  (AWG24)
Temperature: Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions W x H x Dmm: 70*133*44
Weight (g): 300

(CV02A-4)

This item comes with a 12 months warranty

Model # CV02A-4
Barcode # 9328202030177
Brand UNBRANDED
Shipping Weight 1.0200kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
Type Extender
