DVI-D to DP Video Adapter - DVI to DisplayPort Converter

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

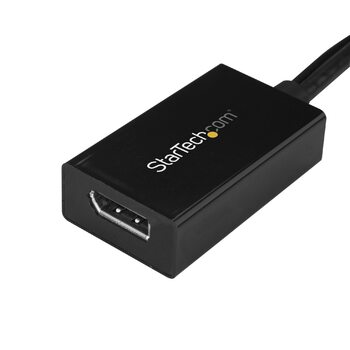

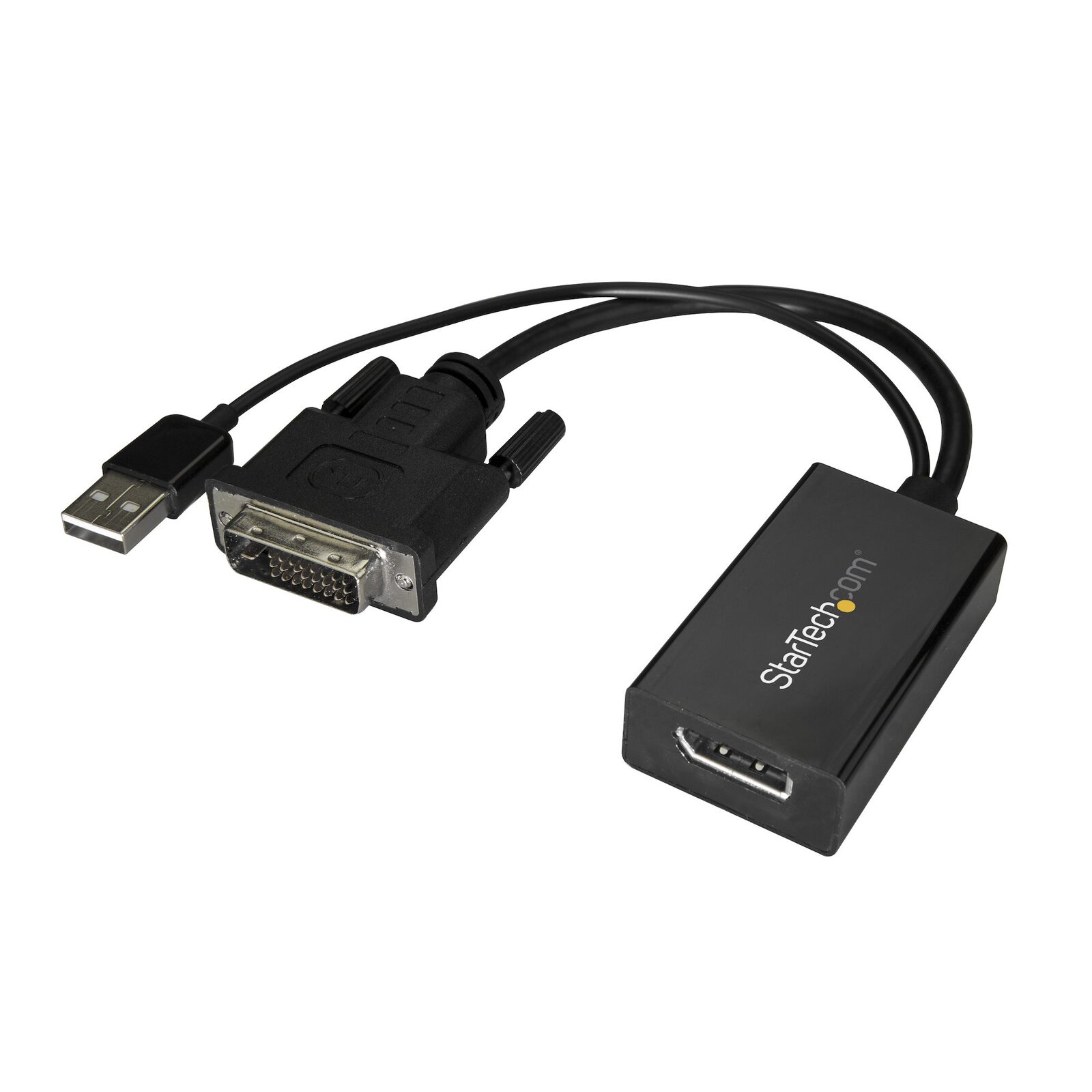

This DVI to DisplayPort adapter lets you connect a DVI video source, such as your desktop computer, to your DisplayPort (DP) monitor or projector.

Get hassle-free DVI-D to DP conversion

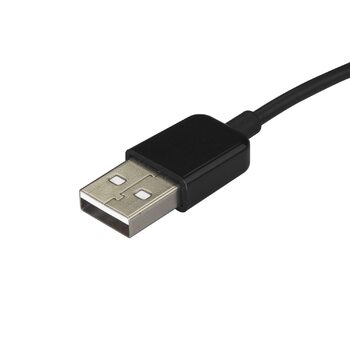

The DVI to DisplayPort converter is USB powered, giving you the freedom to power it using a USB port on your computer, unlike some converters that require bulky external power adapters. USB powered devices don't require an AC outlet, so you can connect a DVI computer to a DP projector or display where power outlets are limited or inaccessible, such as your boardroom or workstation.

The DVI to DP adapter also supports plug-and-play installation, so you won’t need to load any drivers or software on your computer.

Be more productive

Using the DVI to DisplayPort adapter, you can connect a secondary monitor through a vacant DVI port on your computer. The added screen space makes it easier to multitask, so you can work more efficiently and accomplish more in less time. It's perfect for office use, or wherever you view documents, spreadsheets, or web pages across multiple screens.

Keep your high-definition video quality

With support for display resolutions up to 1920x1200 or 1080p, the DVI to DisplayPort adapter lets you take full advantage of the single-link DVI-D capabilities that are built into your computer’s graphics card.

(DVI2DP2)

Performance
Supported Resolutions: 1920x1200
1920x1080 (1080p)
1680x1050 (WSXGA+)
1600x1200
1600x900
1440x900
1400x1050 (SXGA+)
1366x768
1360x768
1280x1024
1280x960
1280x800
1280x768 (WXGA)
1280x720p (720p)
1280x600
1152x864
1024x768
800x600 (SVGA)
640x480 (480p)
Video Revision: DisplayPort 1.2
Wide Screen Supported: Yes

Physical Characteristics
Cable Length: 254 mm [10 in]
Color: Black
Product Height: 3.2 cm [1.3 in]
Product Length: 17.2 cm [6.8 in]
Product Width: 14.3 cm [5.6 in]
Weight of Product: 150 g [5.3 oz]

Power
Power Source: USB-Powered

What's in the Box
Included in Package: 24 in. [610 mm] USB extension cable : DVI to DisplayPort adapter

Performance
MTBF: 1,040,762 hours
Maximum Digital Resolutions: 1920 x 1200 at 60Hz

Packaging Information
Shipping (Package) Weight: 64 g [2.3 oz]
Package Width: 34 mm [1.3 in]
Package Length: 25.4 cm [10 in]
Package Height: 17 mm [0.7 in]

Hardware
Chipset ID: Mega Chip - STDP2600
AV Output: DisplayPort
AV Input: DVI-D
Audio: Yes

Environmental
Storage Temperature: -10°C to 70°C (14°F to 158°F)
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Humidity: 40%-50%RH

Connector(s)

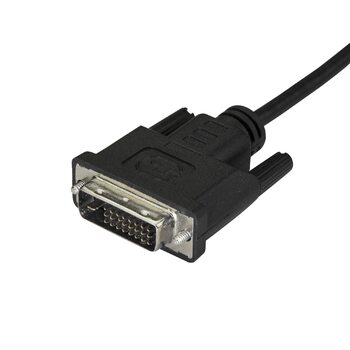

Connector A: DVI-D (25 pin) Input Male : DisplayPort (20 pin) Output Female

Model # DVI2DP2
Barcode # 065030875851
Brand STAR TECH
Shipping Weight 0.0600kg
Shipping Width 0.250m
Shipping Height 0.020m
Shipping Length 0.030m
Shipping Cubic 0.000150000m3
Type Adapter
