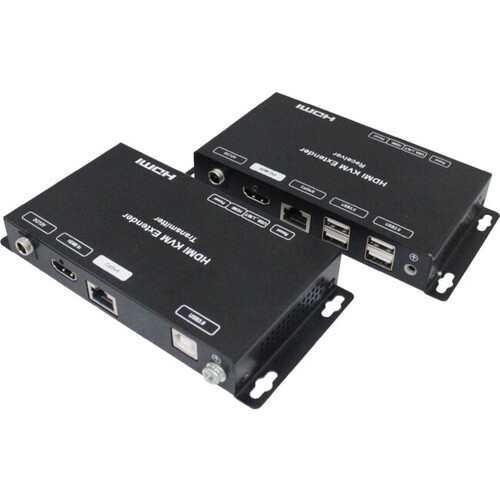

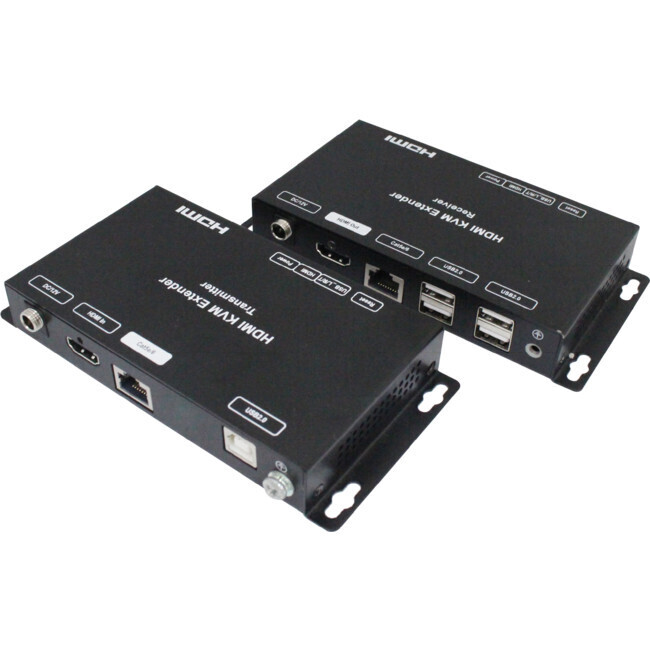

HDMI USB2.0 KVM EXTENDER 50M W/ 4 USB PORTS 100M HDMI

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Features:

  • Transmit distance up to 100m over single Cat5e/6 cableunder Non-USB mode
  • Transmit distance up to 50m over single Cat5e/6 cable under USB Mode
  • USB 2.0 pass-through
  • Support Full HD 1080P@60Hz, and bandwidth 1.65Gbps
  • Support Dual POC(RX powered by TX or TX powered by RX)
  • HDCP1.4 compliant
  • Support PCM2.0, audio sampling rate: 44KHz, 48KHz

Specifications:

  • Operating Temperature Range: -10 to +45°C(14 to +113°F)
  • Storage Temperature Range: -15 to +70°C(5 to +158°F)
  • Operating Humidity Range: 5 to 90%RH (No Condensation)
  • Support Video Format: DTV/HDTV: 480P/576P/720P/1080P / VESA:640x480, 800x600, 1024x768, 1280x1024,1680x1050, 1280x720, 1360x768
  • Connector on Transmitter: 1x HDMI Input , 1x USB B Type, 1xRJ45 Output
  • Connector on Receiver: 1xRJ45 Input, 1x HDMI Output, 4x USB A Type
  • Transmission Distance: 100m (Max) over single Cat5e/6 /24AWG/Solid under Non-USB Mode, 50m(Max) over Single Cat5e/6 /24AWG/Solid under USBMode
  • USB Transmit speed: 480M bit/s (Max)
  • Power consumption: 4.8W( Max)
  • Dimension (L×W×H): L147.5 x W73.6 x H22 mm
  • Net Weight: Transmitter:257.5g ; Receiver:257.5g

PLEASE NOTE THERE IS ONLY ONE POWER SUPPLY SUPPLIED IN THE KIT, YOU CAN PLUG IT INTO EITHER THE TRANSMITTER OR RECEIVER, BUT THE USB PORT DOESN'T SUPPORT HOT PLUG, THE POWER CYCLE REQUIRED WHEN TO PLUG IN ANY USB DEVICES.

(HDMIKVMV3)

This item comes with a 12 months warranty

Model # HDMIKVMV3
Barcode # 9328202032294
Brand PRO2
Shipping Weight 0.8700kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
Type Extender
