IP-100M MULTICAST UHD VIDEO TX 1GB -BI-DIR IR -RS232 -POE

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GBNetwork switch.
The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE.
With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

Key Features:

  • Advanced UHD video over 1Gb Network
  • Virtually unlimited system size
  • Extends HDMI up to a distance of 100m over a single CAT cable
  • Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including DolbyTrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • Advanced signal management for independent routing ofIR, RS-232, USB/KVM, audio and video
  • PoE (Power over Ethernet) to power Blustream productsfrom PoE switch
  • HDCP2.2 compliant with advanced EDID management
  • Analogue L/R audio embedding
  • Analogue L/R audio breakout
  • Local 24-56V power supply (should Ethernet switch notsupport PoE) - sold separately
  • Features 4 operational modes:
    • Matrix distribution (requires 1GB network switch)
    • Video wall (requires 1GB network switch)
    • One-to-one HDMI extender (no network switch required)
    • One-to-many HDMI extender (no network switch required)

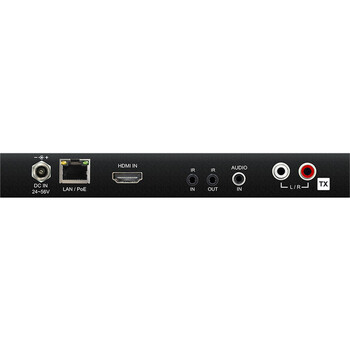

Specifications:

  • Video input: 1x HDMI Type A, female
  • Video output: 1x LAN RJ45 connector
  • Audio input:1x 3.5mm L/R Analogue audio
  • Audio output connectors: 2x RCA L/R Analogue audio
  • Ethernet port: 1x LAN RJ45 connector
  • RS-232 Serial port: 1x 3-Pin Phoenix connector
  • USB/KVM Port: 1x USB - Type B
  • IR input: 1x 3.5mm stereo jack
  • IR output: 1x 3.5mm mono jack
  • Firmware Update: 1x Micro-USB
  • Mounting kit included
  • Dimensions (W x D x H ): 190mm x 114mm x 25mm
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Box Contents:

  • 1x IP200UHD-TX
  • 1x (IRR) IR Receiver
  • 1x (IR1) IR Transmitter
  • 1x Serial 3-pin phoenix connector
  • 1x Mounting kit

(IP200UHDTX)

This item comes with a 12 months warranty

Model # IP200UHDTX
Barcode # 9340242002907
Brand BLUSTREAM
Shipping Weight 0.8400kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
Type Transmitter
