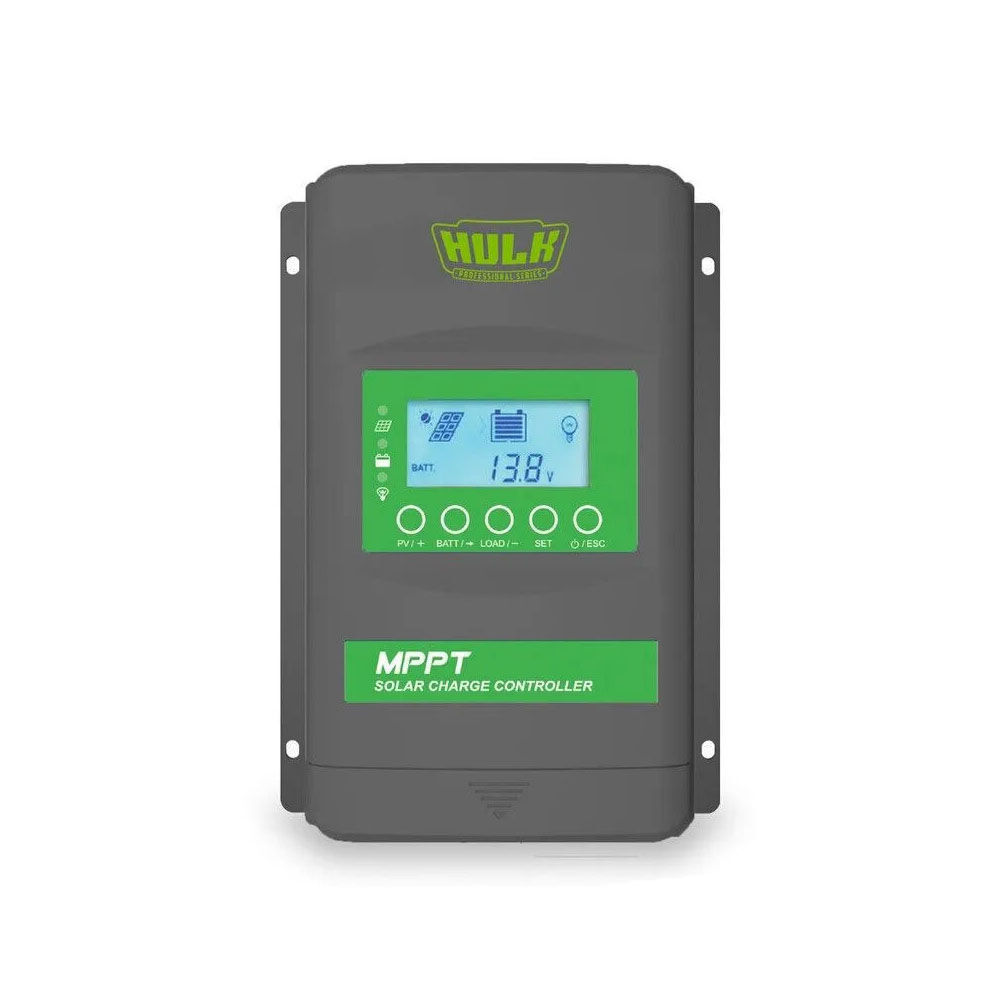

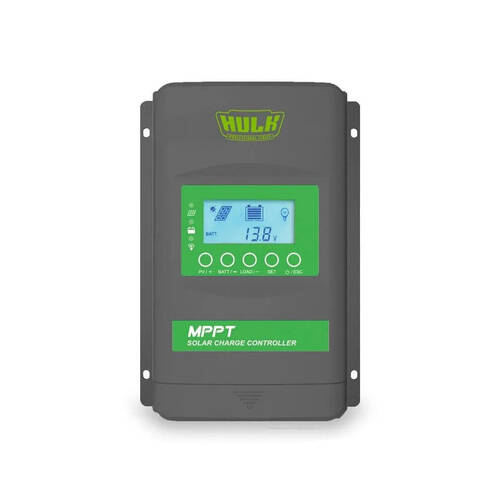

Hulk Pro 20A MPPT Solar Battery Charge Controller Device 12-24V

Hulk Pro 20A MPPT Solar Battery Charge Controller Device 12-24V

Introducing the HULK Professional Series 20A MPPT Solar Charge Controller, designed for efficient solar power management and reliable performance. This advanced controller maximises energy utilisation from your solar array, ensuring you get the most out of your solar setup. With its robust features and comprehensive electronic protection, it is perfect for various applications, making it an essential component for your solar energy system.

Key Features:

• Maximise Energy Utilisation: Advanced MPPT algorithm increases energy utilisation by 20% to 30% compared to traditional PWM controllers.
• Comprehensive Electronic Protection: Safeguards against overcharge, over-discharge, and reverse polarity for a reliable solar system.
• Prolong Battery Lifespan: Self-adaptive three-stage charging mode optimises charging efficiency, extending battery life.
• Versatile Battery Compatibility: Supports both lead-acid and lithium batteries with adjustable voltage parameters.
• Real-Time Energy Monitoring: Equipped with real-time energy statistics and monitoring via app or PC software.

Specifications:

• Brand: HULK PRO
• Product Type: Solar Charge Controller
• Model Number: HU6714 (20A)
• Nominal System Voltage: 12/24VDC Auto
• Rated Charge Current: 20A
• Max. PV Open Circuit Voltage: 100V
• MPP Voltage Range: (Battery Voltage +2V) ~ 72V
• Rated Charge Power: 260W / 12V, 520W / 24V
• Max. Conversion Efficiency: 98.3%
• Full Load Efficiency: 96.4%
• Self-Consumption: 30mA (12V)
• Discharge Circuit Voltage Drop: 0.23V
• Temperature Compensate Coefficient: -3mV / C / 2V (Default)
• RS485 Interface: 5VDC / 200mA (RJ45)
• LCD Backlight Time: Default: 60S, Range: 0~999S

Includes:
1 x Solar Controller
