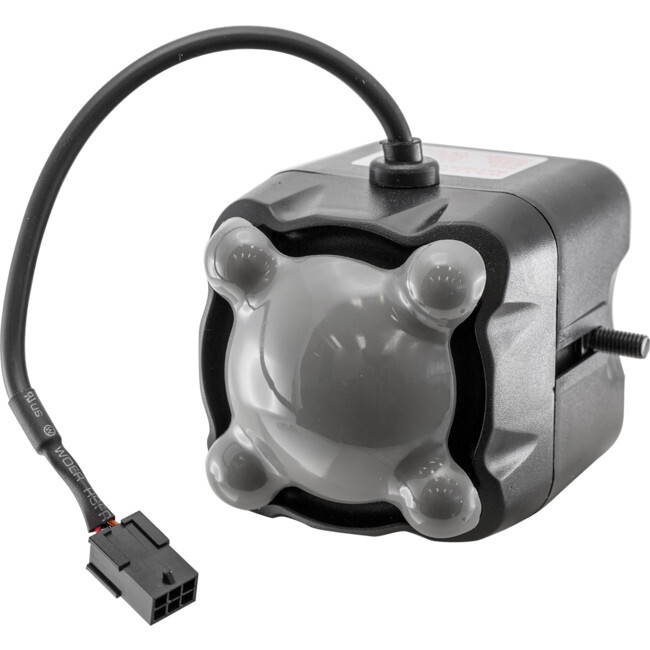

12V SIREN WITH BATTERY BACK UP DYNAMCO

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

SIREN WITH 65MA/HR BATTERY BACKUP

Battery Backup Protection
The siren will continue to sound if a thief removes the vehicle's battery leads. Internally the siren switches to its own battery for its the source of power
Miniature Case
Small body and bracket allow for easier installation into modern cars which offer little room for additional equipment

Operation
Power supply

Sources constant power from the vehicle's battery
Trigger wire
Trigger wire is grounded by the alarm system to make sound
Automatic Battery Charging
The siren will automatically recharge its the battery from the vehicle battery

Specifications
Sound Frequency bandwidth: 1500Hz to 3550Hz
Sound Pressure Level: No less than 90dB and no greater than 115dB @ 1metre
Idle Current Draw: 16mA maximum
Sounding Current Draw: 1000mA maximum
Wide Operating voltage: Operating voltage +9VDC to +15VDC
Battery Backup Capacity: 65mAH maximum
Battery Backup Charge Rate: 10mA maximum

(SIR004)

Standard Consumer Warranty
SIREN WITH 65MA/HR BATTERY BACKUP Battery Backup Protection The siren will continue to sound if a thief removes the vehicle's battery leads. Internally the siren switches to its own battery for its the source of power Miniature Case Small body and bracket allow for easier installation into modern cars which offer little room for additional equipment Operation Power supply Sources constant power from the vehicle's battery Trigger wire Trigger wire is grounded by the alarm system to make sound Automatic Battery Charging The siren will automatically recharge its the battery from the vehicle battery Specifications Sound Frequency bandwidth: 1500Hz to 3550Hz Sound Pressure Level: No less than 90dB and no greater than 115dB @ 1metre Idle Current Draw: 16mA maximum Sounding Current Draw: 1000mA maximum Wide Operating voltage: Operating voltage +9VDC to +15VDC Battery Backup Capacity: 65mAH maximum Battery Backup Charge Rate: 10mA maximum
Model # SIR004
Brand DYNAMCO
Shipping Weight 0.3500kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000200000m3
Type Siren
