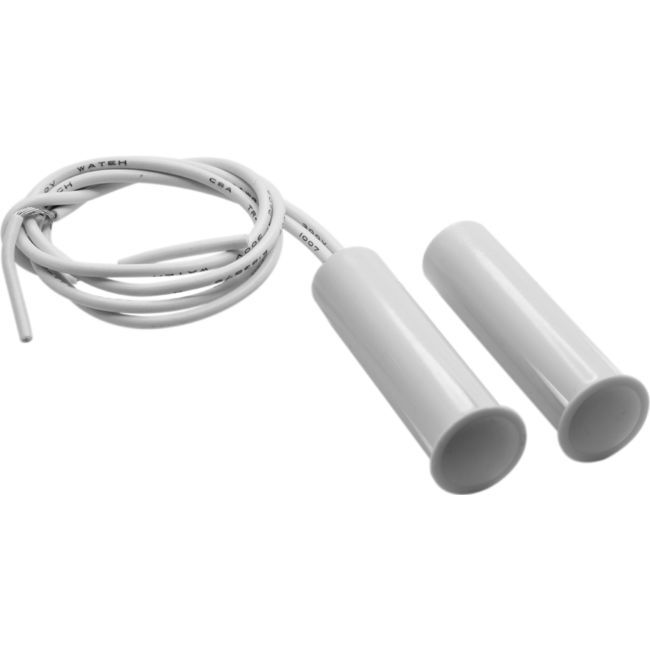

FLUSH MOUNT REED SWITCH RECESSED NO

FLUSH MOUNT REED SWITCH RECESSED NO

SWITCH

Loop type: closed-loop

Reed Switch Contact Form: FORM A (N.O)

Switching voltage (max.): 100v AC/DC

Switching current (max.): 0.5A

Contact capacity (max.): 10 VA

Initial contact resistance: 0.2 Ohm max.

Carry current (max.): 1 A

Breakdown voltage: 200 VDC

Insulation resistance: 100 Mohm min.

Switch cycle: 5x 107 cycle at 30.V 0.1ADC

MAGNET

Material: NdFeB rare earth

Residual flux density (BR): 11.8~12.5K Gauss

Maximum energy product (BH): 33~36 MG. Oe

Curie temp. (TC): 310°C

GAP

Sense gap: 16mm min.

PHYSICAL CHARACTERISTIC

Temperature: -20°C ~ +60°C

Vibration: 20G (10~55Hz)

Shock: 30G (11 msec)

Heat shock: -25°C~+65°C (30min) (30min) 100 cycle

Package drop: Drop height 80 cm

Humidity: 80°C 95% RH 72 hrs
