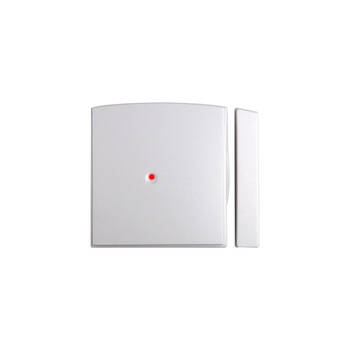

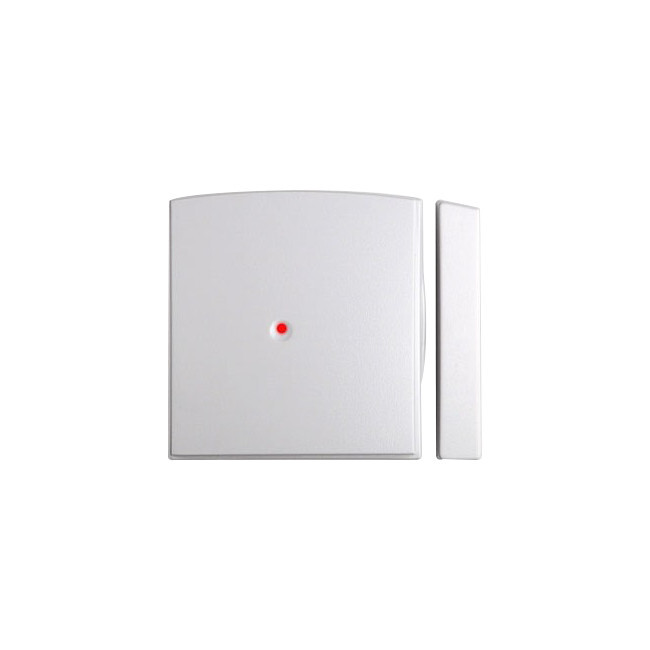

RR2 UNIVERSAL TRANSMITTER NESS

The 100-527 Ness Universal Transmitter is a 9V battery operated transmitter with the onboard reed switch, an external input and vibration analyser.

The external input can be used to take inputs from normally closed reed switches or emergency buttons. This allows the connection of any type of N.C. switch or button to trigger an alarm signal. The external input can also be used to connect Nessensor vibration sensors for completely wireless vibration sensing. The onboard vibration analyser can be easily adjusted for sensitivity. The onboarded switch allows for standalone door or window protection without using the external input.

Dimensions 78(h) x 73(w) x 27(d) mm. (Excluding magnet).
Operating voltage 9V Lithium battery (Ultralife U9VL).
Signals transmitted: 1: Alarm/restore from reed switch or external input. 2: Tamper. 3: Low battery signal (~6V). 4: Learn message (on power-up).
Radio security: 1. Encrypted signals. 2. Supervised operation.* Input selection link: Internal reed or external input or both in series.
Standby current draw <10µA
Radiofrequency 303.85MHz
Transmit power 100µW
External input Accepts N.C. devices. 400mm max cable length to input.
Tamper switch Cover tamper switch.
Reed switch Miniature glass envelope, matching magnet supplied.
Vibration adjustment Rotary min/max sensitivity adjustment.
Compatibility All Ness radio receivers.
Encryption and radio supervision when used with a compatible Ness receiver/control panel.
