48W Professional Quality Soldering Iron Station Digital Display

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

DOSS ZD929 SERIES SOLDERING STATIONS

These professional electronic temperature controlled soldering stations have been developed to meet the present and future needs of the electronics industry. They incorporate a sophisticated electronic circuit which enablesthe user to change the tip temperature from 160°C (320°F) to 480°C (900°F) without the need to change the tip or the heating element. The temperature is maintained within ±10° of its preset temperature.

This is made possible by an unique temperature sensor that is located near the tip. Resulting in rapid response and little temperature variation. The tip of the unit is isolated from the AC line by a transformer. Completely electronic switching and grounded tip protects voltage and current sensitive components against transient spikes sometimes caused by other units utilising mechanical switching circuits.

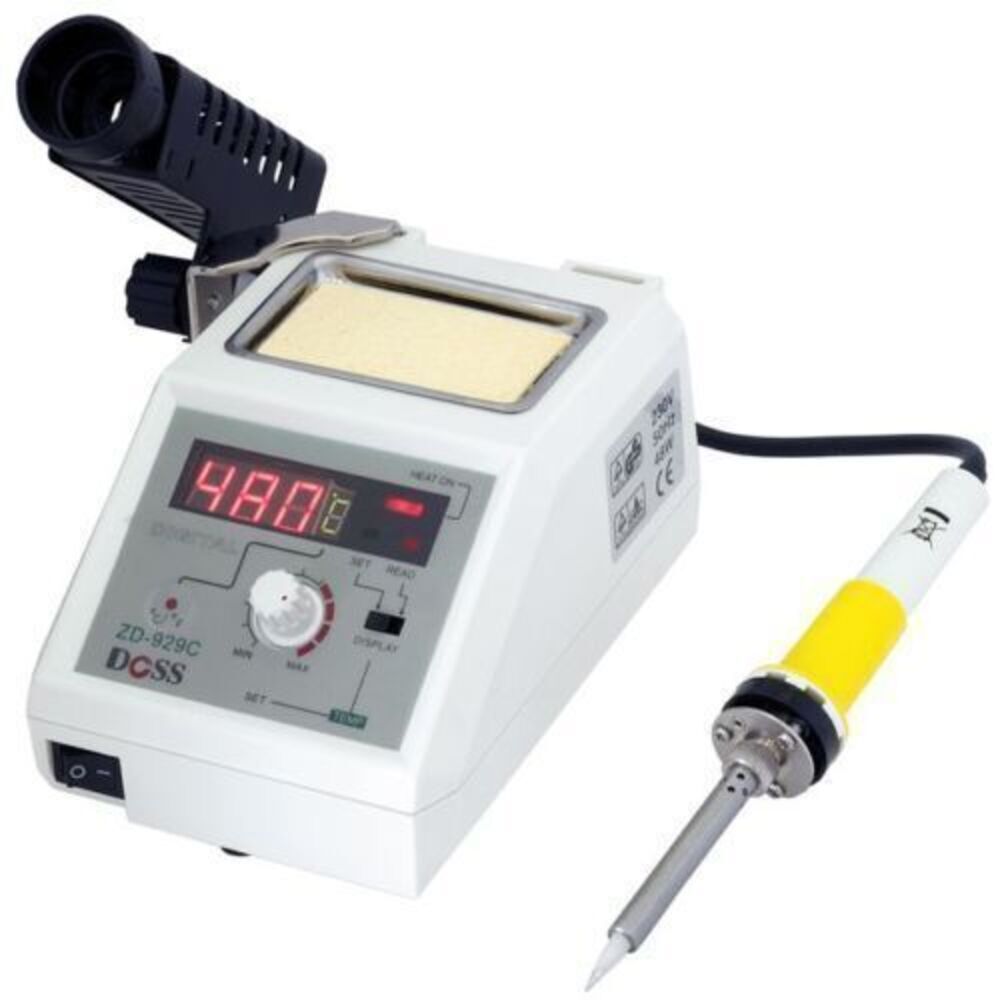

ZD929C DOSS Soldering Station with Digital Display


This unit incorporates a digital LED temperature readout which accurately indicates the temperature of the tip.

  • Professional soldering station 48W (160 ~ 480°C)
  • Voltage Supply: 240V AC
  • Set/Read temperature switch
  • Accurate digital temperature display
  • °C/°F digital display switch
  • Soldering Iron Length: 198mm
  • Station: L 170 x W 116 x H 96 mm



(ZD929C)

This item comes with a 12 month Warranty

DOSS ZD929 SERIES SOLDERING STATIONS  These professional electronic temperature controlled soldering stations have been developed to meet the present and future needs of the electronics industry. They incorporate a sophisticated electronic circuit which enables the user to change the tip temperature from 160C (320F) to 480C (900F) without the need to change the tip or the heating element. The temperature is maintained within 10 of its preset temperature.  This is made possible by a unique temperature sensor that is located near the tip. Resulting in rapid response and little temperature variation. The tip of the unit is isolated from the AC line by a transformer. Completely electronic switching and grounded tip protects voltage and current sensitive components against transient spikes sometimes caused by other units utilising mechanical switching circuits. ZD929C DOSS Soldering Station with Digital Display    This unit incorporates a digital LED temperature readout which accurately indicates the temperature of the tip.  Professional soldering station 48W (160 ~ 480C)  Voltage Supply: 240V   Set/Read temperature switch  Accurate digital temperature display  C/F digital display switch  Soldering Iron Length: 198mm  Station: L 170 x W 116 x H 96 mm
Model # ZD929C
Barcode # 9328202002068
Brand DOSS
Shipping Weight 2.0000kg
Shipping Width 0.210m
Shipping Height 0.220m
Shipping Length 0.090m
Shipping Cubic 0.004158000m3
Type Soldering Iron Station
