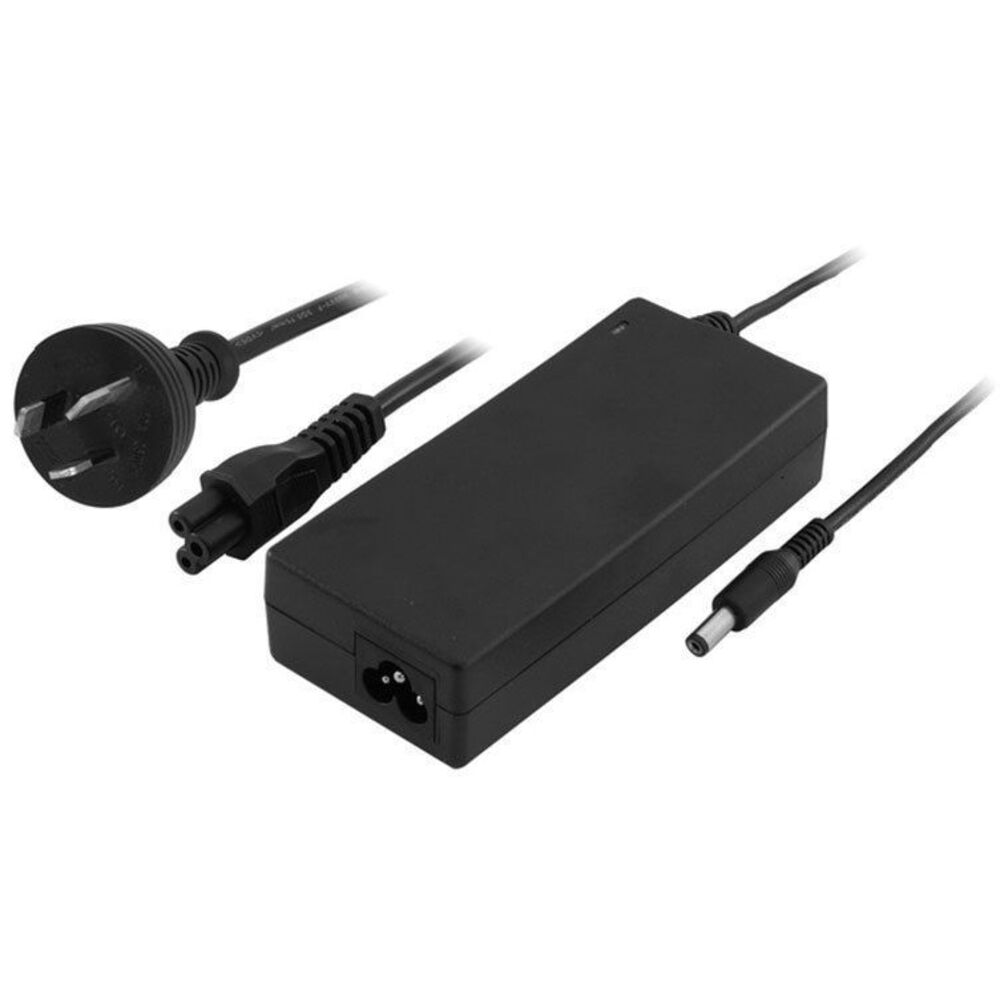

Doss SM2030 20V DC 3A Power Supply For Laptop

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

  • Output Voltage: 20V
  • Output Current: 3A
  • Total output power: 60 Watts
  • 2.1mm DC Plug
  • 1.8m K9 IEC lead included
  • Fully Australian Approved
  • Short circuit protection: A short circuit placed on DC output cause no damage or auto-recovery to the power supply.
  • Over Volatage protection: When overvoltage occurs on DC output cause no damage or auto-recovery to the power supply

(SM2030)

This item comes with a 12 month warranty

Input:

  • Input voltage rating: 100-240V AC
  • Input voltage range: 90-264V AC
  • Input frequency rating: 60/50 Hz
  • Input frequency range: 63/47 Hz
  • AC input current: 1.8 A Max. @100V AC
  • AC input power saving: 0.3W Max.@230V AC at no load
  • Inrush Current:60 A Max .@100VAC (Cold start)
  • 90 A Max .@230VAC (Cold start)
  • Leakage current: 0.25mA Max
  • Operating temerature: 0°C-40°C
  • Storage temperature: -25°C - 85°C
  • Operating humidity" 8% to 90%
  • Storage humidity: 5% to 95%
  • Weight 277.8g

Output:

  • Output voltage: 20V
  • Max. load current: 3A
  • Min. load current: 0A
  • Output noload voltage: 20V ± 5%
  • Output full load voltage: 20V ± 5%
  • Output ripple & noise: 300mV max
Model # SM2030
Barcode # 9328202018786
Brand DOSS
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.002000000m3
