Doss 24V DC 2A Power Supply Switchmode

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

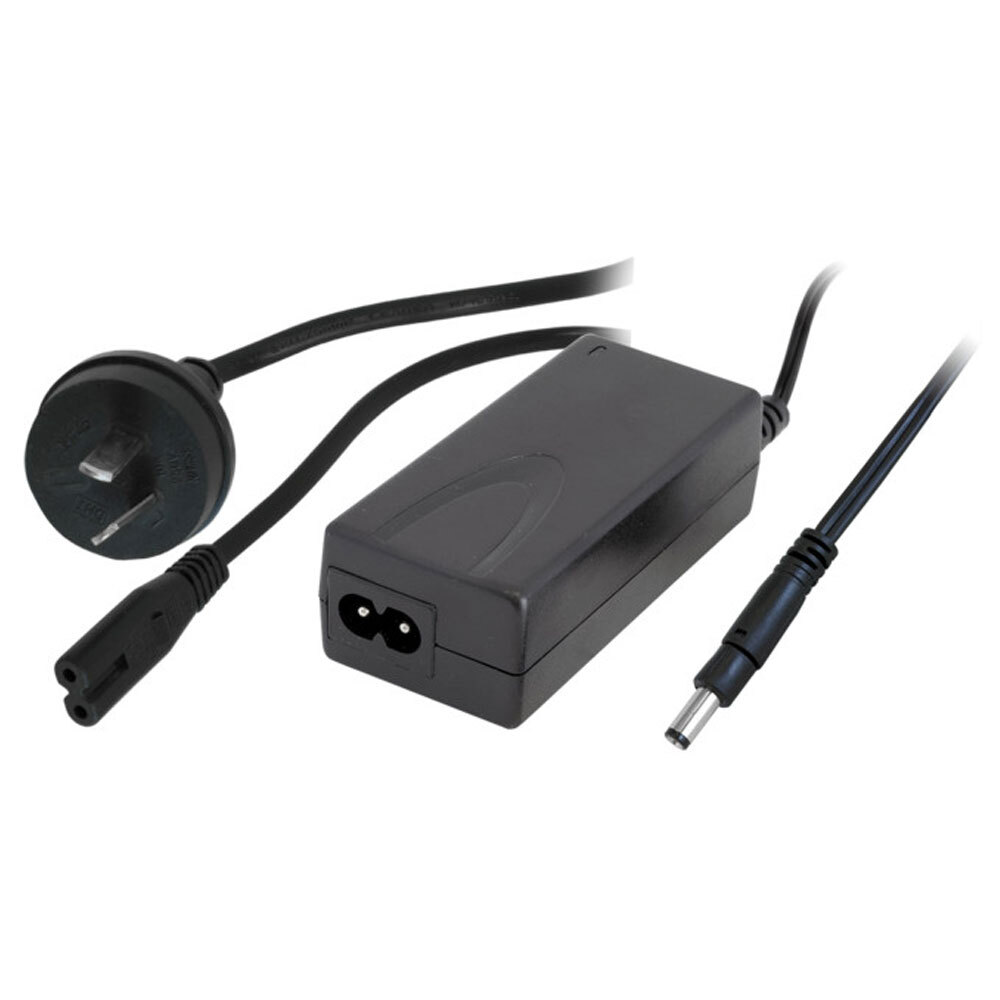

Doss 24V DC 2A Power Supply Switchmode is a super-compact regulated 24VDC power supply with a maximum current output of 2A.

  • Figure 8 (713AC) connector and 2.1mm DC jack

  • Interchangeable tip

  • AU/NZ Plug

  • Approval code: GMA-505691-EA/02

Input

  • Input Voltage Rating: 100-240V AC

  • Input Voltage Range: 90-264V AC

  • Input Frequency Rating: 60/50 Hz

  • Input Frequency Range: 63/47 Hz

  • AC Input Current: 1 A Max. @100V AC

  • AC Input Power Saving: 0.15 W Max.@230V AC at no Load

  • Inrush Current: 60 A Max.@100VAC(Cold Start)/90 A Max.@230VAC(Cold Start)

  • Leakage Current: 0.25 mA Max

Output

  • Output Voltage: 24 V

  • Max. Load Current: 2 A

  • Min. Load Current: 0 A

  • Output No Load Voltage: 24 V 5%

  • Output Full Load Voltage: 24 V 5%

  • Output Ripple & Noise: 250 mV max.

(SM2420)

This item comes with a 12-month warranty.

Interchangeable tip

Colour: Black

Model # SM2420
Barcode # 9328202007803
Brand DOSS
Shipping Weight 0.4500kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001500000m3
Type Power Supply
