MINIATURE WIDEBAND RECEIVER

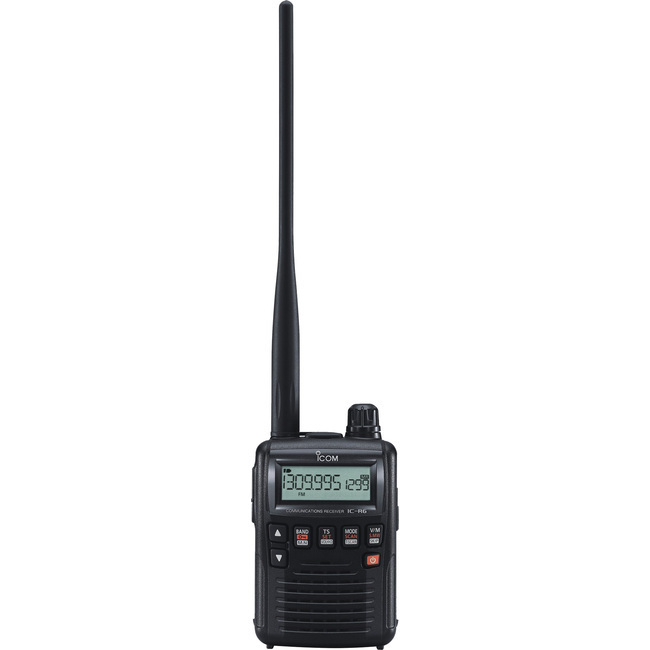

IC-R6 Miniature Wideband Communications Rece AM FM &WFM Receiver: Listen to it All! The 100 Ch/Sec Wideband Signal “Search Machine” Full frequency coverage (0.100 MHz to 1309.995 MHz) High Speed Scan (100 Ch per Second) FM WFM AM Receive Modes Internal bar-antenna (For superior AM reception) 1300 Memory Channels (22 Memory Banks) Louder, Clearer Audio Output (BTL Circuits) 15 Hours of Continuous Receive (With External Speaker) VSC (Voice Squelch Control) Auto Digital Squelch Multiple scan functions Auto Memory Write Scan (Detects & Stores Frequencies) Tone (CTCSS decode) & DTCS decode Required 2x AA Alkaline or Ni-MH cells External DC input (for desktop use & Ni-MH charging) Optional PC programming (Enter frequencies with ease) 2 Year Warranty on radio Frequency coverage : 0.100–1309.995MHz* (* Cellular blocked in the U.S.A. version.) France 0.100–29.995, 50.200–51.200, 87.500–107.995, 144–146, 430–440, 1240–1300MHz Mode : AM, FM, WFM No. of memory channels : 1300 regular, 50 scan edges and 200 auto memory write Usable temperature range :–10˚C to +60˚C ; +14˚F to +140˚F Frequency stability : ±1.0ppm (at 25˚C) Tuning steps : 5, 6.25, 8.33*, 9*, 10, 12.5, 15,20, 25, 30, 50, 100, 125, 200kHz (* Selectable depending on operating bands.) Battery requirement : 2×R6 (AA) size Ni-MH or alkaline cells (not inc.) External power supply : 4.5V DC rated (4.5–6.3V with BC-196SA/SD, CP-18A/E - not inc.) Current drain Rated audio : 130mA typ. (Ext. SP, backlight off) (at 3.0V DC) Standby 65mA typ. Power save 30mA typ. (1:4 duty) Antenna impedance : 50Ω (SMA) Dimensions (W×H×D) : 58×86×29.8 mm; (Projections not included) 29⁄32×33⁄8×13⁄16 in Weight (approx.) : 200g; 7.1oz
