Mountable Rugged Industrial 7 Port USB Hub

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Mountable Rugged Industrial 7 Port USB Hub

This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

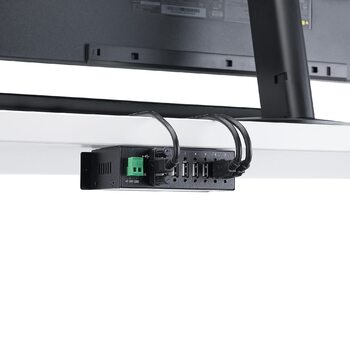

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

(ST7200USBM)

This item comes with a 24 months warranty

Packaging Information
Shipping (Package) Weight: 488 g [17.2 oz]

Performance
Device Power Consumption (In Watts): 12 Watts
ESD Protection: +/-15kV (Air) : +/-8kV (Contact)
Maximum Data Transfer Rate: Up to 480Mbps
MTBF: 170,227 Hours
Surge Protection: 350W on the DFP and UFP
Total Available Power Output (In Watts):  17.5 Watts

Physical Characteristics
Color: Black
Material: Steel
Product Height: 3.6 cm [1.4 in]
Product Length: 13.3 cm [5.2 in]
Product Width: 61.5 mm [2.4 in]
Weight of Product: 283 g [10 oz]

Power
Input Voltage: 7 ~ 24 DC
Power Source: Terminal Block

Prominence
Description CDW 75 - 1st Line: StarTech.com 7-Port Industrial USB 2.0 Hub with ESD & 350W Surge Protection

Software
OS Compatibility: OS independent; No software or drivers required

Special Notes / Requirements
System and Cable Requirements: Any computer with a USB 2.0 port

What's in the Box
Included in Package: 6 ft [1.8 m] USB-B w/screw lock to USB-A cable : DIN rail mounting bracket : Instruction Manual : Screw kit : USB 2.0 Hub

Packaging Information
Package Width: 21.6 cm [8.5 in]
Package Length: 15.1 cm [5.9 in]
Package Height: 51 mm [2 in]

Indicators
LED Indicators: Power

Hardware
Ports: 7
Interface: USB 2.0
Industry Standards: USB 2.0
Chipset ID: Terminus - FE2.1
Bus Type: USB 2.0

Environmental
Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Humidity: 5~95% RH

Connector(s)
External Ports: USB Type-A (4 pin) USB 2.0 Female : USB B (4 pin) Female : Terminal Block (2 Wire)

Model # ST7200USBM
Barcode # 065030837910
Brand STAR TECH
Shipping Weight 0.4900kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.220m
Shipping Cubic 0.001663000m3
Type Hub/Splitter Box
