Mono Passive Isolation Box

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

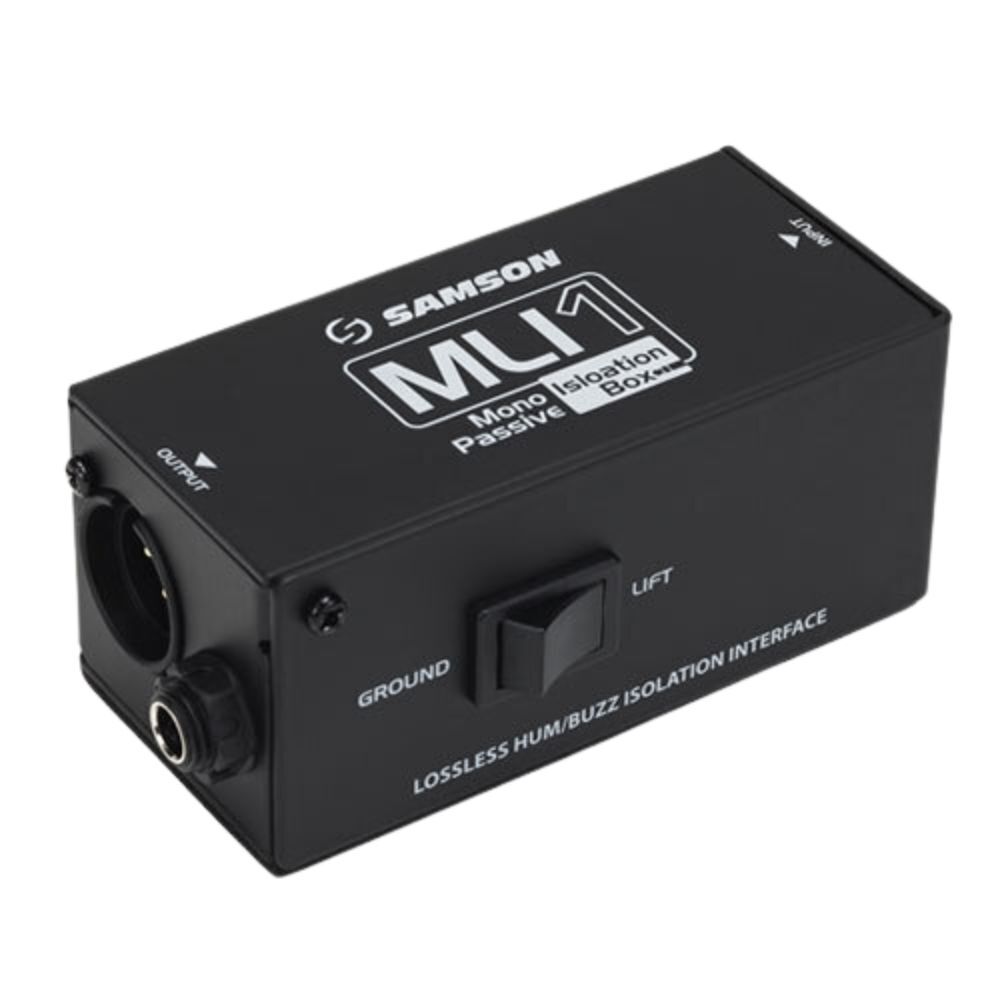

MLI1 is a line level passive isolation box designed to remove hum and buzz caused by ground loops, as well as to convert unbalanced signals to balanced signals for long cable runs.

Combining premium sound circuitry with durable, roadworthy construction, the MLI1 provides high-quality signal connection solutions for live, broadcast and studio applications.

The Ground Lift switch disconnects the ground from the Input and Output connections which eliminates hum caused by ground loops.

Features:

  • Mono line isolation box eliminates hum and buzz caused by ground loops

  • Samson STL transformer isolates input and output signals

  • Flexible connectivity with 1/4" and XLR input and output connections

  • Ruler flat frequency response from 10Hz–35kHz

  • All-metal, impact resistant design

Includes:

  • 1x Mono Passive Isolation Box

(29-MLI1)

Standard Consumer Warranty
The Ground Lift switch disconnects the ground from the Input and Output connections which eliminates hum caused by ground loops.

  • Colour: Black

  • Dimensions: 110 x 54 x 46mm

  • Frequency Response: 10Hz–35kHz (±0.2dB typical), up to 75kHz (-1dB)

  • Dynamic Range: >140dB

  • Maximum Input: +15dBu @ 41Hz for <1% THD+N

  • Gain: +0.2dB

  • Rejection: 50/60Hz 126dB typical

  • Equivalent Input Noise: -115dBu

  • Intermodulation Distortion: 0.003%

  • Total Harmonic Distortion: 0.0006%

  • Input Impedance: 7.7kΩ

  • Output Impedance: 600Ω nominal

  • Ground Lift: Disconnects ground from input to output connectors. Case is always grounded to outputs.

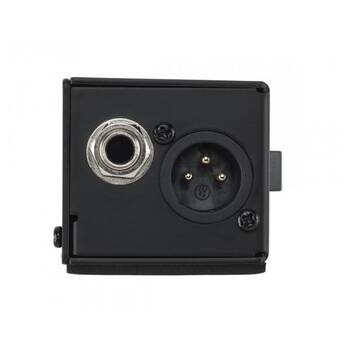

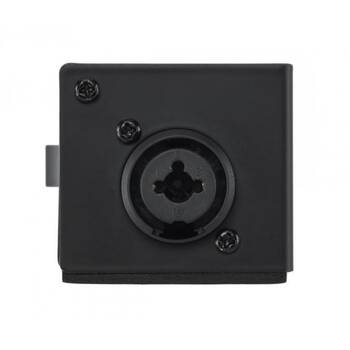

  • Connectors: Input: XLR-1/4" combo, Output: XLR + 1/4" TRS

  • Chassis Construction: Powder coated, 14-gauge steel

  • Weight: 0.7lb / 0.32kg

Model # 29/MLI1
Barcode # 809164022329
Brand SAMSON
Shipping Weight 0.3000kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.000504000m3
Type Passive Direct Boxes
