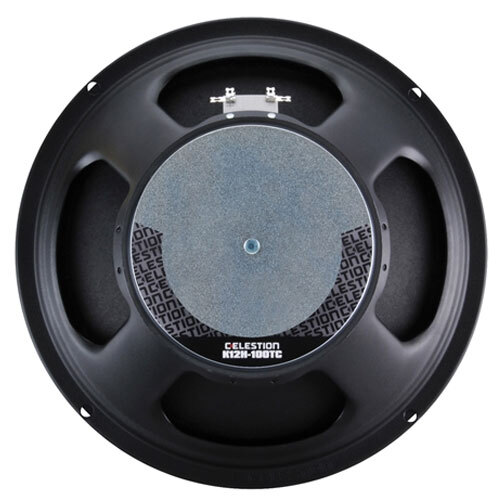

Celestion T5402: 12" + 1.75" 100W Twin Cone 8 Ohm

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

12" twin cone drive unit with extended high frequency response.

1.75" high temperature copper voice coil for increased reliability and 100Wrms (AES standard) power handling.

Optimised cone neck/voice coil assembly for increased strength, minimising high frequency distortion and improving sound quality.

Features:

  • Nominal diameter 305mm/12in

  • Power rating 100Wrms

  • Nominal impedance 8O

  • Sensitivity 97dB

  • Frequency range 50-10,000Hz

  • Voice coil diameter 45mm/1.75in

  • Chassis type Pressed steel

  • Magnet type Ferrite

  • Magnet weight 1.41kg/50oz

  • Coil material Round copper

  • Former material Kapton

  • Cone material Kevlar loaded paper

  • Surround material Cloth-sealed

  • Suspension Single

  • Xmax 1mm/0.04in

  • Gap depth 8mm/0.31in

  • Voice coil winding width 10mm/0.39in

Includes:

  • 1x Celestion 12" + 1.75" 100W Twin Cone 8 Ohm

(28-K12H-100TC)

Standard Consumer Warranty
Optimised cone neck/voice coil assembly for increased strength, minimising high frequency distortion and improving sound quality.

  • Colour: Black

  • Power Rating: 100W

Model # 28/K12H-100TC
Barcode # 739894540247
Brand CELESTION
Shipping Weight 5.0000kg
Shipping Width 0.330m
Shipping Height 0.160m
Shipping Length 0.340m
Shipping Cubic 0.017952000m3
Type Repair Kit
