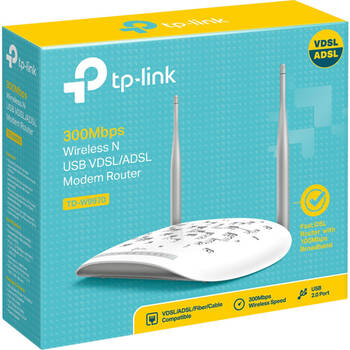

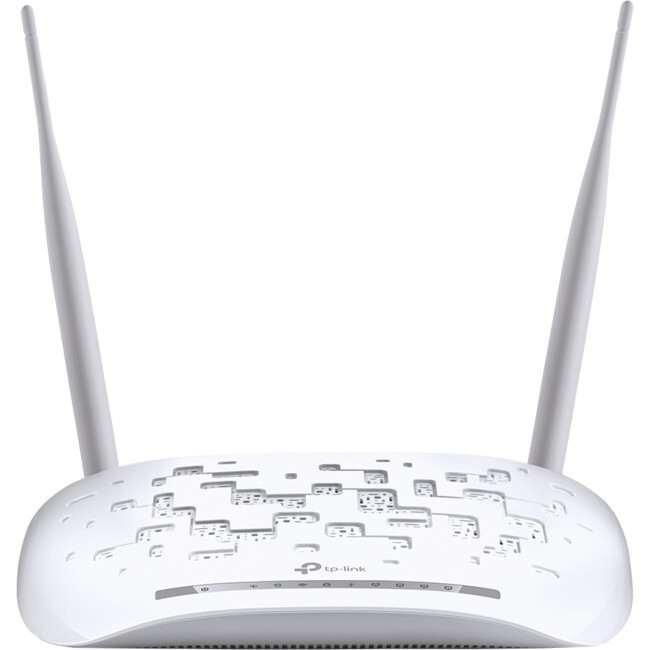

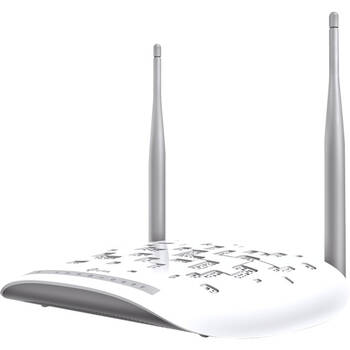

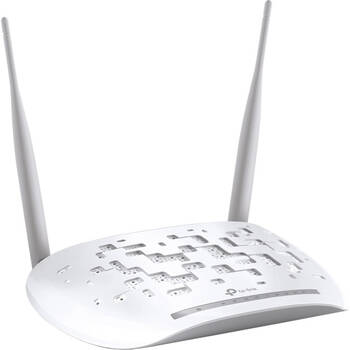

N300 VDSL MODEM ROUTER W/ USB

N300 VDSL MODEM ROUTER W/ USB

Superfast VDSL Modem Router

VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs.

*The TD-W9960 is compatible with VDSL2, ADSL2+, ADSL2 andADSL.

HARDWARE FEATURES

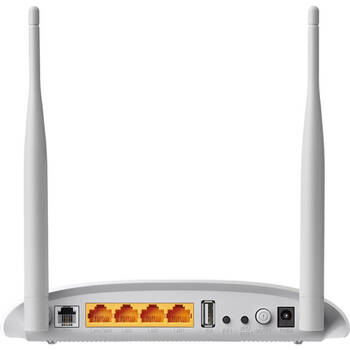

Interface
3 10/100Mbps RJ45 LAN Ports
1 10/100Mbps RJ45 LAN/WAN Port
1 RJ11 Port
Button
WPS Button
RESET Button
Power ON/OFF Button
External Power Supply
9VDC/0.6A
IEEE Standards
IEEE 802.3, 802.3u
VDSL2 Standards
ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
Dimensions (W x D x H)
181.6*129.7*36.2mm
Antenna Type
Omni directional, Fixed
Antenna Gain
2 x 5dBi
WIRELESS FEATURES

Wireless Standards
IEEE 802.11b, 802.11g, 802.11n
Frequency
2.400-2.4835GHz
Transmit Power
<20dBm(EIRP)
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering
SOFTWARE FEATURES

Quality of Service
WMM, Bandwidth Control (IP QoS)
Security
NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address Binding
Operating Modes
VDSL/ADSL Modem Router, Wireless Router,
Management
Web Based Configuration (HTTP), Remote management,CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
Port Forwarding
Virtual Server, Port Triggering, DMZ, ALG, UPnP
VPN Pass-Through
IPSec VPN
Protocols
Supports IPv4 and IPv6
ATM/PPP Protocols
PPPoE (RFC2516)
PPPoA (RFC 2364)
MERIPoE (RFC 1483 Routed)
IPoA (RFC1577/2225)
Bridge (RFC1483 Bridge)
Advanced Features
Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
APP: Tether App
OTHERS

Certification
CE, RoHS
Package Contents
TD-W9960
External DSL Splitter
RJ-11 DSL Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access)
Environment
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
