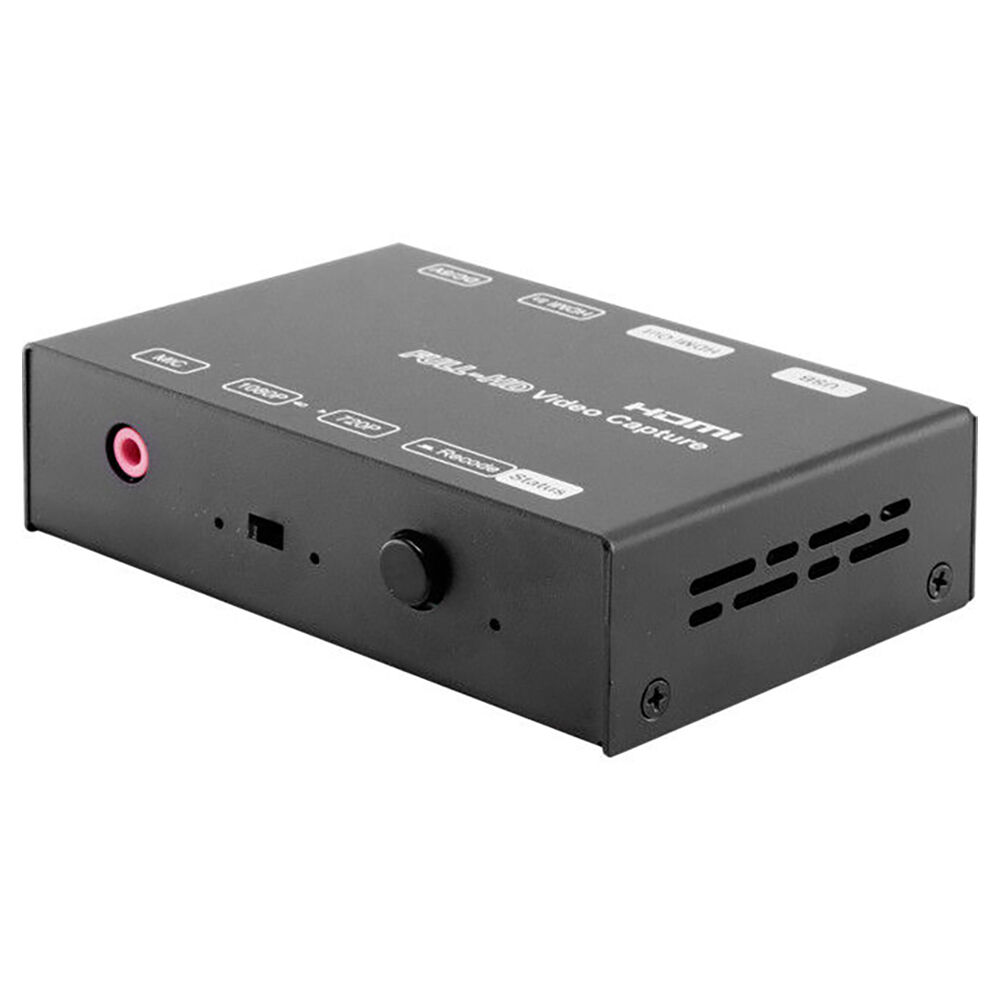

Pro2 1080P Full HD Video Capture Recording Device Hub w/ HDMI Input Black

HDVC01 PRO2 1080P FULL HD VIDEO CAPTURE

Are you a console gamer and want to share your moves, or is your PC taking CPU taking a hit while recording your gameplay? Perhaps you are selling AV equipment and want to record professional walk-throughs of your product's menus. Don't resort to pointing a camera at a screen! The Pro.2 HDVC01 records your HDMI video input — up to 1080p — directly to USB storage in H.264 encoding: no computer required.

Note: HDVC01 doesn't support live streaming

Features

  • Supports HDMI signal source of PlayStation 4, Xbox One and Xbox 360 game play in brilliant 1080p @ 60Hz with advanced H.264 encoding.

Note: The HDVC01 cannot record any signal that has HDCP (High Definition Copy Protection). On some consoles like the PS4, you have the ability to turn off HDCP in the settings, but on some, like the PS3, you are not able to. Please confirm that your device at least has the ability to disable HDCP.

  • Recording with one-click, easy to use. It doesn't require any set up just click "RECORD" button to record your gameplay and re-click to stop recording
  • Supports NTFS/FAT32 formatted USB storage
  • Automatically split the video up to 2GB per file
  • Support record video format of MPEG-4 and audio formatof RCA L/R 3.5mm microphone input
  • Support upscale or downscale to 720P

Specifications


Operating Temperature Range −5°C to +35°C
Operating Humidity Range 5 to 90% RH (No Condensation)
Output Video Format MPEG-4
Encoder H.264
Input Resolution
  • 720×480 (60Hz)
  • 720×576 (50Hz)
  • 1280×720p (50Hz/60Hz)
  • 1920×1080i (50Hz/60Hz)
  • 1920×1080p (24Hz/25Hz/30Hz/50Hz/60Hz)
Capture Resolution
  • 720×480 (60Hz)
  • 720×576 (50Hz)
  • 1280×720p (50Hz/60Hz)
  • 1920×1080i (50Hz/60Hz)
  • 1920×1080p (24Hz/25Hz/30Hz)
Supported Audio Format LPCM (2ch)
Bandwidth 2.25Gbps
USB 2.0
Power consumption 3W (Maximum)
Dimension (L×W×H) 102.2mm × 70.1mm × 27.1mm
Net Weight 220g

Includes:
1 x Video Capture Device

(RP-09002112)

12 Months

Model # RP-09002112
Barcode # 9328202021786
Brand PRO2
Shipping Weight 0.4800kg
Shipping Width 0.270m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.002025000m3
Type HDMI Extender
