Pro2 4-Way HDMI Quad Multi-Viewer Video Seamless Switch IR w/ Remote Black

Reviews

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

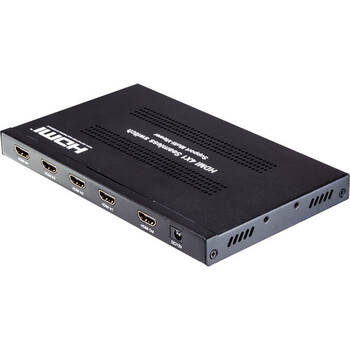

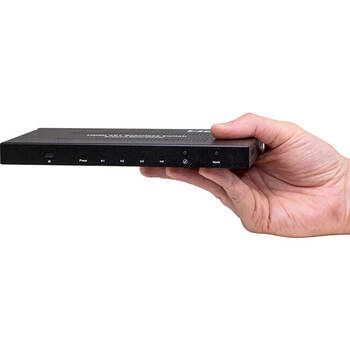

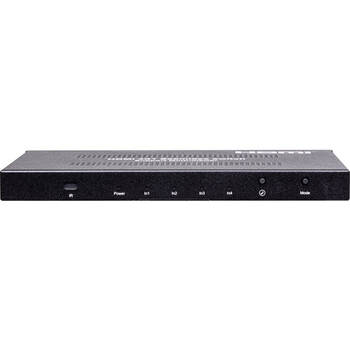

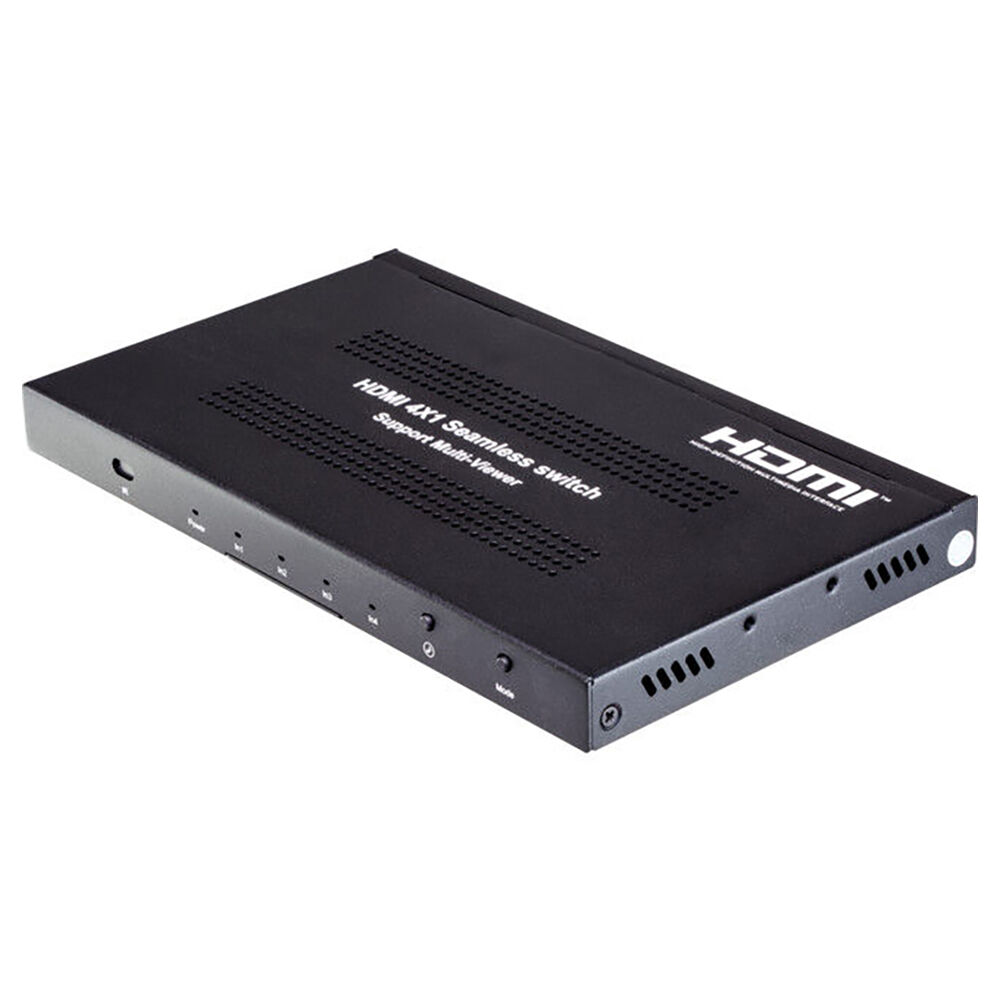

Pro2 4-Way HDMI Quad Multi-Viewer Video Seamless Switch IR w/ Remote Black

HD41QMV2 PRO2 4-WAY HDMI QUAD MULTI-VIEWER

This HD41QMV2 quad multi-viewer with a seamless switching feature allows you simultaneously and synchronously monitor/view 4 different HD video sources on a single display. Easily switch from the 5 display modes via the IR remote control or the button at the front panel.

Supports 4 x HDMI input, 1 x HDMI output, up to 1080p 60hz resolution
View 4 x HD video sources simultaneously on a single display
Seamless switching 4 x HD video sources between 5 display modes
Supports Audio Switching
IR remote control and Panel Button Control
Support audio output format: PCM2.0
Easy to mount with the mounting ears supplied

Specifications

Operating Temperature Range	0°C to +40°C (32°F to +104°F)
Operating Humidity Range	5 to 90%RH (No Condensation)
Bandwidth Frequency	4.95Gbps
HDCP	HDCP1.4

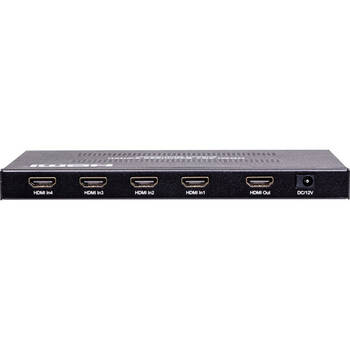

Input Ports	4 x HDMI (socket)
Output Ports	1 x HDMI outputs (socket)
TV Resolution	50Hz: 576i; 576p; 720p; 1080i; 1080p 60Hz/59.94Hz: 480i; 480p; 720p; 1080p 30/29.97/24/25Hz: 1080p
Dimensions (LxWxH)	190.4mm x 113mm x 17mm
Power Consumption	7W (Max), 12V DC 1A, power supply included
Transmission Distance	Input 8m, Output 15m (Maximum) over standard HDMI cable/26AWG
Net Weight	480g
IR Remote Control Battery	CR2025 button cell

Display modes

What's In The Box?

HD41QMV2 x 1pc
12V 1A DC Power supply x 1pc
IR remote controller x 1pc
Instruction manual x 1pc
Mounting ear x 1 pair

Includes:
1 x Video Switch

(RP-07350815)

Warranty

12 Months

Specifications

Model #	RP-07350815
Barcode #	9328202033604
Brand	PRO2
Shipping Weight	1.0000kg
Shipping Width	0.270m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.002025000m3
