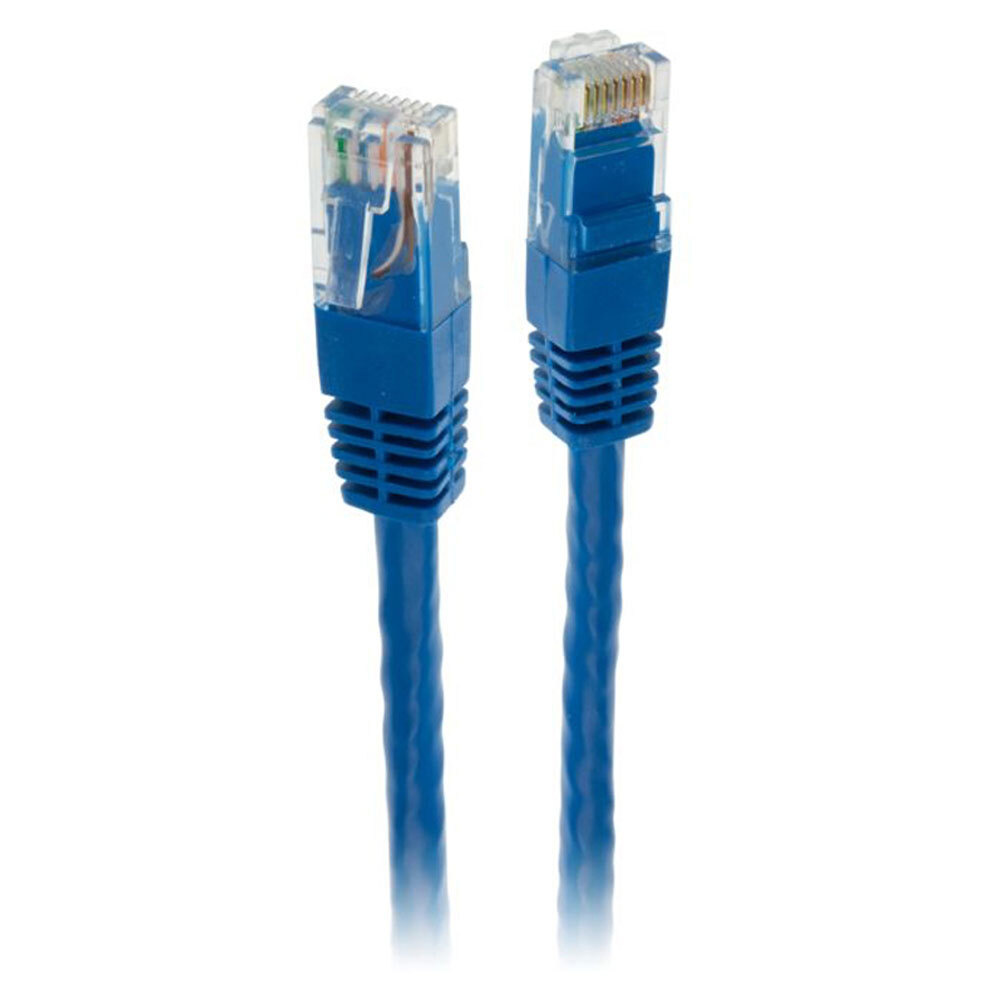

Pro2 5m CAT6 Patch Cable Lead Cord Network Ethernet Internet for PC MAC Router
or 4 payments of $4.75 with Learn more
Compared with Cat-5 and Cat-5e, Cat-6 features more stringent specifications for crosstalk and system noise
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.
Compared with Cat-5 and Cat-5e, Cat-6 features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).
To maintain transmission characteristics and network integrity, it's essential to use the correct type of patch-cord to match the installation. A network port will perform only at the level of the LOWEST-rated component in the chain.
Features:
-
UTP CAT6 Patch Lead - Each cord has eight multi-strand conductors in 4 twisted-pair T568A colour coded configuration.
-
Quality cable material - Fitted with 50µ Category-6 compliant 2-row (staggered pins) plug and fully-moulded strain-relief boot.
-
Moulded strain relief & Low profile flush moulded boots - With moulded strain relief RJ45 male-to-male connectors this cable will be strong, and robust.
-
Packaged in heat-sealed hang-sell bags.
Complies with the applicable electrical transmission characteristics and flame tests specified in:
-
AS/ACIFS008:2006
-
ISO/IEC 11801 Category 6
-
TIA/EIA-568-B.2-1 Category 6
(LC6612B)
This item comes with a 12 month warranty.
Conductor
Material Bare Copper
Size 24AWG
Construction 7/0.195±0.015mm
Insulation
Material HD-PE
Thickness Minimum at any point: 0.18mm
Maximum average: 0.20mm
Diameter: 0.96±0.03mm
Jacket
Material PVC
Thickness Minimum at any point: 0.50mm
Maximum average: 0.58mm
Diameter: 5.8±0.03mm
Category 6 Cable Standard:
-
Category 6 is a standard that aims to support transmission at frequencies up to 250 MHz over 100Ω twisted pair.
-
Supports current Category 6 applications such as 100BaseTX,100BaseVG, ATM, Gigabit Ethernet and all fast Ethernet protocols.
How to distinguish a Cat 6 plug from a Cat-5 or Cat-5E plug:
To distinguish a Cat-6 plug from a Cat-5 or a Cat-5E plug, just simply look at the way the cable's wires have been terminated at the end of the plug:
-
A Cat-5 or a Cat-5E plug will ALWAYS have all eight wires in a single row
-
The majority of Cat-6 plugs will have wires in two rows with four wires per row
-
Some Cat-6 plugs will have wires in two rows with 6 wires in the top row and 2 wires in the bottom row
Model # | LC6612B |
Barcode # | 9328202010094 |
Brand | PRO2 |
Shipping Weight | 0.1900kg |
Shipping Width | 0.140m |
Shipping Height | 0.140m |
Shipping Length | 0.030m |
Shipping Cubic | 0.000588000m3 |
Type | Cable |
