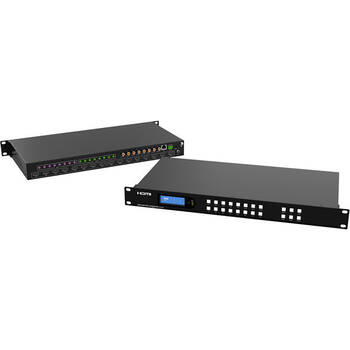

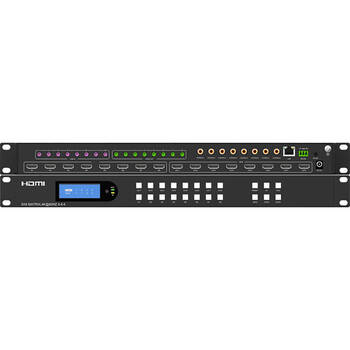

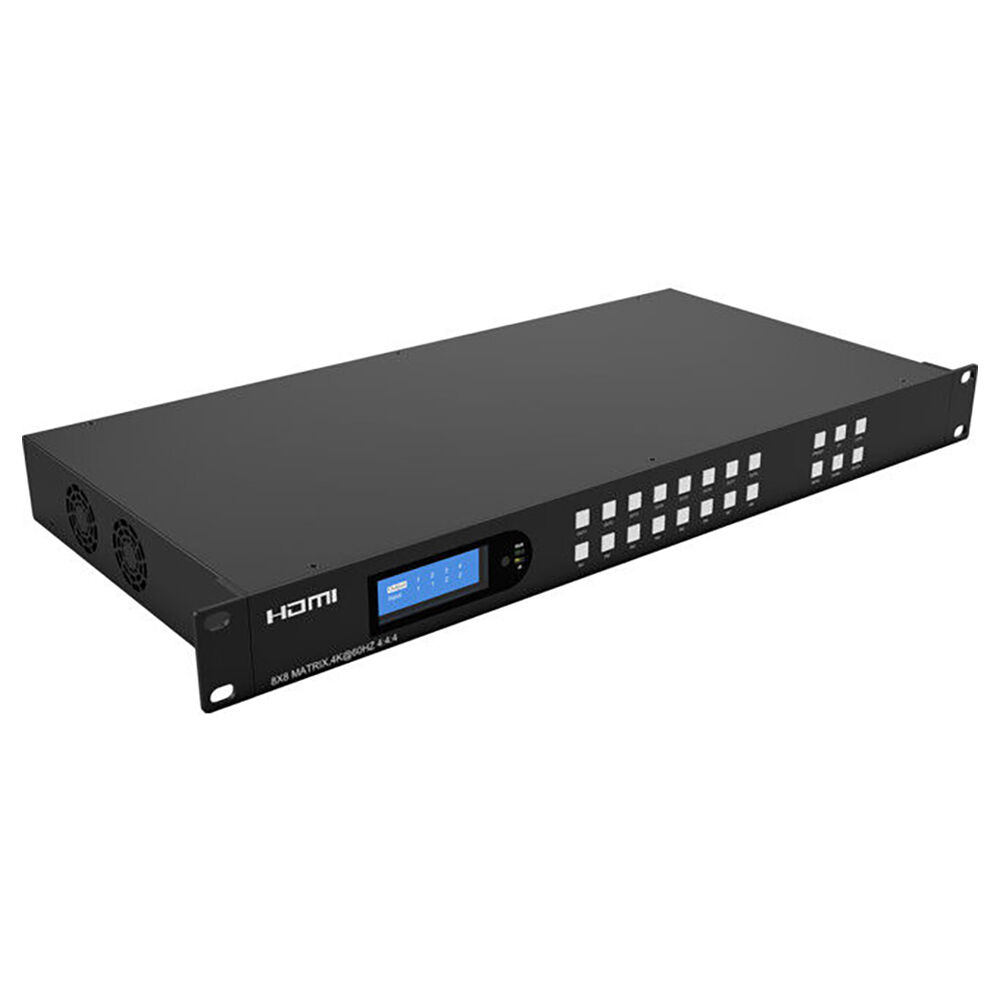

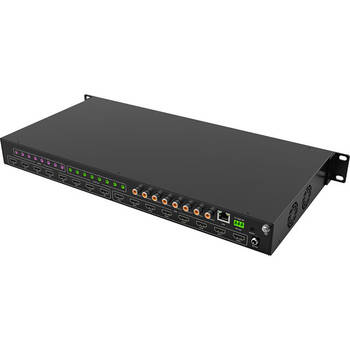

Pro2 8x8 4K HDMI2.0 Matrix AV Audio/Video Distribution Switch 18GBPS Black

Pro2 8x8 4K HDMI2.0 Matrix AV Audio/Video Distribution Switch 18GBPS Black

PMX88

This 8x8 4K HDMI Matrix is designed to deliver seamless video transmission, supporting resolutions up to 4K2K@60Hz, HDCP 2.2, and HDMI 2.0. It allows you to route video and multi-channel digital audio from 8 HDMI sources to 8 HDMI outputs, along with 8 SPDIF outputs. The matrix is compatible with high-resolution digital audio formats, including Dolby TrueHD and DTS-HD Master Audio, and supports 3D video content. Additionally, it features the ability to embed and extract analog audio through 8 analog audio inputs and 8 analog audio outputs.

Control options are versatile, supporting panel buttons, local IR, RS-232, IP, and Web GUI. Control drivers are available for many popular control systems, ensuring flexible integration. The matrix also supports HDR10, delivering an exceptional visual experience. For added convenience, the RS232 interface allows for straightforward system updates, saving time and effort for end users.

Features

• HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
• Support 3D
• Bandwidth upto 18Gbps
• HDCP1.4/2.2 compliant
• Support HDR10, HLG, Dolby Vision
• 8xHDMI Input, 8xHDMI output
• 8xAnalog audio input and 8xAnalog audio output, and 8xS/PDIF audio output
• Support Analog audio embedded and HDMI audio extraction
• Any one of the 8 Ultra HD sources to any one of the 8 Ultra HD displays
• Support LPCM2.0-5.1/16-24BIT/32-192KHZ, Dolby Atmos and DTS-X
• RS232 interface for user to upgrade firmware
• Controllable via front-panel buttons, IR remote, RS232, IP , Web GUI
• The Ethernet port supports Telnet, UDP, HTTP, and TCP/IP
• Support EDID management and ARC


Specifications

What is in the box?

• 8x8 HDMI Matrix x 1pc
• DC12V 3A power supply x 1pc
• Remote control x 1pc
• IR Ext RX Cable x 1pc
• Mounting kit x 1pc
• CD for control software x 1pc
• User manual x 1pc

Includes:
1 x AV Distribution Kit
