Pro2 Mic & Stereo Power Amplifier Kit w/ Volume Control Box 15x98mm Black

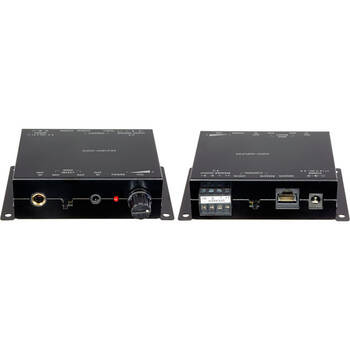

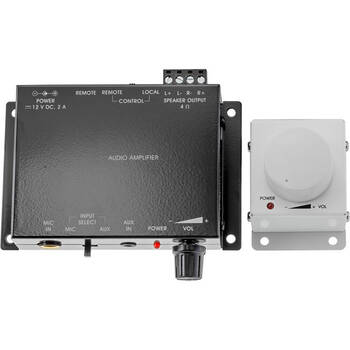

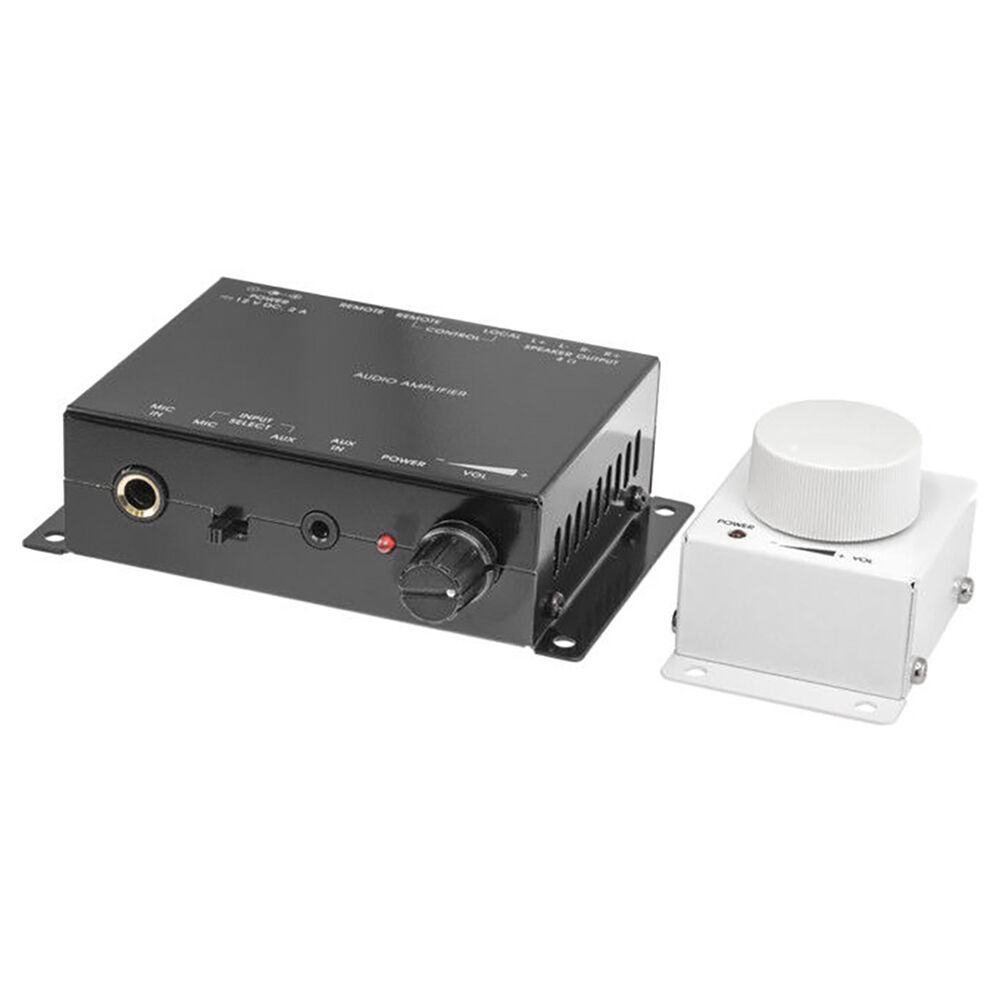

PRO1328K PRO2 MIC AND STEREO POWER AMPLIFIER

This unit is an excellent way to add an additional zone to an existing system. Compact 15W RMS stereo amplifier with selectable 3.5mm stereo or microphone inputs. Remote wired volume control.

  • 15W per channel

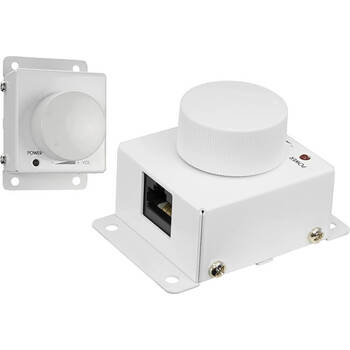

  • Speaker volume control
  • Class-D power amplifier
  • Speaker protection circuit
  • Large detachable terminal block (supplied) for quick andeasy installation.
  • Screw terminals handle wire sizes from 24 to 12 gauge.

Connections

  1. Input: 3.5mm stereo
  2. Input 6.5mm stereo – dynamic microphone
  3. Speaker Outputs: for 1 speaker pair (via screw terminals)

Specifications


Inputs Dynamic microphone or stereo audio line level
Mircophone Pre-Amplifier Gain 40dB
Speaker Audio Power Amplifier Power Amplifier Type: Stereo Class-D
Output Power 15W (rms) per channel (@ RL = 4Ω (Ohm))
THD+N 0.06% (@ RL = 8Ω (Ohm), f = 1 kHz)
Minimum Load Resistance 4Ω (Ohm)
Accessories Includes Speaker Protection circuit
Power Consumed 2A Max
Power Source 12V DC 2A (included)
Size (L×W×H) 115mm × 98mm × 31mm

Includes:
1 x Amplifier

(RP-01458307)

12 Months

Model # RP-01458307
Barcode # 9328202017277
Brand PRO2
Shipping Weight 0.5400kg
Shipping Width 0.150m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000600000m3
Type Distribution Amplifier
