Pro2 SM OS2 Fibre Patch Network Cable Roll For Subscriber Connector 100M

FIB100M PRO2 SM OS2 FIBRE CABLE – 100M ROLL

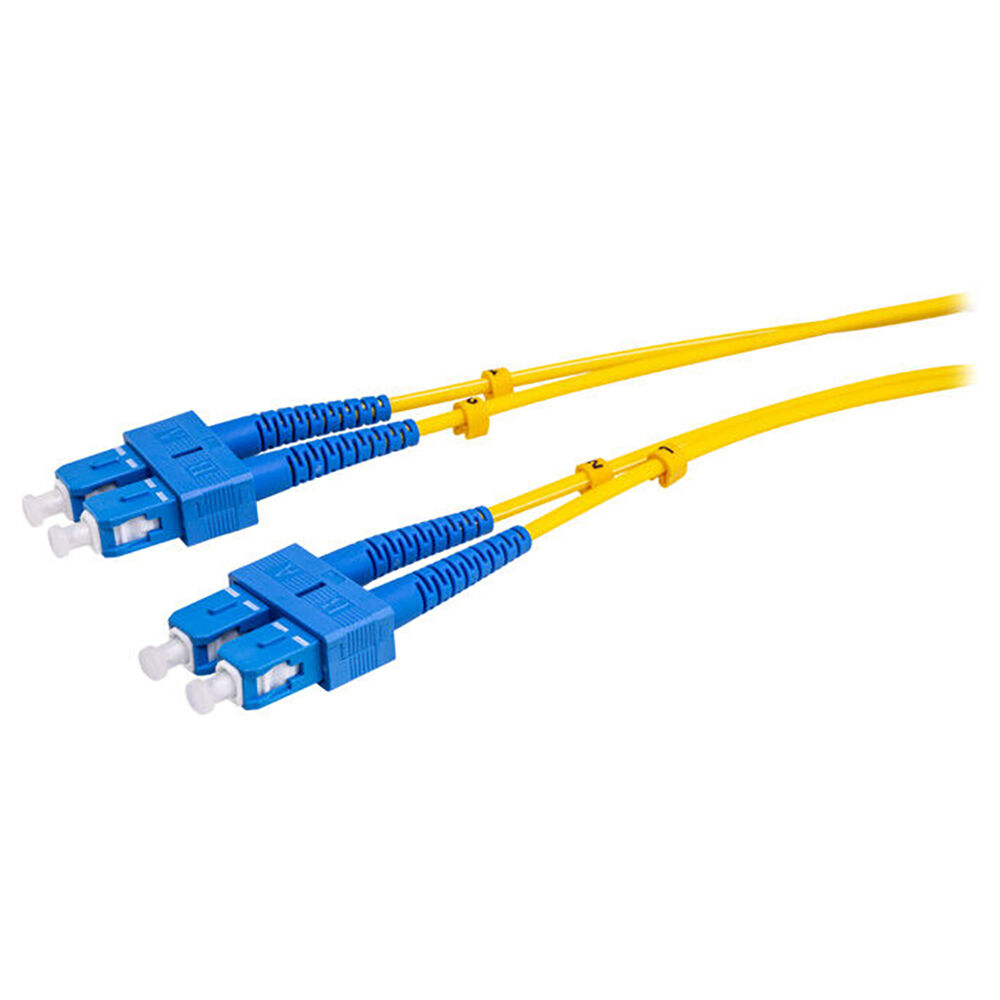

SC Fibre Optic Patch Cord stands for Subscriber Connector – a general purpose push/pull style connector. SC has an advantage in duplexibility to support send / receive channels. SC Connectors are frequently used for newer network applications.

The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5mm ferrule and molded housing for protection.

  • Superior qualified standard PC / UPC / APC polishing
  • Compliant with Telcordia GR-326-Core, TIA / EIA and IEC
  • 100% optic test (Insertion Loss & Return Loss)
  • Single mode, Duplex
  • Comply to IEC Standard
  • Flexible boot are available
  • G652D OS2 standard
  • PVC / LSZH

Applications

  • High Speed and volume Fibre Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fibre Optic Instrumentation

Specifications

Patch Cord/Pigtail


Type SC/UPC to SC/UPC Single Mode Duplex 3.0mm
Insertion loss
  • A1: 0.17dB
  • A2: 0.10dB
  • B3: 0.13dB
  • B4: 0.07dB
Return Loss
  • A1: 52.3dB
  • A2: 51.8dB
  • B3: 52.0dB
  • B4: 52.1dB
Repeatability ≤0.1dB
Durability ≥1000 matings
Operating Temperature −40°C to +80 °C
Tensile Strength(N)
  • ≥90N (f3)
  • ≥70N (f2)
Cable Length 100m

Includes:
1 x Fibre Cable Roll

(RP-05060860)

12 Months

Model # RP-05060860
Barcode # 9328202021090
Brand PRO2
Shipping Weight 1.9400kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.007500000m3
Type Single Mode
