Pro2 SM OS2 Fibre Patch Cable w/ LC Connector Roll For LAN/Network 150M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

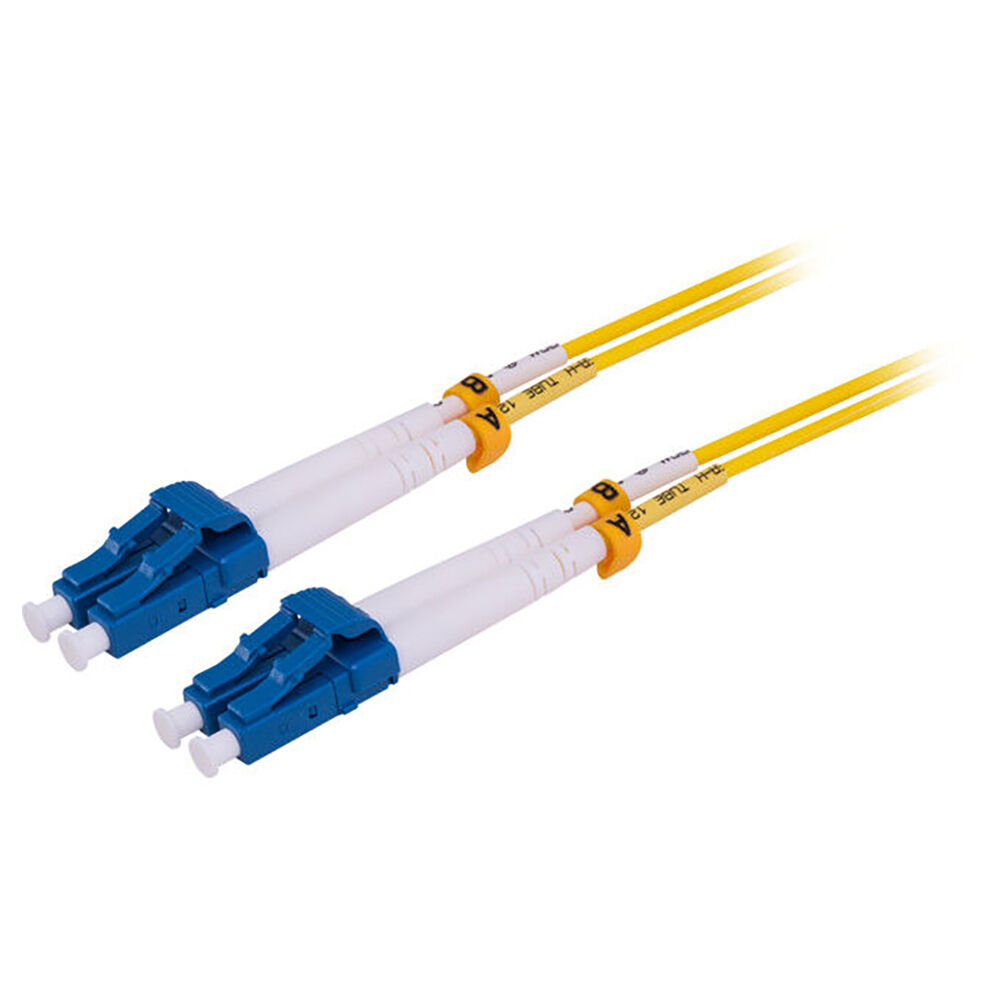

Pro2 SM OS2 Fibre Patch Cable w/ LC Connector Roll For LAN/Network 150M

FIB150MLC PRO2 SM OS2 FIBRE CABLE – 150M ROLL

LC Fiber Optic Patch Cord stands for Lucent Connector. The LC is a small form-factor fiber optic connector. LC connector uses a 1.25mm ferrule, half the size of the ST. Also, it is a standard ceramic ferrule connector. The LC has good performance and is highly favoured for single mode.

  • Superior qualified standard PC / UPC / APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
  • 100% optic test (Insertion Loss & Return Loss)
  • 3.0mm cable
  • Duplex
  • Comply to IEC Standard
  • G652D OS2 standard
  • Flexible boot are available
  • PVC / LSZH

Applications

  • High Speed and volume Fiber Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fiber Optic Instrumentation

Specifications

Patch Cord/Pigtail


Type Single mode (UPC) Single mode (APC) Multi-mode (PC)
Insertion Loss 0.2dB 0.2dB 0.2dB
Return Loss 50dB 60dB 35dB
Repeatability 0.1dB
Durability 1000 matings
Operating Temperature −40°C to +80°C
TensileStrength(N) 90N (f3), =70N (f2)

Includes:
1 x Fibre Cable Roll

(RP-05060890)

12 Months

Model # RP-05060890
Barcode # 9328202021120
Brand PRO2
Shipping Weight 1.8500kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.007500000m3
Type Single Mode
