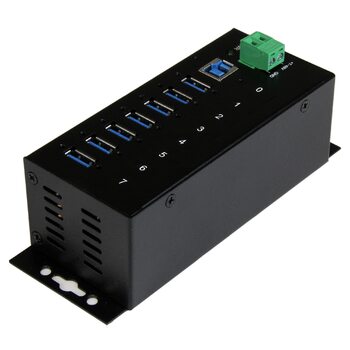

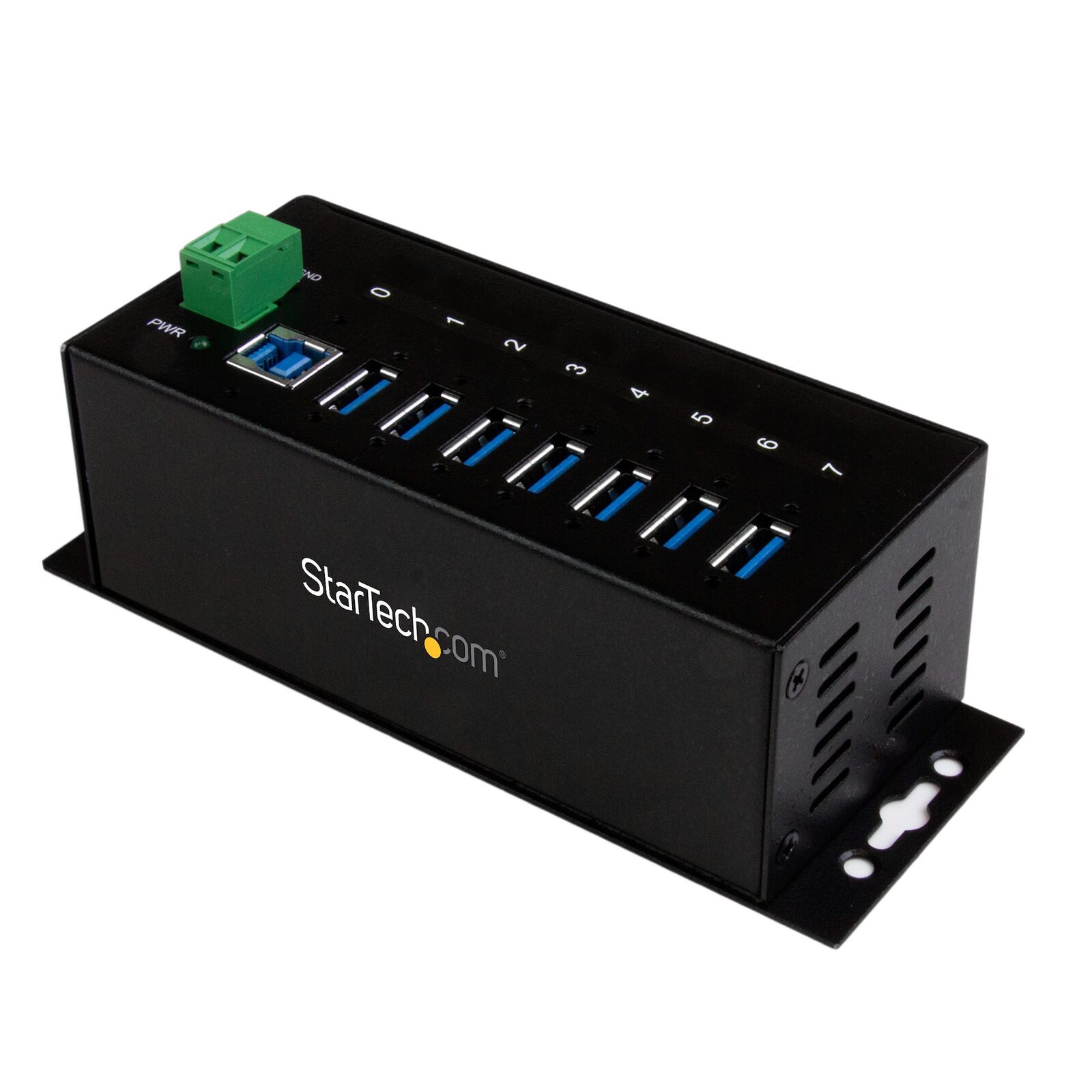

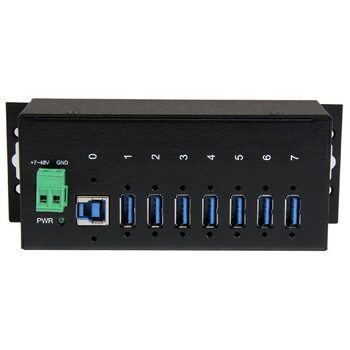

Rugged Metal 7Port USB 3.0 Hub - DIN Rail & Wall-mountable

This TAA compliant 7-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

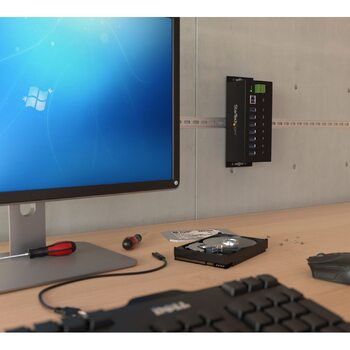

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.

(ST7300USBME)

This item comes with a 24 months warranty

Thisindustrial USB hubdelivers reliable performance with a metal, heavy-duty housing

Packaging Information
Package Height: 69 mm [2.7 in]
Package Length: 19 cm [7.5 in]
Package Width: 29.5 cm [11.6 in]
Shipping (Package) Weight: 629 g [22.2 oz]

Performance
Device Power Consumption (In Watts): 41 Watts
ESD Protection: +/-15kV (Air) : +/-8kV (Contact)
Maximum Data Transfer Rate: 5 Gbps
MTBF: 126,106 Hours
Surge Protection: 350W on the DFP and UFP
Total Available Power Output (In Watts):  31.5 Watts
Type and Rate: USB 3.0 - 5 Gbit/s

Physical Characteristics
Color: Black
Form Factor: Industrial
Material: Steel
Product Height: 4.5 cm [1.8 in]
Product Length: 14.5 cm [5.7 in]
Product Width: 54 mm [2.1 in]
Weight of Product: 325 g [11.5 oz]

Power
Input Voltage: 7 ~ 48 DC
Power Source: Terminal Block

Prominence
Description CDW 75 - 1st Line: StarTech.com 7-Port Industrial USB 3.0 Hub with ESD & 350W Surge Protection

Software
OS Compatibility: OS Independent; No additional drivers or software required

Special Notes / Requirements
Note: If connected to a USB 2.0 host port, performance may be limited : This product is intended for use with terminal block power only – Standard AC adapter not available
System and Cable Requirements: Host computer with an available USB 3.0 port

What's in the Box
Included in Package: 7 Port Industrial USB 3.0 Hub : DIN Rail Mounting Kit : Instruction Manual : Terminal Block (2 Wire) : USB 3.0 A - B Cable

Indicators
LED Indicators: Power (Green)

Hardware
USB-C Host Connection: No
USB-C Device Port(s): No
Ports: 7
Interface: USB 3.0
Industry Standards: USB Battery Charging Specification Rev. 1.2
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Fast-Charge Port(s): Yes
Chipset ID: Genesys Logic - GL3520
Bus Type: USB 3.0

Environmental
Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Humidity: 5%~95% RH (Non-condensing)

Connector(s)
Connector Type(s): USB Type-B (9 pin) USB 3.0 Female : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : Terminal Block (2 Wire)

Model # ST7300USBME
Barcode # 065030860352
Brand STAR TECH
Shipping Weight 0.6300kg
Shipping Width 0.190m
Shipping Height 0.070m
Shipping Length 0.300m
Shipping Cubic 0.003867000m3
Type Hub/Splitter Box
