SPECIAL EDITION RED UHF

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

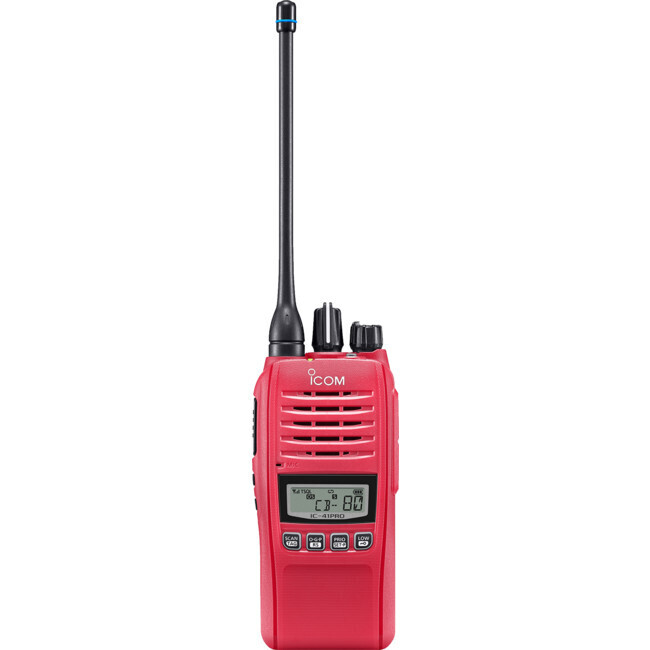

IC41PRO-RED IP67 80CH UHF HAND HELD RADIO - ICOM The Waterproof Handheld UHF CB 80 Channel UHF CB (*) Waterproof and dustproof (IP67) 5 year warranty on radio 18hr typ. operating time with BP280 Simple operation New rotary Channel Selector/Squelch control Voice announcement of channel number VOX capability with optional headset options Scrambler capability built in (**) Receive only Channels (**) ? up to 35 Unique repeater scan plus open, group and priority scan In-range indicator (ATS) Output power 5 Watts (low power 1 Watt) Built-in CTCSS/DCS (providing silent stand-by) Selective Calling (SELCALL) Duplex operation, providing repeater access Compact and rugged construction (based on a commercial product) Number of conventional channels: 128 ch Type of emission: W: 16K0F3E (25.0kHz) AUS CB N: 8K50F3E (12.5kHz) AUS CB Antenna impedance: 50 ohms Input impedance (MIC): 2.2k ohms Output impedance (audio): 8 ohms Intermediate frequency: 1st 46.35 MHz, 2nd 450 kHz Operating temperature range: ? 30 ? to + 60 ? Power supply voltage: 7.5 V DC Current drain (approx.) Receive stand-by 80 mA Receive max.audio 300 mA (INT SP) Transmit Hi (5W) 1.7 A AUS CB Dimensions: W 52.2 x H 111.8 x D 30.3 mm (with BP-280) Weight: 270 grams (with BP-280) approx. Transmitter Rated output power 5 W ? Modulation: Variable reactance frequency modulation Maximum permissible deviation ±2.5 kHz (N) ±4.0 kHz (M) ±5.0 kHz (W) Frequency error: ±2.5 ppm Spurious emissions: 70 dB min Adjacent channel power: 60 dB min 69 dB typ. (N) 70 dB min 74 dB typ. (W) Audio harmonic distortion: 1.0% typ. @ AF 1 kHz 40 % Deviation (W,M) 1.5% typ. @ AF 1 kHz 40 % Deviation (N) Limiting characteristic of modulator: 60 % ~ 100 % ofmax. deviation "Includes:1x Antenna FA-SC72U 1x Belt clip MB-133 1x Battery charger BC-213 1x AC adaptor BC-123SV 1x Battery pack BP-280

(IC41PRO-RED)

This item comes with a 12 months warranty

Waterproof and dustproof (IP67)
Model # IC41PRO-RED
Barcode # 4909723144007
Brand ICOM
Shipping Weight 0.7100kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.005000000m3
Type Calling System
