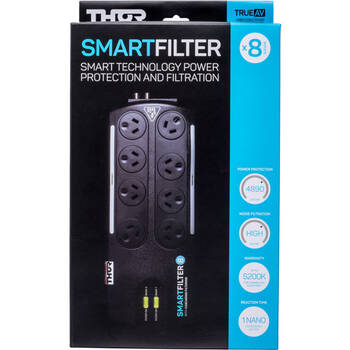

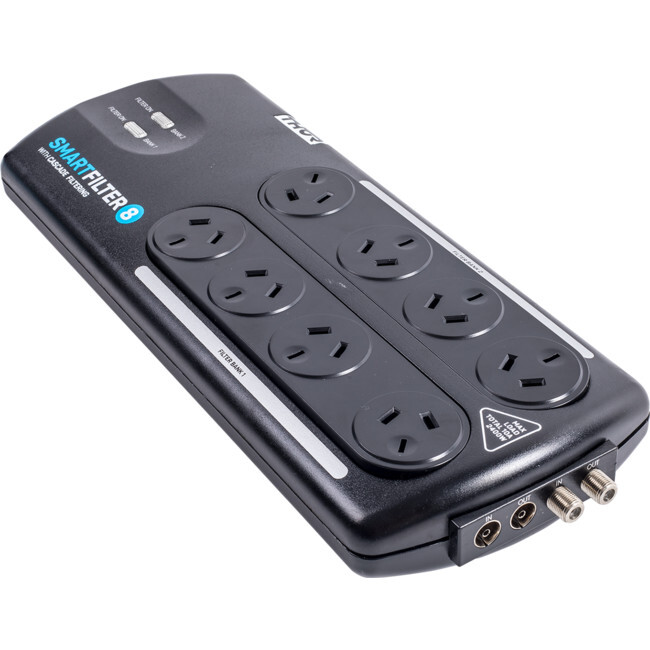

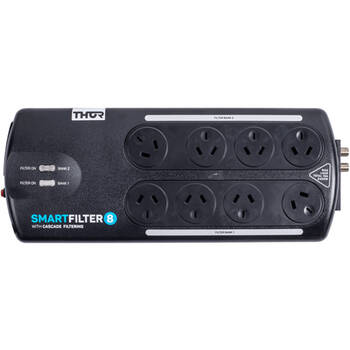

THOR SMART FILTER 8 SMART TECHPOWER PROTECTION & FILTRATION

Standard Consumer Warranty

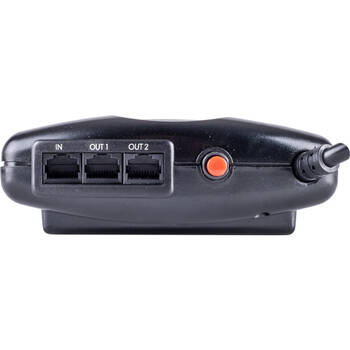

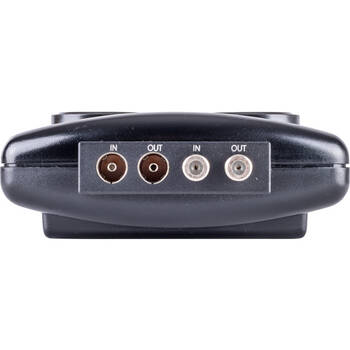

Thor Smart Filter 8 Smart Techpower Protection & Filtration Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W) Supply voltage 240/V AC 50/Hz Maximum current rating 10amps/2400 W (VA) Clamping voltage 275 V AC Reaction time less than 1 nanosecond Maximum transient spike impulse current 196,000 amps(equivalent to 49,000 amps using UL1449 standard) Maximum energy dissipation 4890 Joules (equivalent to 1750 Joules using UL1449 standard) Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth) EMI/RFI noise reduction filter type. Cascade dual bank isolation with 2 cascading circuits Number of multi-stage filter banks: 2 Number of isolated banks: 2 Number of dedicated outlets: 4+4 Total number of protected AC outlets: 8 RJ 45 data protection: 1 in and 2 out AV/TV Connection: In and out Cable TV ‘F’ type connection: In and out Earth potential rise protection Earth leakage range less than 1 milli amp Operating conditions: Indoor/AC mains Operating temperatures: -10C/+60C Cable length: 1.8m
