USB LPR Print Server with 10Base-T/100Base-TX Auto-sensing

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

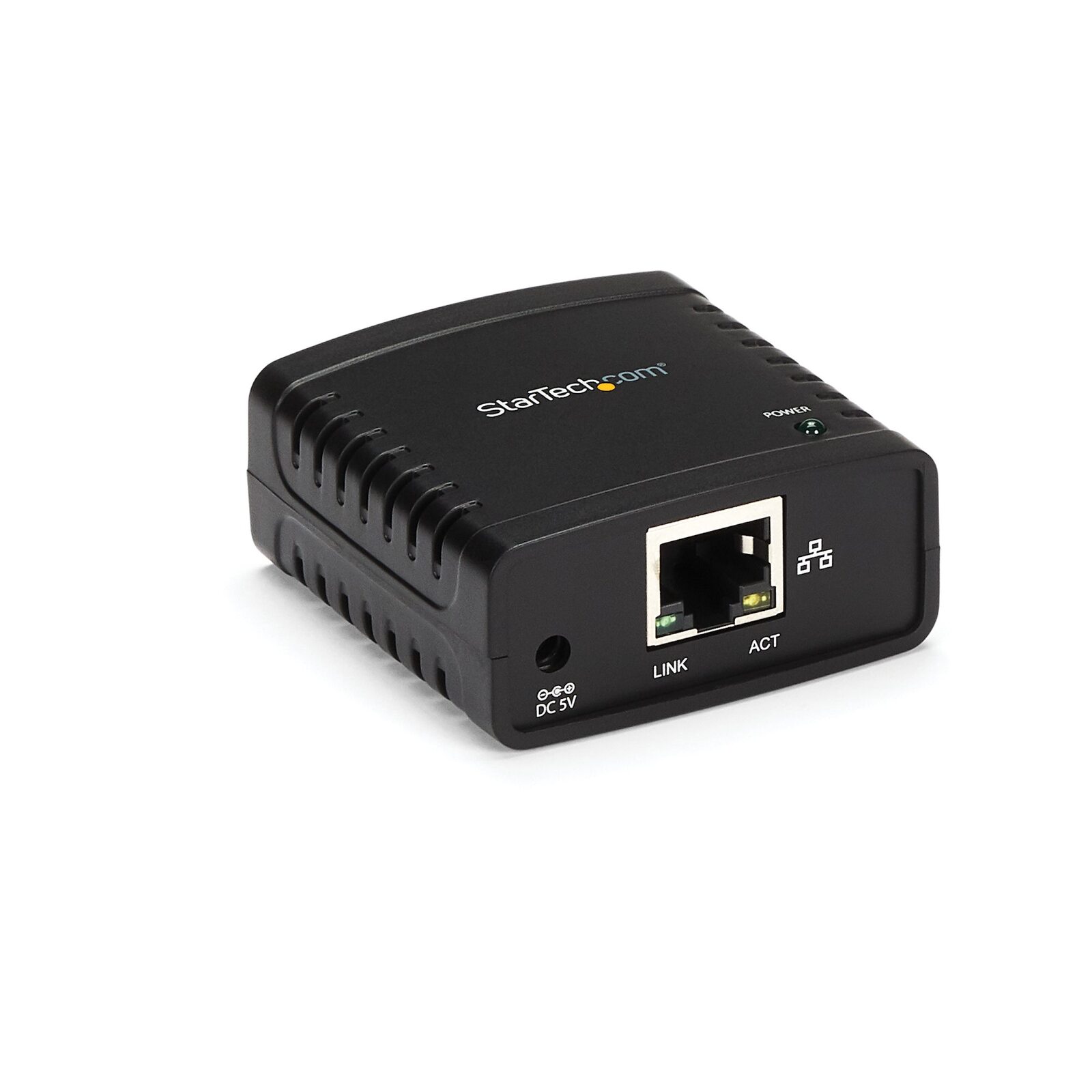

USB LPR Print Server with 10Base-T/100Base-TX Auto-sensing

This palm-sized print server makes it easy to share a USB printer with users on your network. It’s the ideal solution for home or small office networks.

Reliable, cost-efficient network printing

Enjoy cost-efficient network printing for multiple users. The USB 10/100 Mbps print server lets you share one USB printer with multiple users on your network, instead of having to buy separate printers for each individual workstation.

Place your shared printer in a convenient location

With web-based management, you can set up and monitor the printer server through a web browser, so you can place your printer at any convenient shared location - there’s no need to put your printer next to your computer. You can send print jobs to another user in your home or office, or even to a printer in another country.

Easy to use and install

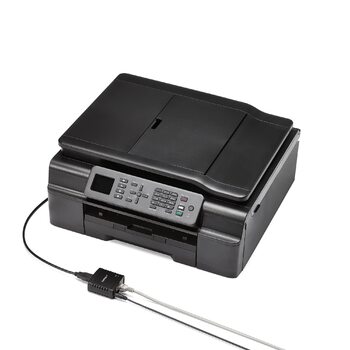

Compact and lightweight, the print server is easy to install with its straightforward installation wizards and remote web-based management. You simply use a USB cable to connect the print server to your printer’s USB port, then use an RJ45 networking cable to connect it to the rest of your network.

Supports LPR network printing and Bonjour Print Services

The printer server supports the Line Printer Remote (LPR) protocol which enables Internet printing. It also supports Bonjour Print Services, making it easier to find and configure printers on your network.

(PM1115U2)

This item comes with a 24 months warranty

Reliable, cost-efficient network printing

Performance
Auto MDIX: Yes
Full Duplex Support: Yes
Jumbo Frame Support: 9K max.
Max Distance: 100 m / 330 ft
Maximum Data Transfer Rate: 100 Mbps
Remote Management Ability: Yes
Supported Protocols: LPR

Physical Characteristics
Color: Black
Material: Plastic
Product Height: 2.3 cm [0.9 in]
Product Length: 53 mm [2.1 in]
Product Width: 54 mm [2.1 in]
Weight of Product: 62 g [2.2 oz]

Power
Center Tip Polarity: Positive
Input Current: 0.25
Input Voltage: 100 - 240 AC
Output Current: 1A
Output Voltage: 5 DC
Plug Type: H
Power Consumption (In Watts): 2
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 10/100Mbps Ethernet to USB 2.0 Network LPR Print Server

Software
OS Compatibility: Windows® XP, 7, 8 / RT, 10
Windows Server® 2003, 2008 R2, 2012
Mac OS® 10.6 to 10.10

Special Notes / Requirements
Note: OS Compatibility refers to the included software only - the Print Server itself can be used without software on most platforms that support network printing
System and Cable Requirements: Printer with USB connection : USB printer cable not included

What's in the Box
Included in Package: quick start guide : RJ45 network cable : software CD : universal power adapter (NA/JP, UK, EU, ANZ) : USB 2.0 network LPR print server

Packaging Information
Shipping (Package) Weight: 326 g [11.5 oz]
Package Width: 14.9 cm [5.9 in]
Package Length: 21.5 cm [8.5 in]
Package Height: 54 mm [2.1 in]

Indicators
LED Indicators: Power : Link : Activity

Hardware
Ports: 1
Industry Standards: Compliant with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX
Chipset ID: EST - EST2862B

Environmental
Storage Temperature: -10°C to 70°C (14°F to 158°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% ~ 90% RH

Connector(s)

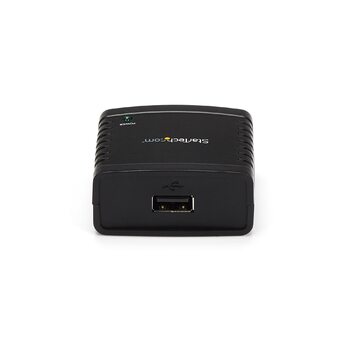

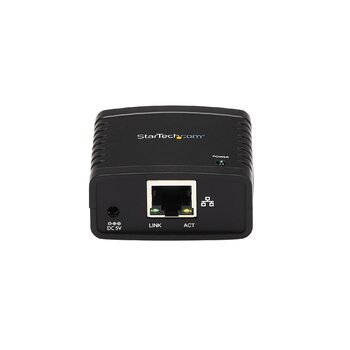

External Ports: USB Type-A (4 pin) USB 2.0 Female : RJ-45 Female

Model # PM1115U2
Barcode # 065030855174
Brand STAR TECH
Shipping Weight 0.3300kg
Shipping Width 0.220m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001730000m3
Type Print Server Adapter
