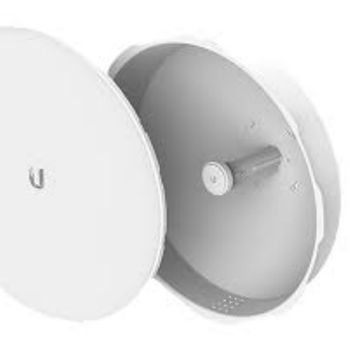

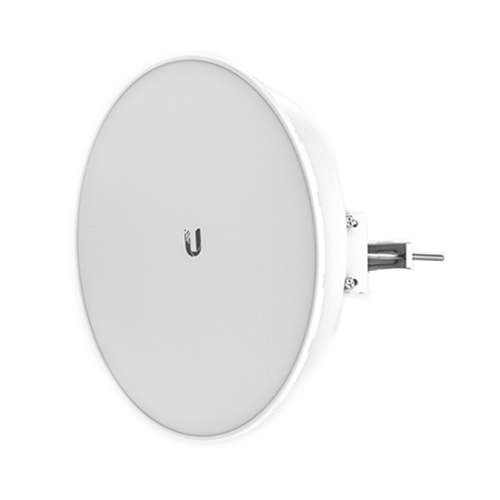

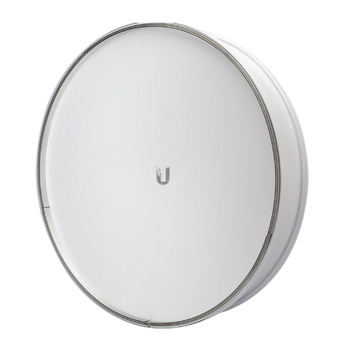

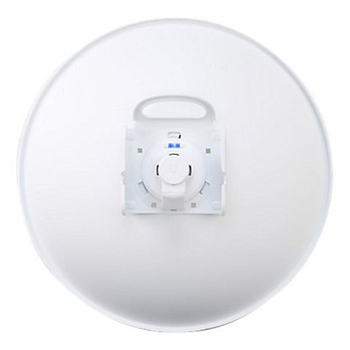

Ubiquiti 5 GHz PowerBeam AC, Gen2, 400 mm, ISO

Ubiquiti 5 GHz PowerBeam AC, Gen2, 400 mm, ISO

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Dimensions
459 x 459 x 261 mm (18.07 x 18.07 x 10.28')
Weight (Mount Included)
3.22 kg (7.10 lbs)
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption
8.5W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range
20 to 26VDC
Gain
25 dBi
Networking Interface
(1) 10/100/1000 Ethernet Port
Processor Specs
MIPS 74Kc
Memory
64 MB
LEDs
Power, Ethernet, (4) Signal Strength
Channel Sizes
PtP Mode - 10/20/30/40/50/60/80 MHz
PtMP Mode- 10/20/30/40 MHz
Enclosure Characteristics
Antenna Feed- Outdoor UV Stabilized Plastic
Dish Reflector- Powder-Coated SPCC

Mounting Pole-Mounting Kit (Included)
