Ubiquiti UniFi Switch Lite 8 PoE - Wall Mount Not Included

Ubiquiti UniFi Switch Lite 8 PoE - Wall Mount Not Included

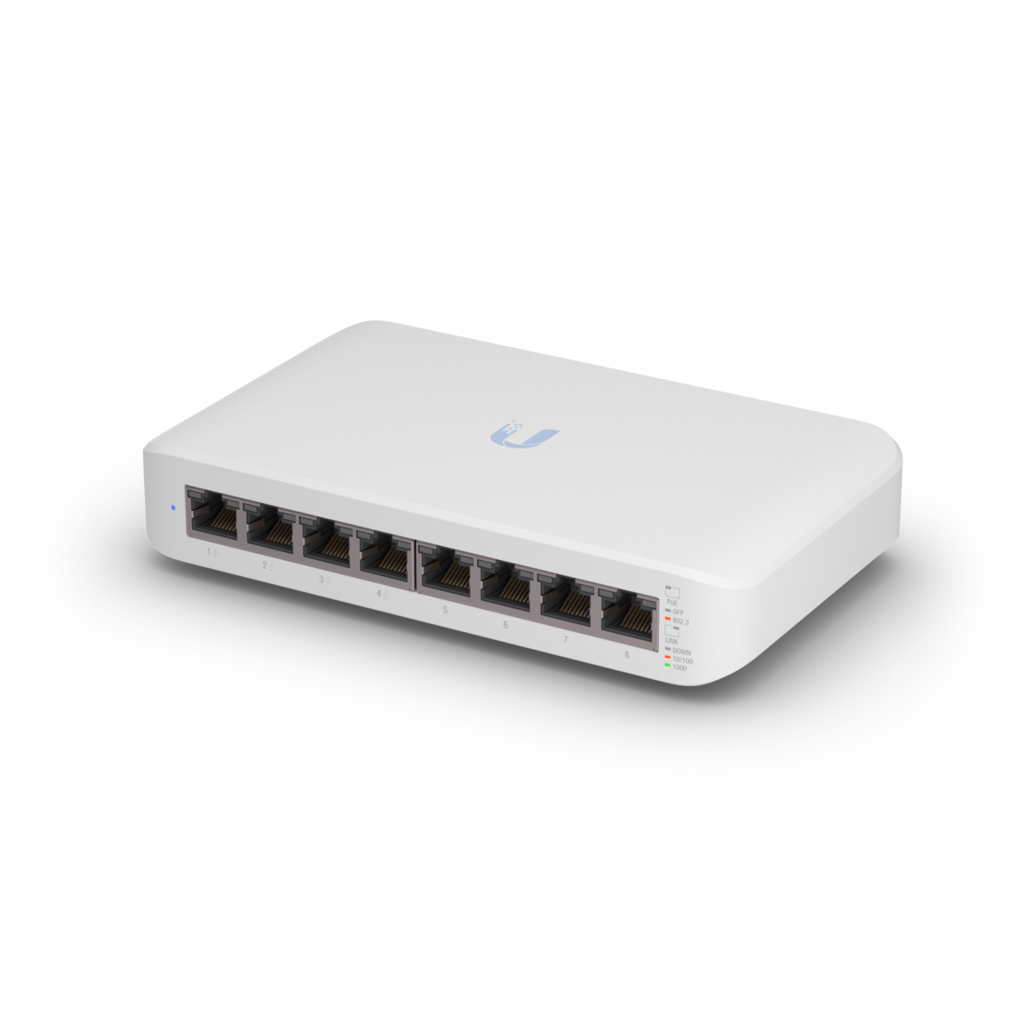

The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features

• (8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
• Managed by UniFi Controller (5.13.10 or later)
• External 60W power adapter

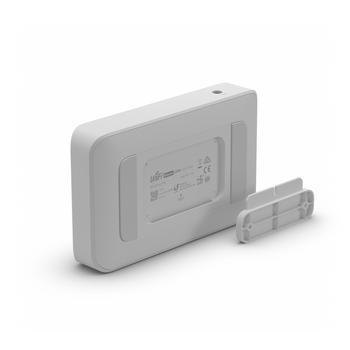

• Wall-mountable (Kit included)

PRODUCT SPECIFICATIONS

Mechanical

• Dimensions: 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25")
• Weight: 450 g (15.87 oz)

Hardware

• Total Non-Blocking Line Rate: 8 Gbps
• Max. Power Consumption: 8W
• Power Method: 54VDC, 1.1A Power Adapter
• Power Supply: External 54V/60W Power Adapter
• Supported Voltage Range: DC 50V to 57V
• Networking Interfaces: (8) 10/100/1000 Mbps Ethernet RJ45 Ports
• PoE Interfaces: (4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
• Mangement Interface: Ethernet In-Band
• Max. PoE+ Wattage per Port by PSE: 30W
• Modes: SMB Layer 2 PoE Gigabit Ethernet Switch
• Operating Temperature: -15 to 40° C (5 to 104° F)
• Operating Humidity: 10 - 90% Noncondensing
• Certifications: CE, FCC, IC
