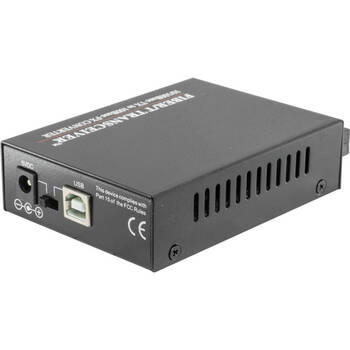

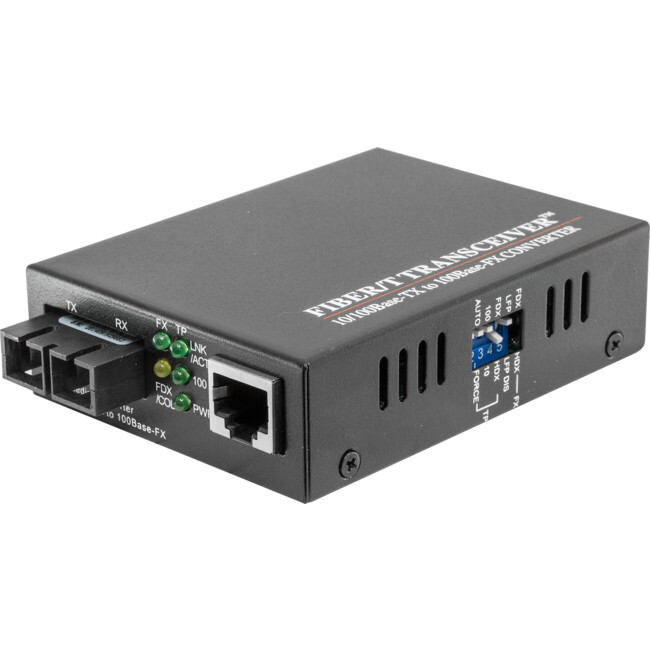

100M FIBRE MEDIA CONVERTER 10/100M SM DUAL FIBRE SC 20KM

100M FIBRE MEDIA CONVERTER 10/100M SM DUAL FIBRE SC 20KM

10/ 100M Fibre Media Converter translates the signal from a twist-pair 10/100Base-TX cable to 100Base-FX fibre optic cable, extends data transmission distance from 100m via copper cables to 20km by fibre optic cable, which supports LFP (Link Fault Pass-through) function & USB Powered.

Features
10/ 100Mbps auto-sensed, easily upgrade
Full-duplex and half-duplex auto-sensed
MDI/ MDI-X Auto-Negotiation
10/ 100Mbps store-and-forward
100Mbps cut-through transmission
Packet size up to 1518bytes
Supporting VLAN/ VoIP/QoS packets
Support flow control and reduce broadcast packets
Supporting STP to form a redundant network
Extremely low power consumption, low heat and stable performance
Providing Desktop, Wall-mounted, Chassis and DIN-rail installation
LFP (Link Fault Pass-through) Function
External Power Adapter or USB power source
DIP Switch to set configurations
Supporting extra-long packets up to 1600 bytes

Applications
Network Communication
FTTH/ FTTB/ FTTx
ISP Backhaul Networking
