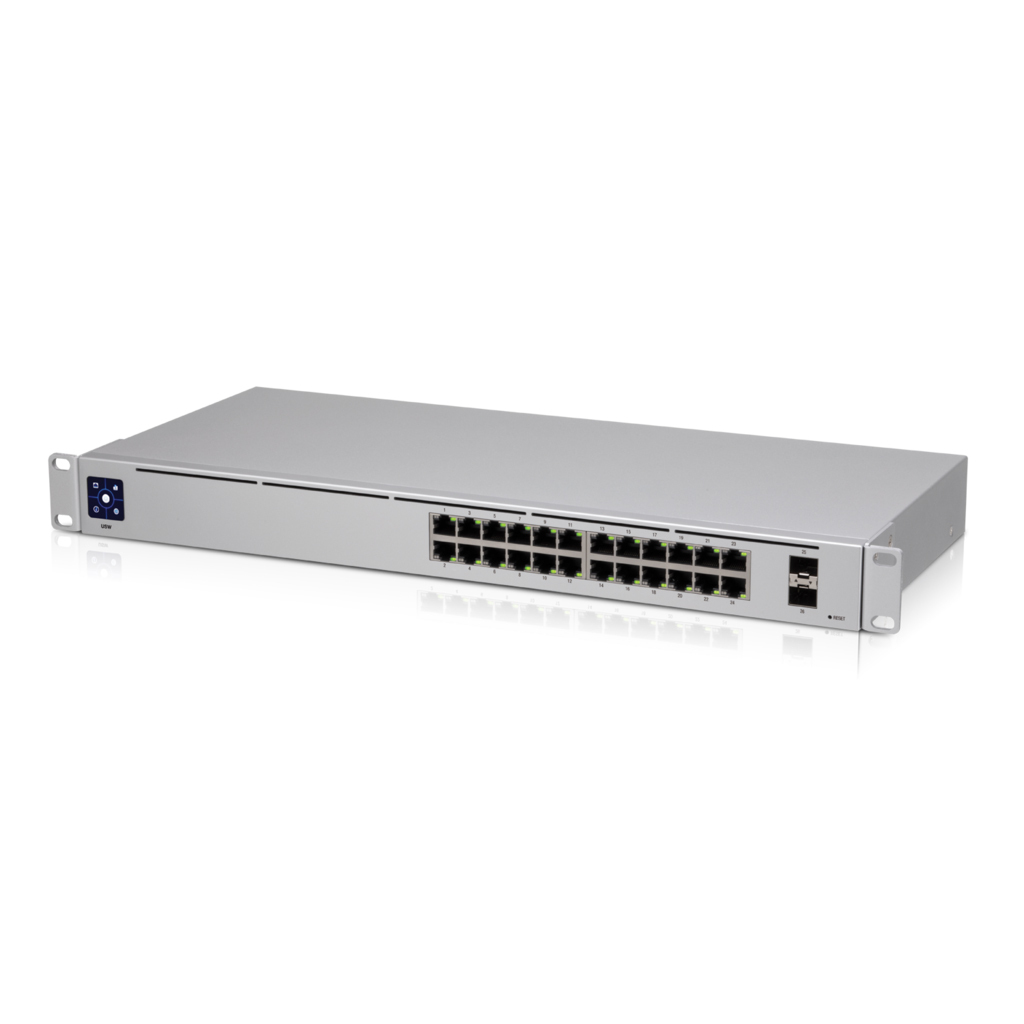

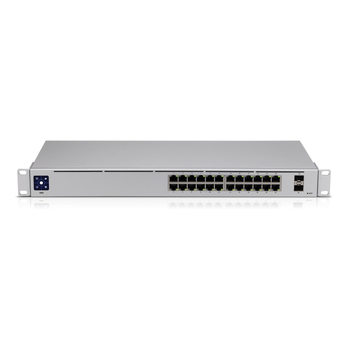

Ubiquiti UniFi 24 port Managed Gigabit Switch - 24x Gigabit Ethernet Ports, with 2xSFP - Touch Display - Fanless - GEN2

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti UniFi 24 port Managed Gigabit Switch - 24x Gigabit Ethernet Ports, with 2xSFP - Touch Display - Fanless - GEN2

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3' touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features:
(24) Gigabit Ethernet Ports
(2) Gigabit SFP Ports
1.3' color touchscreen for status information
Managed by UniFi Network Controller

Product Specifications
USW-24
Dimensions 442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72')
Weight
With Rackmount Brackets 2.70 kg (5.95 lb)
2.79 kg (6.15 lb)
Interfaces 0
Interfaces
Networking

Management
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Ethernet In-Band
Power Method 100-240VAC, 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 36W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption 25W
LEDs
RJ45 Data Ports
SFP Data Ports
Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC

(NHU-USW-24)

This item comes with a 12 months warranty

Model # NHU-USW-24
Barcode # 810010071415
Brand UBIQUITI
Shipping Weight 3.6000kg
Shipping Width 0.520m
Shipping Height 0.120m
Shipping Length 0.310m
Shipping Cubic 0.019344000m3
Type Ethernet Switch
