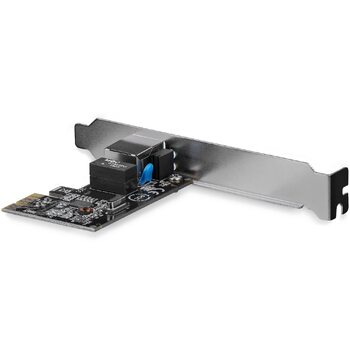

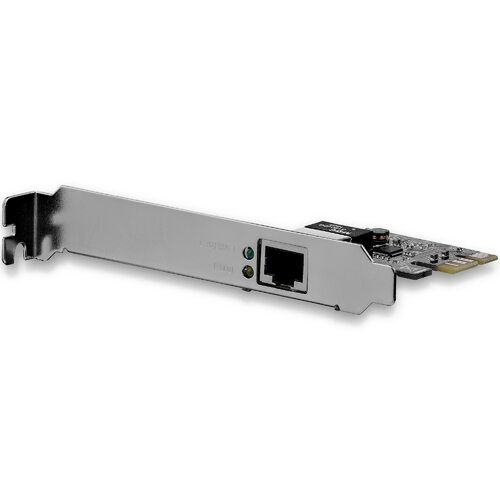

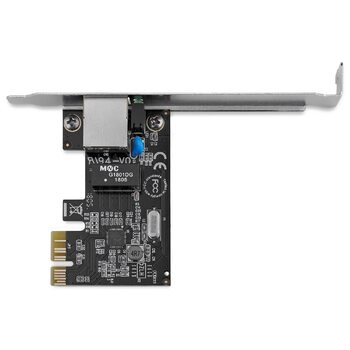

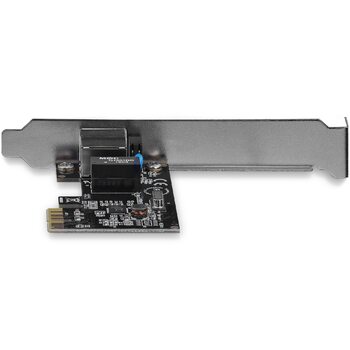

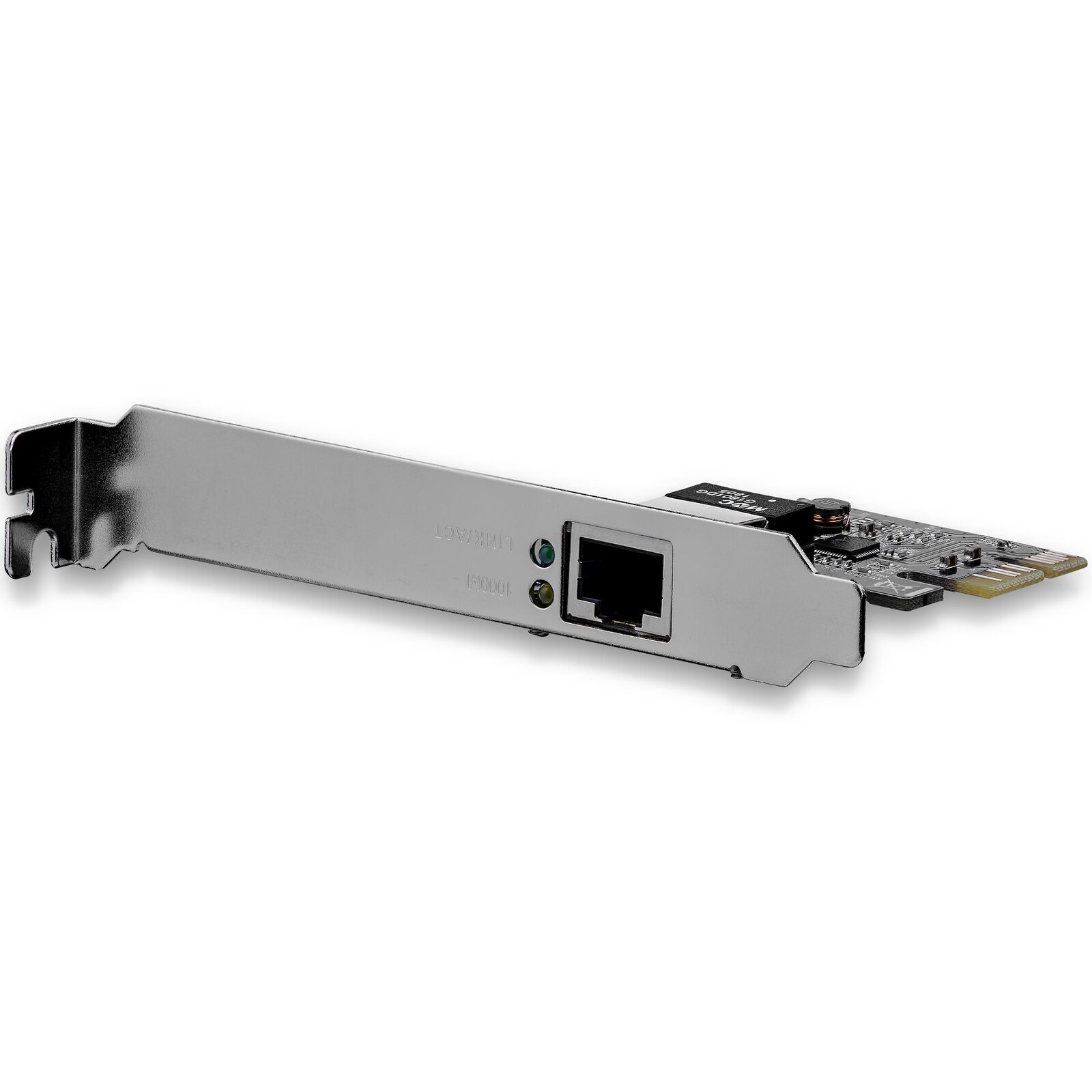

1Port PCI Express Gigabit Server Adapter - PCIe Network Card

This item comes with a 24 months warranty

1Port PCI Express Gigabit Server Adapter - PCIe Network CardThe ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface. Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance. Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.

Packaging Information
Package Width: 14.2 cm [5.6 in]
Shipping (Package) Weight: 126 g [4.4 oz]

Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Jumbo Frame Support: 9K max.
Maximum Data Transfer Rate: 1000 Mbps
MTBF: 376,212 Hours
Promiscuous Mode: Yes
Supported Protocols: CSMA/CD

Physical Characteristics
Material: Steel
Product Height: 1.8 cm [0.7 in]
Product Length: 67.9 mm [2.7 in]
Product Width: 12 cm [4.7 in]
Weight of Product: 38 g [1.3 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com 1 Port PCIe Gigabit PCIe Network Card - NIC Adapter

Software
OS Compatibility: Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS X® 10.6 to 10.9
Linux 2.4.x to 4.11.x LTS Versions Only

Special Notes / Requirements
System and Cable Requirements: Available PCI Express expansion card slot

What's in the Box
Included in Package: Gigabit Ethernet PCI Express Card : Instruction Manual : Low Profile Bracket

Packaging Information
Package Length: 17.1 cm [6.7 in]
Package Height: 32 mm [1.3 in]

Indicators

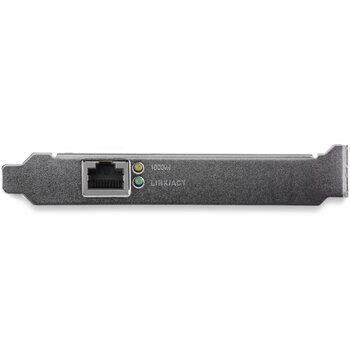

LED Indicators: Link/Activity (Green) : Gigabit Detect (Yellow)

Hardware
Ports: 1
Interface: RJ45 (Gigabit Ethernet)
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Chipset ID: Realtek - RTL8111H
Card Type: Standard Profile (LP bracket incl.)
Bus Type: PCI Express

Environmental
Storage Temperature: 0°C to 100°C (32°F to 212°F)
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Humidity: 10% ~ 90% RH

Connector(s)
External Ports: RJ-45 Female
Connector Type(s): PCI Express x1 Male
