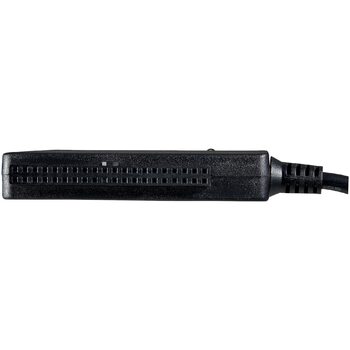

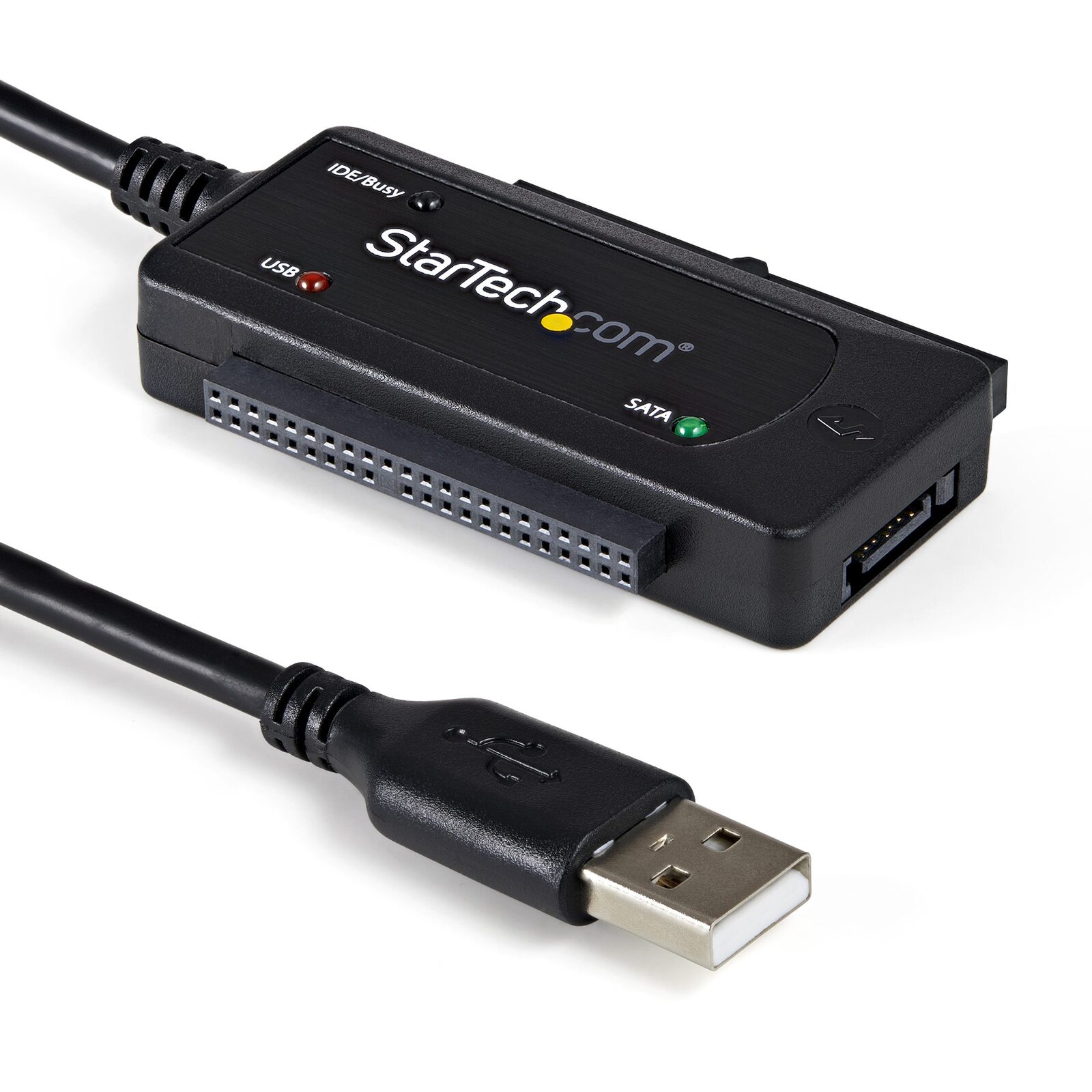

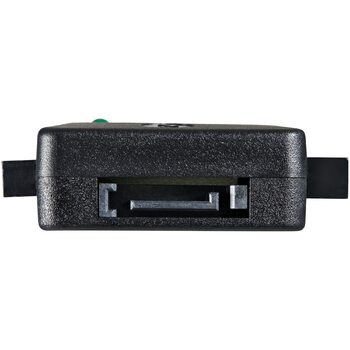

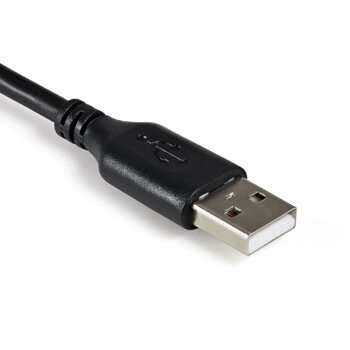

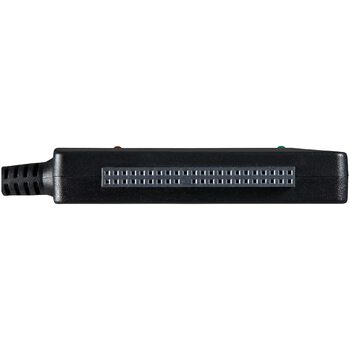

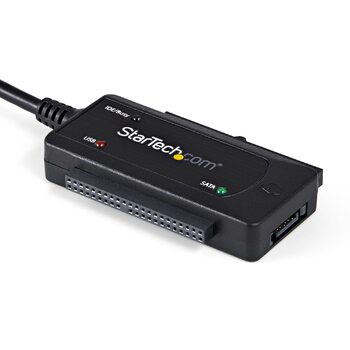

Star Tech USB 2.0 to SATA IDE Adapter

This item comes with a 2 Years warranty

Star Tech USB 2.0 to SATA IDE AdapterThis USB 2.0 to IDE/SATA Adapter Cable connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through USB 2.0. The adapter lets you connect a bare drive with no enclosure, saving time and hassle. The USB 2.0 SATA/IDE Adapter features LED indicators that allow you to easily monitor status and activity updates, and is designed for durability and reliability.

Packaging Information
Package Width  : 14.9 cm [5.9 in]
Shipping (Package) Weight  : 410 g [14.5 oz]

Performance
4Kn Support  : Yes
ATAPI Support  : Yes
Hardware Raid Supported  : No
Maximum Data Transfer Rate  : 480 Mbps
Type and Rate  : USB 2.0 - 480 Mbit/s

Physical Characteristics
Color  : Black
Material  : Plastic
Product Height  : 1.5 cm [0.6 in]
Product Length  : 70 mm [2.8 in]
Product Width  : 43 mm [1.7 in]
Weight of Product  : 51 g [1.8 oz]

Power
Input Current  : 1A
Input Voltage  : 100 - 240 AC
Output Current  : 2A
Output Voltage  : 12/5V DC
Plug Type  : Innovative
Power Consumption (In Watts)  : 24
Power Source  : AC Adapter Included

Prominence
Description CDW 75 - 1st Line  : StarTech.com USB 2.0 to SATA/IDE Adapter for 2.5/3.5" SSD/HDD

Software
OS Compatibility  : OS independent; No software or drivers required

Packaging Information
Package Length  : 21.5 cm [8.5 in]
Package Height  : 53 mm [2.1 in]

Indicators
LED Indicators  : USB Link
SATA Detect/Activity
IDE Detect/Activity

Hardware
Number of Drives  : 1
Drive Size  : 2.5in & 3.5in
Compatible Drive Types  : SATA & IDE
Chipset ID  : JMicron - JM20337

Connector(s)
Host Connectors  : USB Type-A (4 pin) USB 2.0 Male
Drive Connectors  : SATA Power (15 pin) Receptacle
SATA (7 pin, Data) Plug
LP4 (4 pin; Large Drive Power) Female
IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female
IDE (40 Pin, EIDE/PATA) Female

Special Notes / Requirements
Note  : Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate.

Rev. B marked units tested with 6TB 4Kn 7200 RPM drive in Mac OS 10.12 and Windows 10

What's in the Box
Included in Package  : instruction manual
power adapter breakout cable
SATA data cable
universal power adapter (NA/JP, UK, EU, AU)
USB 2.0 to SATA/IDE converter
