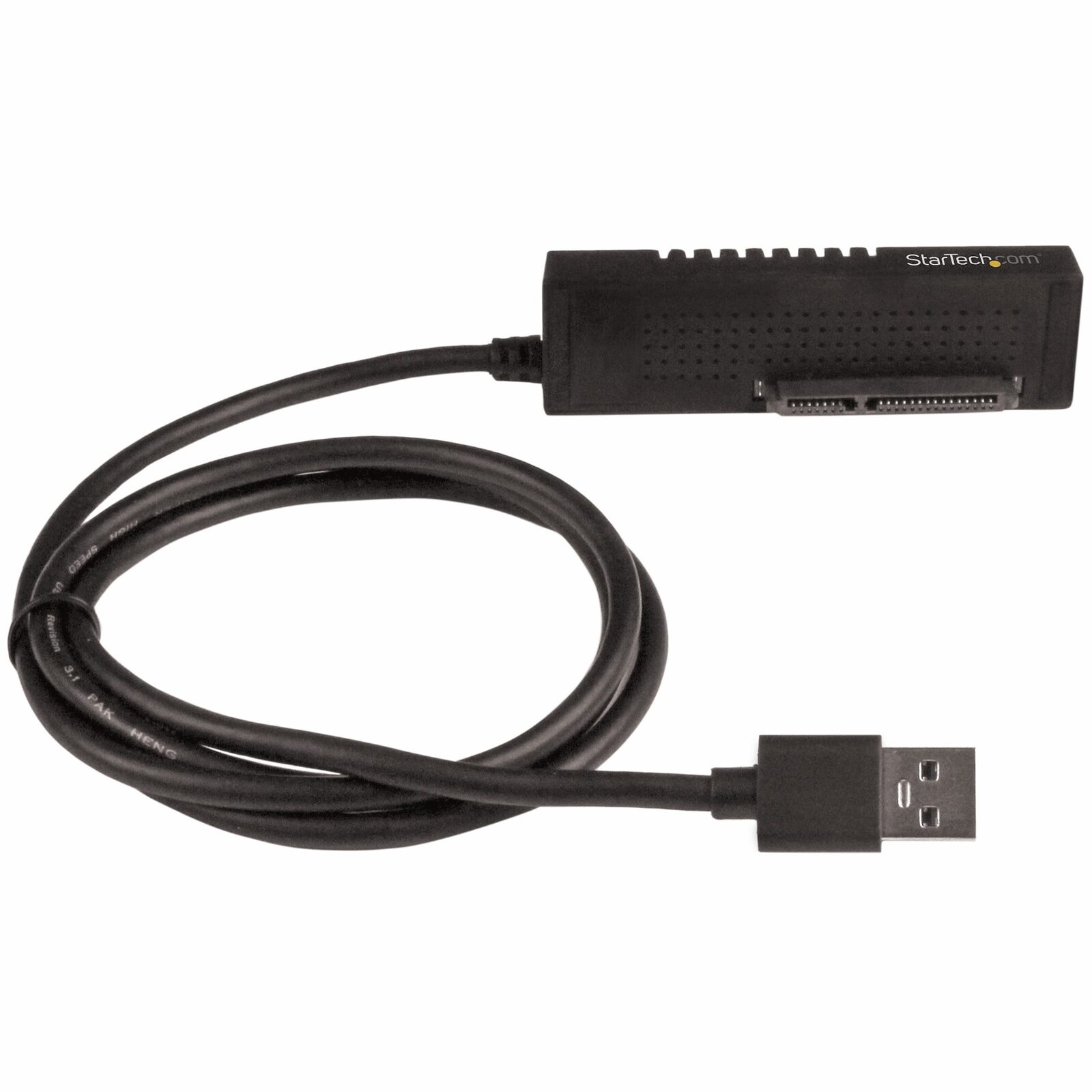

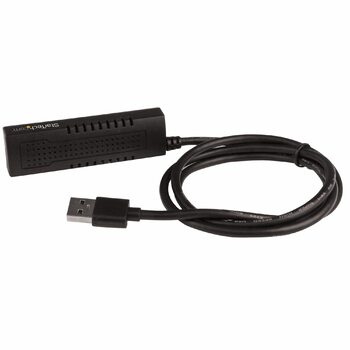

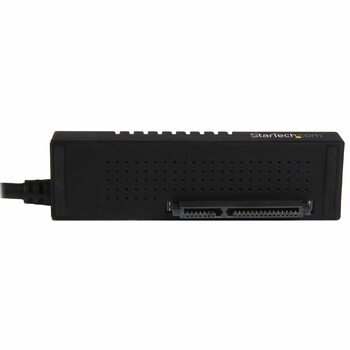

Star Tech USB 3.1 Cable-style Adapter for 2.5 in./3.5 in. SATA drives

This SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through the USB-A port on a USB 3.1 (10Gbps) desktop or laptop.

Faster Transfer Speeds with USB 3.1

The USB 3.1 to SATA adapter gives you greater bandwidth and speed with rates of up to 10Gbps. That’s twice the speed of USB 3.0 and 20x faster than USB 2.0.

You can leverage the high performance of the latest SSDs and HDDs, while alleviating bottlenecks in your data transfers. Plus, you can experience transfer speeds up to 70% faster than conventional USB 3.1, when connected to a computer that supports UASP.

Convenient and Versatile Drive Access

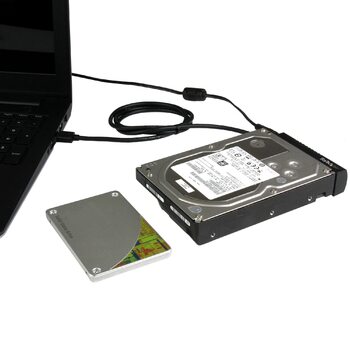

The SATA to USB adapter cable lets you swap between drives so that you can copy or retrieve data from an external 2.5" or 3.5" SATA solid-state drive (SSD) or hard drive (HDD).  The cable is ideal for IT technicians who need fast access to SATA drives.

It’s the perfect solution for:

  • Data migrations
  • Adding drive space
  • Cloning drives
  • Creating disk images
  • Performing backups and data recoveries

Connect from Anywhere

The SATA to USB adapter is a portable solution that includes an integrated cable so you never have to worry about forgetting to bring your cable with you.

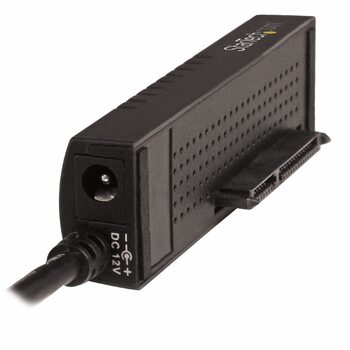

You can easily connect to a 2.5" SSD or HDD using USB power. A universal power adapter is also included for connecting to a 3.5" drive, or for connecting to any 2.5" drive that requires additional power. The adapter is plug-and-play and does not require drivers.

(USB312SAT3)

This item comes with a 2 Years warranty

Faster Transfer Speeds with USB 3.1

Packaging Information
Shipping (Package) Weight  : 323 g [11.4 oz]

Performance
4Kn Support  : Yes
Hardware Raid Supported  : No
Hot Swap Capability  : Yes
Max Drive Capacity  : Currently tested with hard drives up to 6TB

Packaging Information
Package Width  : 17.6 cm [6.9 in]
Package Length  : 14.3 cm [5.6 in]
Package Height  : 51 mm [2 in]

Indicators
LED Indicators  : Power and Activity

Hardware
Number of Drives  : 1
Interface  : USB 3.1 Gen 2
Drive Size  : 2.5in & 3.5in
Compatible Drive Types  : SATA
Chipset ID  : ASMedia - ASM1351
Bus Type  : USB 3.1 Gen 2

Environmental
Storage Temperature  : -20°C to 80°C (-4°F to 176°F)
Operating Temperature  : 0°C to 60°C (32°F to 140°F)
Humidity  : 0% ~ 80% RH

Connector(s)

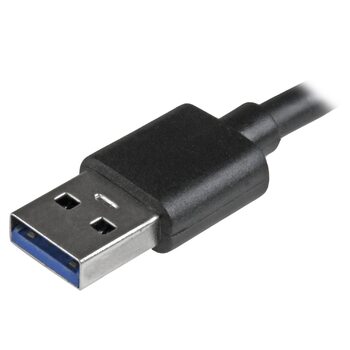

Host Connectors  : USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Male
Drive Connectors  : SATA Data & Power Combo (7+15 pin) Receptacle

Performance
Maximum Data Transfer Rate  : 10 Gbps

Power
Plug Type  : M
Power Consumption (In Watts)  : 24
Power Source  : AC Adapter Included

Prominence
Description CDW 75 - 1st Line  : StarTech.com SATA to USB Cable - USB 3.1 10Gbps - SATA 2.5 / 3.5" SSD HDD

Software
OS Compatibility  : OS independent; No software or drivers required

Special Notes / Requirements
Note  : Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.

What's in the Box
Included in Package  : quick start guide
universal power adapter (NA,UK,EU,ANZ) (94mm cable length)
USB 3.1 to SATA adapter for 2.5in/3.5in SSD/HDD

Performance
TRIM Support  : Yes
Type and Rate  : SATA III (6 Gbps)
USB 3.1 Gen 2 - 10 Gbit/s
UASP Support  : Yes

Physical Characteristics
Color  : Black
Material  : Plastic
Product Height  : 1.5 cm [0.6 in]
Product Length  : 85 mm [3.3 in]
Product Width  : 14 mm [0.6 in]
Weight of Product  : 57 g [2 oz]

Power
Center Tip Polarity  : Positive
Input Current  : 0.6 A
Input Voltage  : 100 - 240 AC
Output Current  : 2.0 A
Output Voltage  : 12V DC

Model # USB312SAT3
Barcode # 065030863797
Brand STAR TECH
Shipping Weight 0.3200kg
Shipping Width 0.140m
Shipping Height 0.050m
Shipping Length 0.180m
Shipping Cubic 0.001284000m3
Type Adapter
